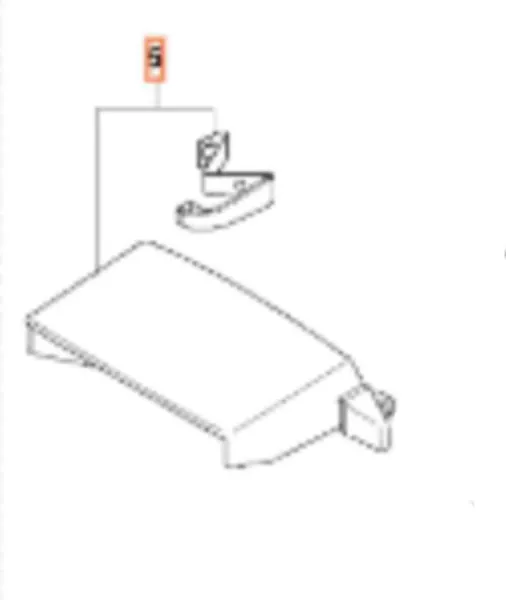

Contact Plate / Charging Plate (Brose) for G2 charging station – 5053477-01
This genuine contact plate provides a reliable charging contact for the Husqvarna Automower G2 charging station (Brose contact plates). Ideal if the mower does not charge, docks inconsistently, or the contacts are worn/corroded.
- Genuine Husqvarna spare part (Brose contact plates)
- Typical issues: not charging / intermittent contact / burnt contacts
- Compatible with multiple part-number variants incl. EAN
- Please verify station version and connection type (screw connection)
Technical
- Part group: Charging station & power supply
- Platform/Generation: Automower G2
- Weight: approx. 15 g
- Packing size: 60 x 60 x 3 mm
Installation

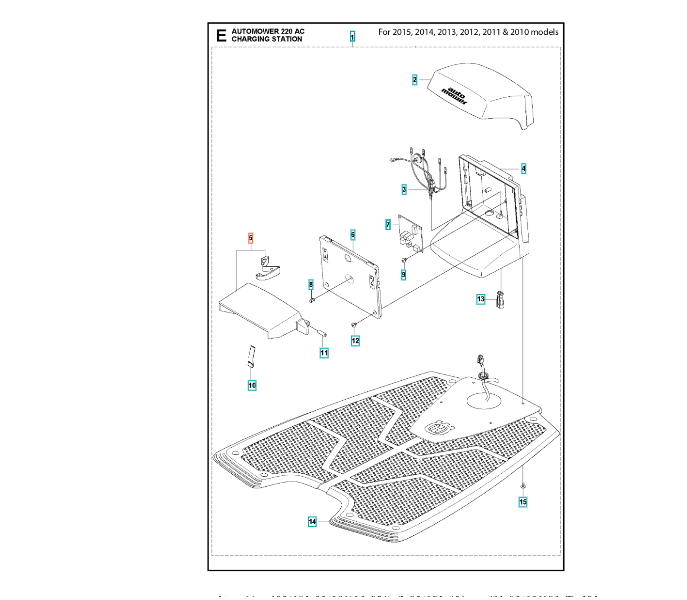

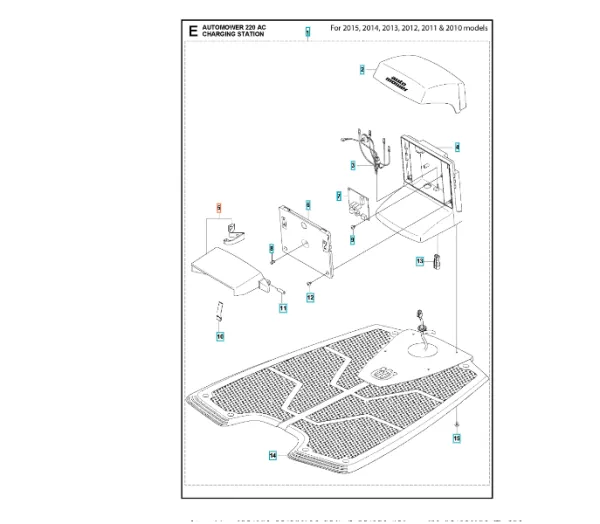

The contact plate sits at the charging contact area of the base station. Clean contact surfaces before installation and ensure a tight fit.
Depending on the station, two contact plates are often required.
- Disconnect power before work
- Ensure clean contact surfaces and tight mounting
- Test charging after installation (proper docking)
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower 220AC – from 2008-02
- Husqvarna Automower 230ACX – from 2008-02
- Husqvarna Automower 260ACX – from 2008-02
- Husqvarna Automower Solar Hybrid – from 2008-02
- Gardena R160 (G2) – from 2008-02

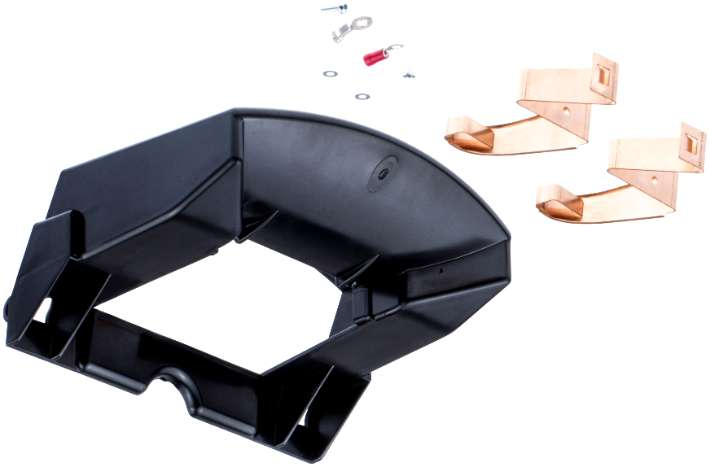

| 5053477-01, 505347701, 50534770, 5053477, 50534770X, 5100597-02, 510059702, AM505347701, AM505347702, EAN 7393080766625 | 505347701 → 505347702 → 510059704 | Brose contact plates, screw connection; some stations are now supplied as an upgrade kit |
Important: Verify the connection type and station version. Many G2 stations use two contact plates.
• Brose contact plate for Automower G2 charging station
• Fixes charging issues caused by worn/corroded contacts
• Compatible with multiple number variants incl. EAN 7393080766625
• Superseded by 505347702; successor/kit: 510059704
• Install with power disconnected; keep contact surfaces clean
