Docking bracket retrofit kit / Console Assy for charging station - 5100597-04
Genuine Husqvarna retrofit kit for the charging station: the docking bracket (console assy) that holds the charging contacts. Ideal when charging contact is unreliable.
- MPN: 5100597-04 (manufacturer no. 510059704)
- Color: black

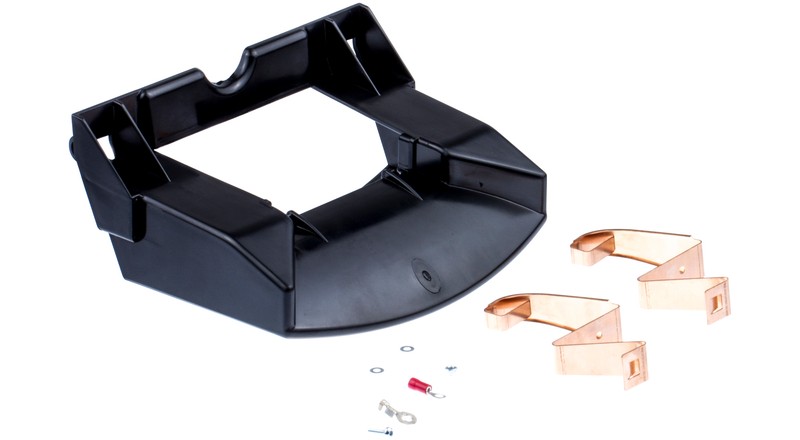

- Kit content: 5100597-02 + 2x 5351374-01 + 1x 5351379-02
- Shipping weight: 0.25 kg
- EAN/GTIN: 7391736304696
Technik
- Function: bracket/console assy for charging contact plates in the station
- Package size (W x L x H): 195 x 90 x 173 mm
Einbau
The bracket sits in the docking area of the charging station and carries the contact plates. Disconnect power before installation.
- Check the contact plate version (standard/Brose depending on station)
- Inspect connector for corrosion and secure fit
- After installation, test charging function and contact pressure
Kompatibilität
| Modell | Baujahre | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
| Husqvarna Automower 220AC | 2007-2015 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Nachrüst-Kit Andockhalter (black) |
| Husqvarna Automower 230ACX | 2007-2014 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Nachrüst-Kit Andockhalter (black) |
| Husqvarna Automower 260ACX | 2009-2011 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Console assy for charging contacts |
| Husqvarna Automower 265ACX | 2012-2015 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Listed e.g. as model year 2015 |
| Husqvarna Automower Solar Hybrid | 2008-2014 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Compatible per parts listings |
| Gardena R160 | 2013-2015 | - 5100597-04
- 510059704
- 510 05 97-04
| - 5100597-02
- 5053477-01
- 5053477-02
- 5351374-01
- 5351379-01
- 5351379-02
- 50553477-01
| Compatible per parts listings |
Wichtig: Verify the charging contact version of your station (standard/Brose) and cross-check the replacement numbers before ordering.
• Genuine Husqvarna console assy / docking bracket for the charging station
• Fits Automower 220AC/230ACX/260ACX/265ACX, Solar Hybrid and Gardena R160
• Replaces several previous part numbers (e.g., 5100597-02, 5053477-01/-02, 5351374-01, 5351379-01/-02)
• Color: black, shipping weight approx. 0.25 kg
• EAN/GTIN: 7391736304696
