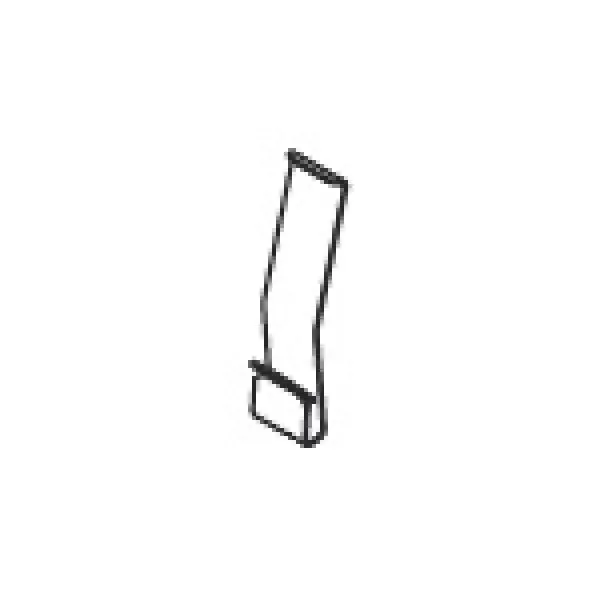

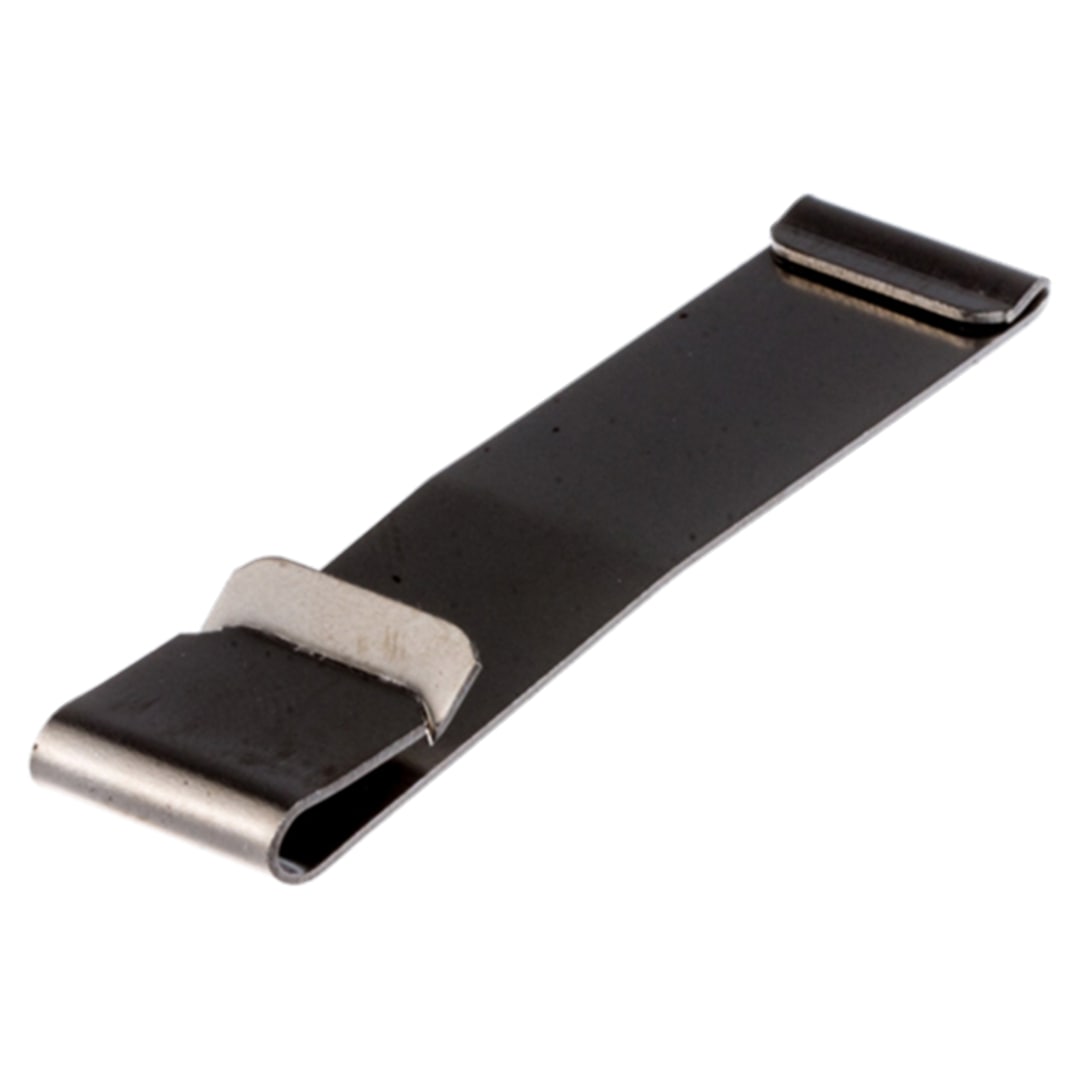

Charging station spring plate / contact set - 5351286-01
Moving contact carrier inside the charging station. Useful if the mower does not charge or charges intermittently due to poor docking contact.
- Genuine Husqvarna spare part: MPN 5351286-01
- Contact carrier/inner unit with plug connectors
- Typical symptoms: not charging, short charge, docking contact issues
- Number variants: 535128601, 5351286-01, 535 12 86-01
Tech
- Part group: charging station & power supply
- Function: stable charging contact during docking
- EAN/GTIN: 7391883407646
Installation
Disconnect power to the charging station and open it. The set sits as a moving inner unit.
Clean contact surfaces and check plug connectors for a secure fit.
- Use only with matching charging-station versions
- Do not pinch cables, lock connectors properly
- Run a test charge after installation
Compatibility
| Modell | Baujahre | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
| Automower 220AC | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Automower 230ACX | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Automower 260ACX | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Automower 265ACX | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Automower Solar Hybrid | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Automower G2 | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
| Gardena R160 | -- | - 5351286-01
- 535128601
- 535 12 86-01
| -- | - moving inner carrier inside the charging station
- contact carrier for charging contacts
|
Important: Please match the MPN and the charging-station version before ordering.
• Moving contact carrier / inner unit for the charging station
• MPN: 5351286-01 (also 535128601 / 535 12 86-01)
• Helps with: not charging, intermittent charging
• Compatibility: see table
