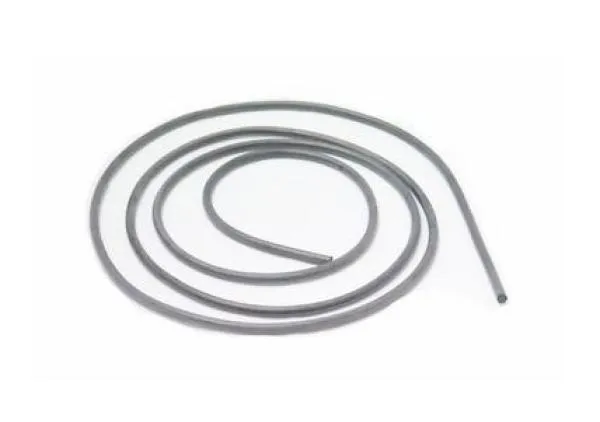

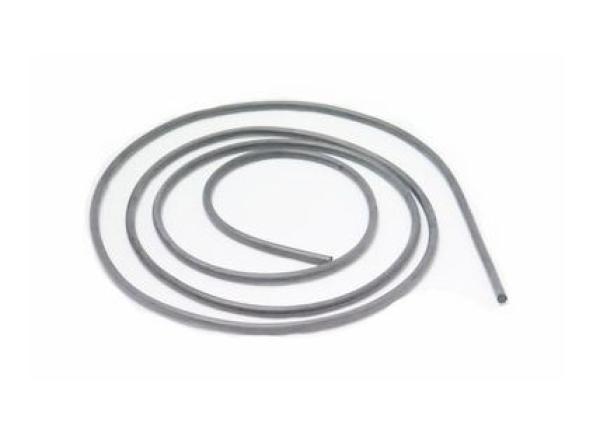

Sealing strip for display/motor unit G3 P1 (MPN 5777536-02)
Foam rubber sealing tape for re-sealing the housing after service work – suitable for Husqvarna Automower 105 and for Automower 305/308.
- Scope of delivery: 1 piece sealing strip
- Used for both motor unit and display/control unit (1× per unit)
- Replaced (confirmed): 5777536-02 / 577753602; superseded by 5748747-04
- Material: foam rubber gasket for housing components
Technical
- Parts group: Chassis & housing parts
- Generation/platform: G3 / P1
- Function: restores housing tightness after opening the mower
Installation
After opening the mower, replace the old sealing strip to keep the housing properly sealed.
Check before ordering:
- For motor + display/control unit you usually need 2 pieces
- For a full sealing service, additional seals (e.g. chassis seal) may be required
- For Automower 305 from model year 2020 (4 wheels) this strip is too short
Compatibility
| Model | Matching part numbers/MPN | Replaces (confirmed) | Note/version |
|---|
- Husqvarna Automower 105 (2016–2023)
- Husqvarna Automower 305 (2011–2016)
- Husqvarna Automower 308 (2013–2015)
- Gardena R38Li/R40Li/R45Li/R50Li (2012–2019)
- Gardena R70Li/R75Li/R80Li (2013–2019)
- Flymo 1200R (2013–2015, 2016–2017)
- McCulloch ROB R600/ROB R1000 (2017) & ROB R600/ROB R800/ROB R1000 (2018)
| 5777536-02, 577753602, 577 75 36-02, 5748747-04, 574874704, 5777536-01, 577753601, 577843601 | 5777536-02 / 577753602 → 5748747-04 (574874704) | 1 piece; housing seal; not suitable for 305 from 2020 (4 wheels) |
Important: Please match model year and part number with your mower's data plate/parts list.
• Foam rubber sealing strip for motor and display/control unit (1 piece)
• Legacy number 5777536-02 / 577753602 – superseded by 5748747-04
• Fits Automower 105 (2016–2023), 305 (2011–2016) and 308 (2013–2015)
• Note: too short for Automower 305 from model year 2020 (4 wheels)
