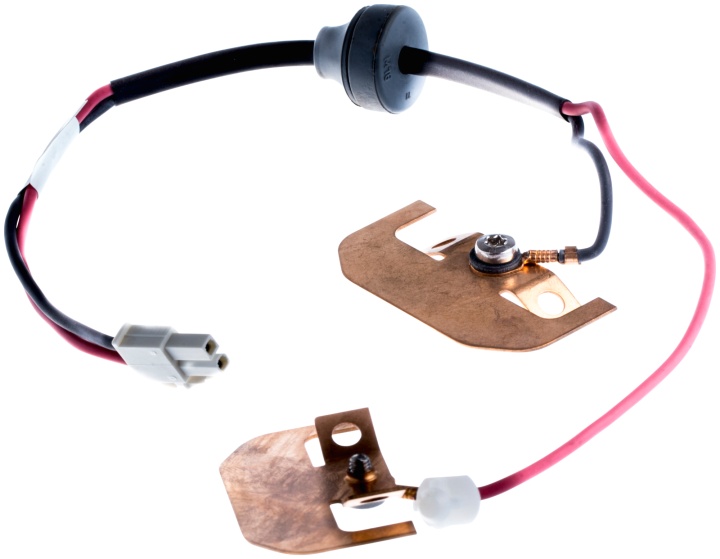

Kabelsatz Ladekontakt/Ladeblech G3-P1 (5744777-01)

Charging contact/plate wiring loom G3-P1 (5744777-01) – 5744777-01

This wiring loom/cable set connects the mower’s charging contacts (charge plate) and helps solve charging issues caused by broken wires or poor contact.

• Fits the G3-P1 platform (e.g. Automower 105/305/308).
• MPN/part number: 5744777-01 (variant 574477701).
• Supersession history: 5744777-03, 5744777-02, 5744777-01; verified replaced by 5341776-01 (534177601).
• Also compatible with selected Gardena/Flymo/McCulloch models.
• Check sealing strips and re-seal the housing properly after opening.

Technical

• Part: charging plate wiring / charging contact cable set.
• Platform: G3-P1.
• Shipping weight: 0.04 kg (40 g).

Installation

Disconnect the battery before replacement and route the loom like the original. Make sure all plugs click in fully.

Typical symptoms: no charging, charging contact fault, intermittent charging.

• Inspect seals/sealing strips for damage.
• Avoid pinching the cable; prevent sharp bends.
• Test charging function after assembly.

Compatibility

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Husqvarna Automower® 105 – 2016–2023 Husqvarna Automower® 305 – 2011–2015 Husqvarna Automower® 308 – 2013–2015 Gardena® R38Li/R40Li/R45Li/R50Li – 2012–2019 Gardena® R70Li/R75Li/R80Li – 2013–2019 Flymo 1200R – 2013–2018 Flymo Easilife 200/350/500/800 – 2020–2021 McCulloch Rob R600/800/1000 – 2017–2019 McCulloch ROB S400/500/600/800 – 2019–2021	5744777-01, 574477701, 574 47 77-01, 5744777-02, 574477702, 574 47 77-02, 5744777-03, 574 47 77-03, 5889509-01, 588950901, 588 95 09-01, 5889509-02, 588950902, 588 95 09-02, 5341776-01, 534177601, 534 17 76-01, AM-574477702, AM574477702, 5744777, 57447770, 57447770X, 7391883754467	Ersatz durch 5341776-01 (534177601), ersetzt u.a. 5889509-02, 5889509-01, 5744777-03, 5744777-02, 5744777-01	G3/P1, im Roboter (Ladekontakte/Ladeblech), Abdichtung/Dichtungsstreifen prüfen

Important: verify model, model year and part numbers on the component/label; use the supersession list if unsure.

• For charging contacts/charge plate inside the mower (G3-P1).
• Part number/MPN: 5744777-01 (574477701).
• Verified supersessions: 5744777-02/-03, replaced by 5341776-01 (534177601).
• Compatible with Automower 105/305/308 and selected Gardena/Flymo/McCulloch models.
• Check sealing strips/water tightness during installation.
