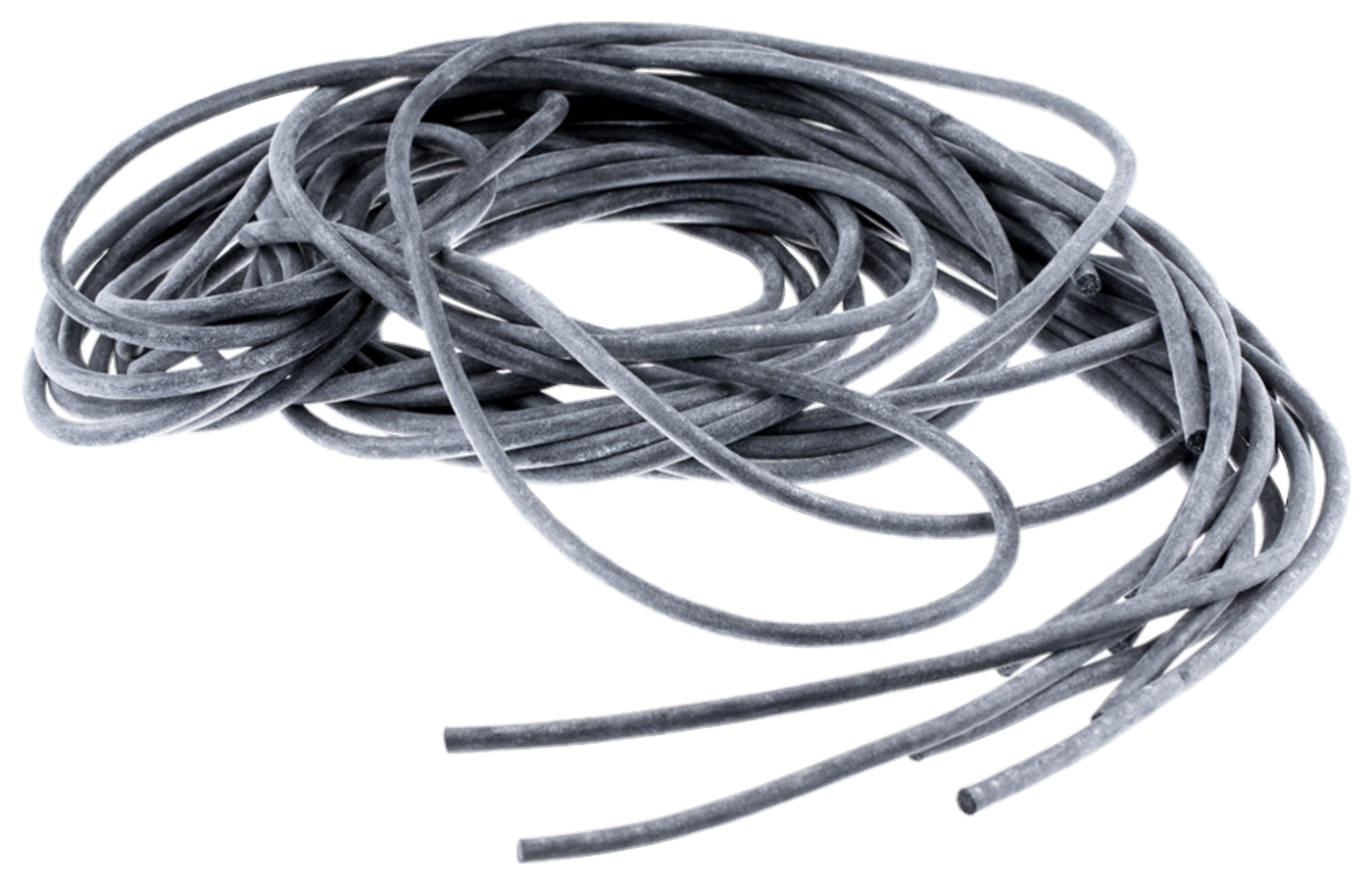

Chassis/Housing Seal Strip (MPN 5778436-02)
Genuine Husqvarna sealing strip to restore the housing seal after opening the mower, e.g. for service work or installing Automower® Connect.
- Fits 3-wheel models such as Automower® 105, 305 (up to 2016) and 308
- Part number variants: 5778436-02 / 577843602
- Length approx. 120 cm, diameter approx. 4 mm
- Helps keep the chassis sealed against moisture and dust
- Note: superseded by 5748747-03 (574874703)
Technical
- Function: housing seal between upper and lower chassis
- Length: approx. 1200 mm
- Diameter: approx. 4 mm
- Weight: approx. 10 g
Installation
Remove the old strip completely and clean the mating surface.
Fit the new strip without stretching and tighten the housing screws evenly.
- Install on a clean and dry surface
- Do not stretch or overlap to avoid leaks
- For Automower® 305, verify the chassis version (3-wheel up to 2016)
Compatibility
| Model | Compatible part no./MPN | Replaces (proven) | Note/version |
|---|
- Husqvarna Automower® 105 (2017→)
- Husqvarna Automower® 305 (bis 2016; 3-Rad)
- Husqvarna Automower® 308 (2014–2015)
- Gardena® R38Li (2015–2017)
- Gardena® R40Li (2014→)
- Gardena® R45Li (2014→)
- Gardena® R50Li (2015→)
- Gardena® R70Li (2014→)
- Gardena® R80Li (2015→)
- McCulloch® ROB R600 / ROB R1000 (2017)
- McCulloch® ROB R600 / ROB R800 / ROB R1000 (2018)
- Flymo® 1200R (2013; 2016–2017)
| 5778436-02, 577843602, 577 84 36-02, 5748747-03, 574874703, 574 87 47-03, 5778436-01, 577843601, 577 84 36-01 | 5778436-01, 5778436-02 | For 3-wheel chassis; too short for Automower® 305 from 2020 (4-wheel). |
Important: Please verify model year and chassis version. For Automower® 305 from 2020 (4-wheel), this strip is reported to be too short.
• Genuine housing/chassis seal strip for 3-wheel models
• MPN 5778436-02 / part no. 577843602
• Length approx. 120 cm, diameter approx. 4 mm
• Superseded by 5748747-03 (574874703)
• For Automower 105, 305 up to 2016, 308 and more
