Schraube M4x8 (Torx) für Messerteller/Messerscheibe – 5351305-02

Product No.:
535130502
ca. 3-4 days ca. 3-4 days (abroad may vary)
Stock:
20 pieces
0,76 EUR

incl. 8.1% tax excl. Shipping costs

Add to wish list
Ask about product
Description

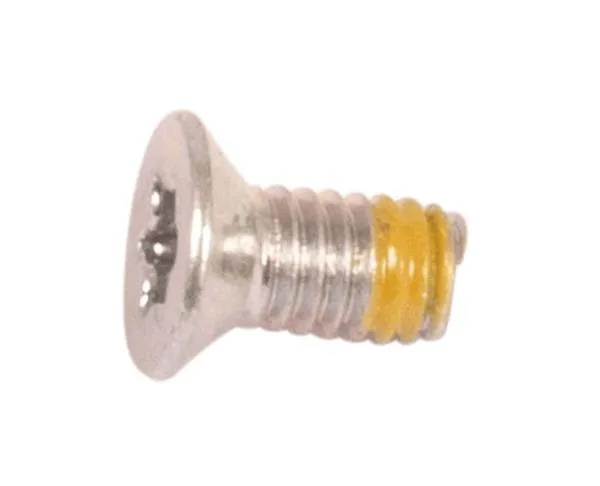

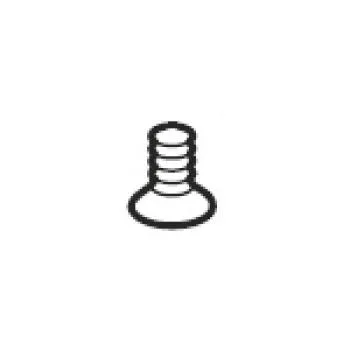

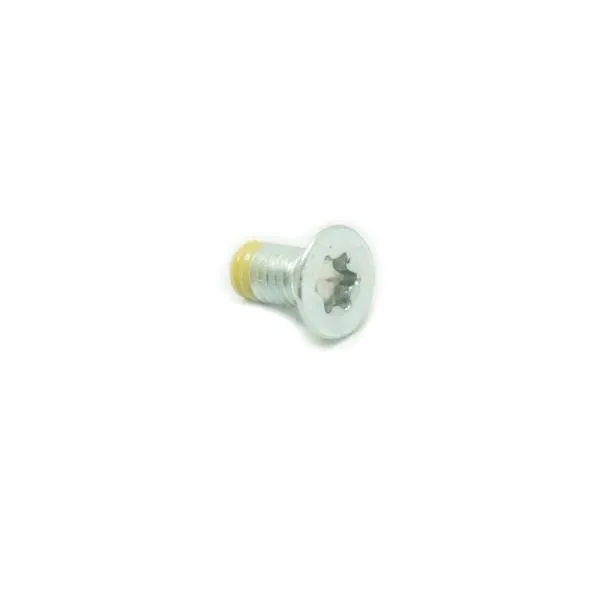

Torx screw M4x8 for cutting disc/cutting equipment – 5351305-02

Genuine Husqvarna countersunk screw to secure the cutting disc to the blade motor. Ideal when the cutting disc screw is loose or missing.

  • M4x8 Torx countersunk head
  • For cutting disc/cutting equipment on the blade motor
  • Replaces 5351305-01 (incl. 535130501)
  • Scope of delivery: 1 screw

Technical

  • Thread: M4
  • Length: 8 mm
  • Type: Torx countersunk screw

Installation

Remove the cutting disc, tighten the screw with the correct Torx bit and check the seat.

Tip: Clean the thread and make sure the cutting disc sits firmly.

  • Use the correct variant for your model year/revision
  • Check the thread insert if damaged
  • Perform a short test run after installation

Compatibility

ModelMatching part numbers/MPNReplacesNote/Version
  • Husqvarna Automower G1 – (2000, 2001, 2002, 2003)
  • Husqvarna Automower G2 – (2003, 2004, 2005, 2006)
  • Husqvarna Automower 105 – (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 210C – (2007, 2008, 2009, 2010)
  • Husqvarna Automower 220AC – (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
  • Husqvarna Automower 230ACX – (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)
  • Husqvarna Automower 260ACX – (2009, 2010, 2011)
  • Husqvarna Automower 265ACX – (2012, 2013, 2014)
  • Husqvarna Automower 305 – (2011, 2012, 2013, 2014, 2015, 2020, 2021, 2022, 2023, 2024, 2025)
  • Husqvarna Automower 308 – (2013, 2014, 2015)
  • Husqvarna Automower 310 – (2015, 2016, 2017, 2018, 2019, 2020, 2021)
  • Husqvarna Automower 310 Mark II – (2022, 2023, 2024, 2025)
  • Husqvarna Automower 315 – (2015, 2016, 2017, 2018, 2019, 2020, 2021)
  • Husqvarna Automower 315 Mark II – (2022, 2023, 2024, 2025)
  • Husqvarna Automower 315X – (2018, 2019, 2020)
  • Husqvarna Automower 315X Limited – (2020)
  • Husqvarna Automower 320 – (2013, 2014, 2015)
  • Husqvarna Automower 330X – (2013, 2014, 2015)
  • Husqvarna Automower 405X – (2021, 2022, 2023, 2024)
  • Husqvarna Automower 415X – (2021, 2022, 2023, 2024)
  • Husqvarna Automower 420 – (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 430X – (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 430XH (USA) – (2019, 2020, 2021, 2022)
  • Husqvarna Automower 435X AWD – (2019, 2020, 2021, 2022, 2023, 2024)
  • Husqvarna Automower 435X AWD NERA – (2025, 2026, 2027)
  • Husqvarna Automower 440 – (2017, 2018, 2019, 2020, 2021, 2022)
  • Husqvarna Automower 450X – (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 450XH (USA) – (2019, 2020, 2021, 2022)
  • Husqvarna Automower 520 – (2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 535 AWD – (2019, 2020, 2021, 2022, 2023, 2024)
  • Husqvarna Automower 535 AWD EPOS – (2025, 2026, 2027)
  • Husqvarna Automower 550 – (2018, 2019, 2020, 2021, 2022, 2023)
  • Husqvarna Automower 550 EPOS – (2021, 2022, 2023, 2024)
  • Husqvarna Automower 550H EPOS (USA) – (2021, 2022)
  • Husqvarna Automower 550H USA – (2019, 2020, 2022)
  • Husqvarna Automower Solar Hybrid – (2008, 2009, 2010, 2011, 2012)
  • Husqvarna Automower Solar Hybrid (Black Metalic Edition) – (2013, 2014, 2015)
  • Husqvarna Solarmower G1 – (1997, 1998, 1999)
  • Gardena R160 (G2) – (2013, 2014, 2015)
  • Gardena R38Li / R40Li / R45Li / R50Li – (2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019)
  • Gardena R70Li / R75Li / R80Li – (2013, 2014, 2015, 2016, 2017, 2018, 2019)
  • Gardena SILENO / SILENO+ (R100Li, R130Li, R160Li) – (2016, 2017, 2018, 2019, 2020, 2021)
  • Gardena smart SILENO / smart SILENO+ – (2016)
  • Flymo 1200R – (2013, 2014, 2015, 2016, 2017, 2018)
  • Flymo Easilife 200/350/500/800 – (2020, 2021)
  • McCulloch Rob R600/800/1000 – (2017, 2018, 2019)
  • McCulloch ROB S400/500/600/800 – (2019, 2020)
5351305-02, 535130502, 535 13 05-02, 015351305025351305-01, 535130501, 535 13 05-01, 7243287-51, 724328751M4x8 for cutting disc/blade motor; depending on model/year a different screw may be used (check serial number/parts list).

Important: Verify model, model year and serial number against the exploded view/parts list.



• Genuine Husqvarna Torx countersunk screw M4x8
• OEM Husqvarna MPN 5351305-02
• Replaces 5351305-01 (incl. 535130501)
• Scope of delivery: 1 piece
