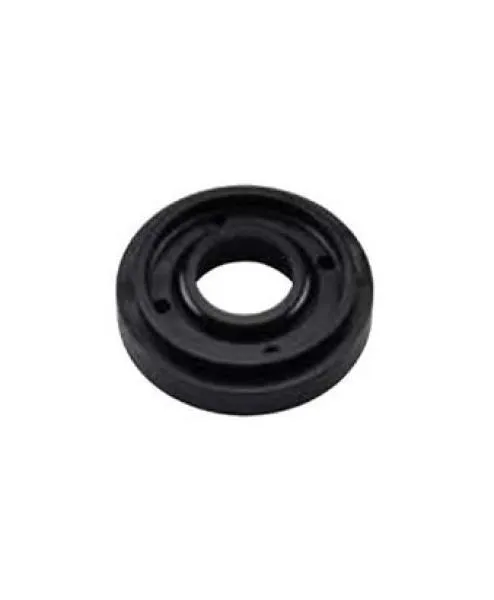

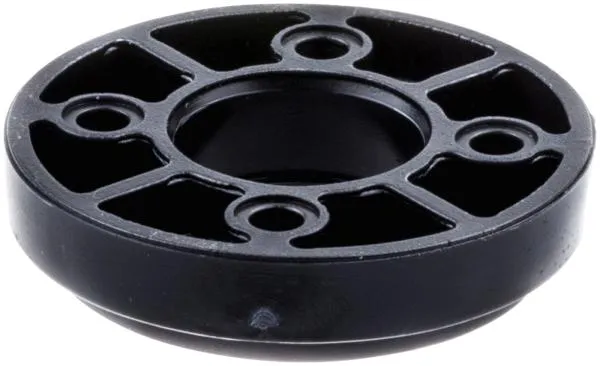

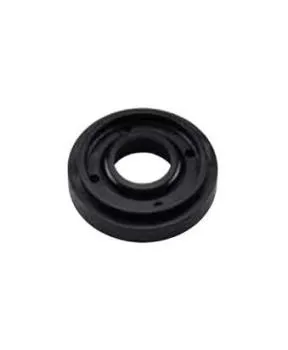

Bearing housing (bearing bracket) for skid plate/blade disc – MPN 5351264-01
Used and tested bearing housing for the cutting system (skid plate/blade disc) on many Husqvarna Automower, Gardena and Flymo models. Helpful when the seat is worn or the bearing has play/noise.
- Scope of delivery: 1x bearing housing (no ball bearings)
- Designed for two bearings
- Part numbers: 535126401 / 5351264-01
- Fits Automower G2/G3 and 220AC, 230ACX, 305, 308, 320, 330X
- Used part: cleaned, checked, ready to install
Technical
- MPN: 5351264-01
- Article number: 535126401
- EAN: 7391883407530
- Shipping weight: 0.01 kg
Installation
Press the bearings into the housing by hand or with a flat support. Do not use a vise or tools that can crack the housing.
Note: the second bearing may protrude about 1–1.5 mm; this is normal.
- Match model and year before purchase
- For Automower 305 up to 2016, check the 3-wheel version
- Ensure a clean, stress-free fit
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower G1 – 2003
- Husqvarna Automower G2 – 2003–2006
- Husqvarna Automower 210C – 2008–2010
- Husqvarna Automower 220AC – 2007–2015
- Husqvarna Automower 230ACX – 2007–2014
- Husqvarna Automower Solar Hybrid – 2008–2014
- Husqvarna Automower 305 – 2013–2015 (bis 2016 3-Rad-Version prüfen)
- Husqvarna Automower 308 – 2013–2015
- Husqvarna Automower 320 – 2013–2015
- Husqvarna Automower 330X – 2013–2015
- Flymo 1200R – 2013
- Gardena R160 – 2013–2015
- Gardena R70Li – 2013–2015
- Gardena R80Li – 2015
- Gardena R50Li – 2015
- Gardena R45Li – 2013–2015
- Gardena R40Li – 2013–2015
- Gardena R38Li – 2015
| 5351264-01, 535126401, 535 12 64-01, AM-535126401 | — | Supplied without ball bearings; for skid plate/blade disc; pressing tip: the second bearing can stick out about 1–1.5 mm. |
Important: compare the numbers on your old part. If you are unsure, contact us.
• 1x bearing housing for skid plate/blade disc (no bearings)
• Designed for two bearings; second bearing may protrude 1–1.5 mm
• Part numbers: 5351264-01 / 535126401
• Used & tested, cleaned and checked
