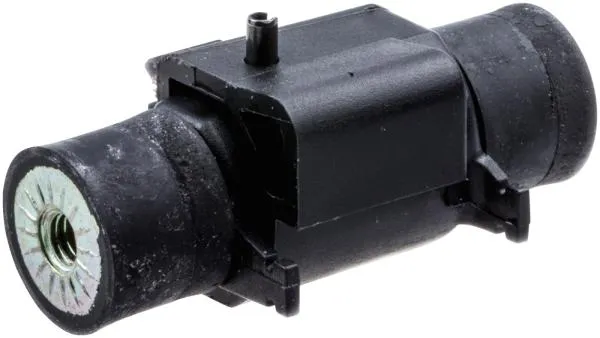

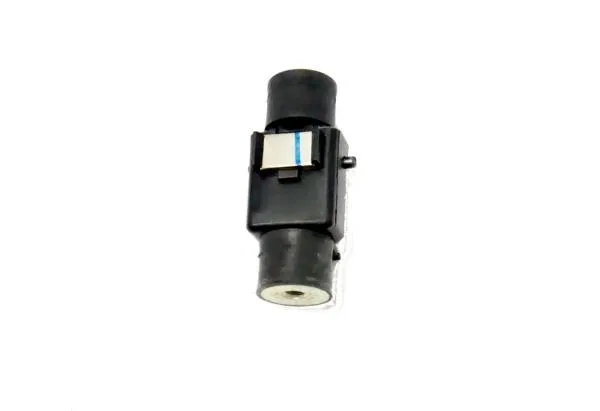

Lift sensor support / bracket (1 piece) for Husqvarna Automower G2/210C/220AC/230ACX/Solar Hybrid – 5441415-01 (5441415-01)
Original Husqvarna lift sensor support/bracket for the front moving cover – fits G2/Series-200 models and Gardena R160.
- Scope of delivery: 1 piece incl. magnet and 2 rubber dampers
- 2 pieces are used per mower
- For G2 housing from 2006 (years see table)
- Can help with “Lift” error caused by play/broken bracket
Technical
- Manufacturer part number: 544141501 / 5441415-01
- GTIN/EAN: 7391883458785
- Type: lift sensor support/bracket (1 piece)
- Weight: 50 g
Installation

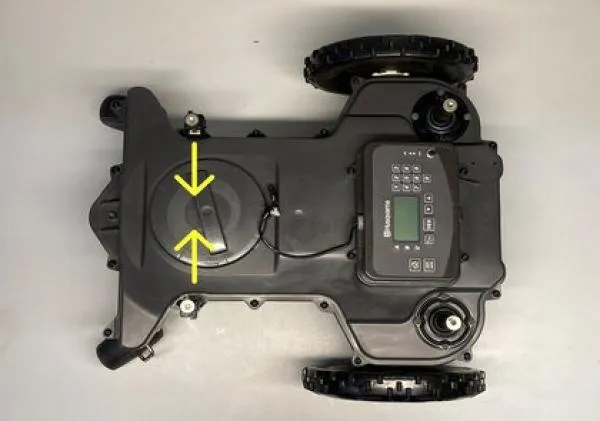

To replace the part the housing must be opened. Make sure the magnet on the lift sensor points towards the mower body.
After opening, check the sealing strips to keep the mower watertight.
- Align magnet correctly (otherwise “Lift” may remain)
- Check both sides: 2 supports are installed
- Not suitable for 260ACX/265ACX
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower® G2 – 2006
- Husqvarna Automower® 210C – 2007–2010
- Husqvarna Automower® 220AC – 2007–2015
- Husqvarna Automower® 230ACX – 2007–2014
- Husqvarna Automower® Solar Hybrid – 2008–2012
- Husqvarna Automower® Solar Hybrid (Black Metalic Edition) – 2013–2015
- Gardena® R160 (G2) – 2013–2015
| 5441415-01, 544141501, 544 14 15-01, 5441415-02, 544141502, 544 14 15-02, 5441415, 54414150, 54414150X, AM544141501 | 544 14 15-02, 544 14 15-01 | 1 Stück; pro Gerät sind 2 Stück verbaut. Magnet zur Karosserie ausrichten. Nicht für 260ACX/265ACX. |
Important: Compare model and year. If unsure, verify the part number on your mower before ordering.
• 1 piece lift sensor support incl. magnet and 2 rubber dampers
• Fits Automower G2/210C/220AC/230ACX/Solar Hybrid and Gardena R160
• Replaces: 5441415-01 and 5441415-02 (verified)
• Note: 2 pieces are used per mower
• Check bracket play and magnet orientation for “Lift” errors
