Husqvarna Automower G2 – STOP Button Microswitch (MPN 577592303)

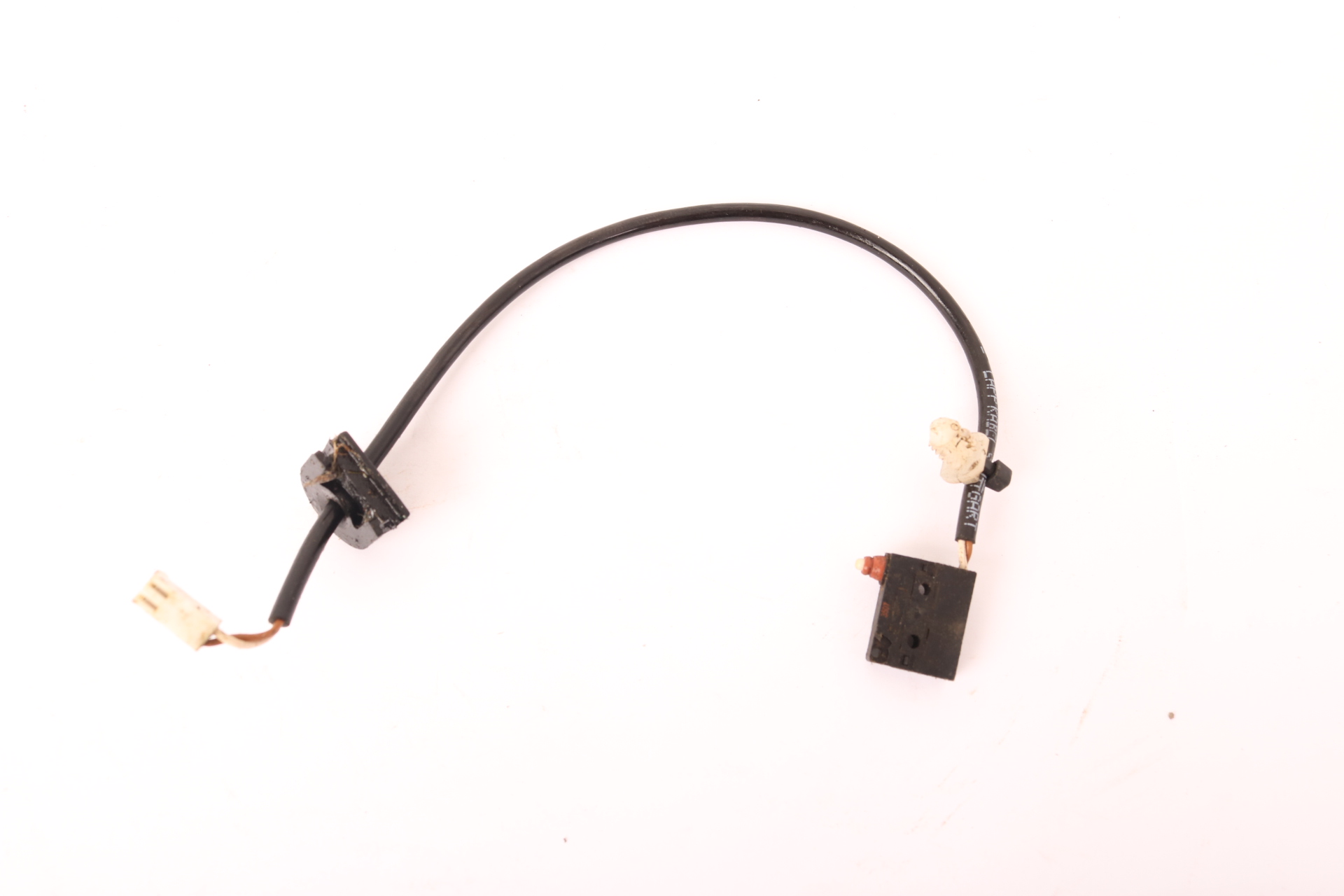

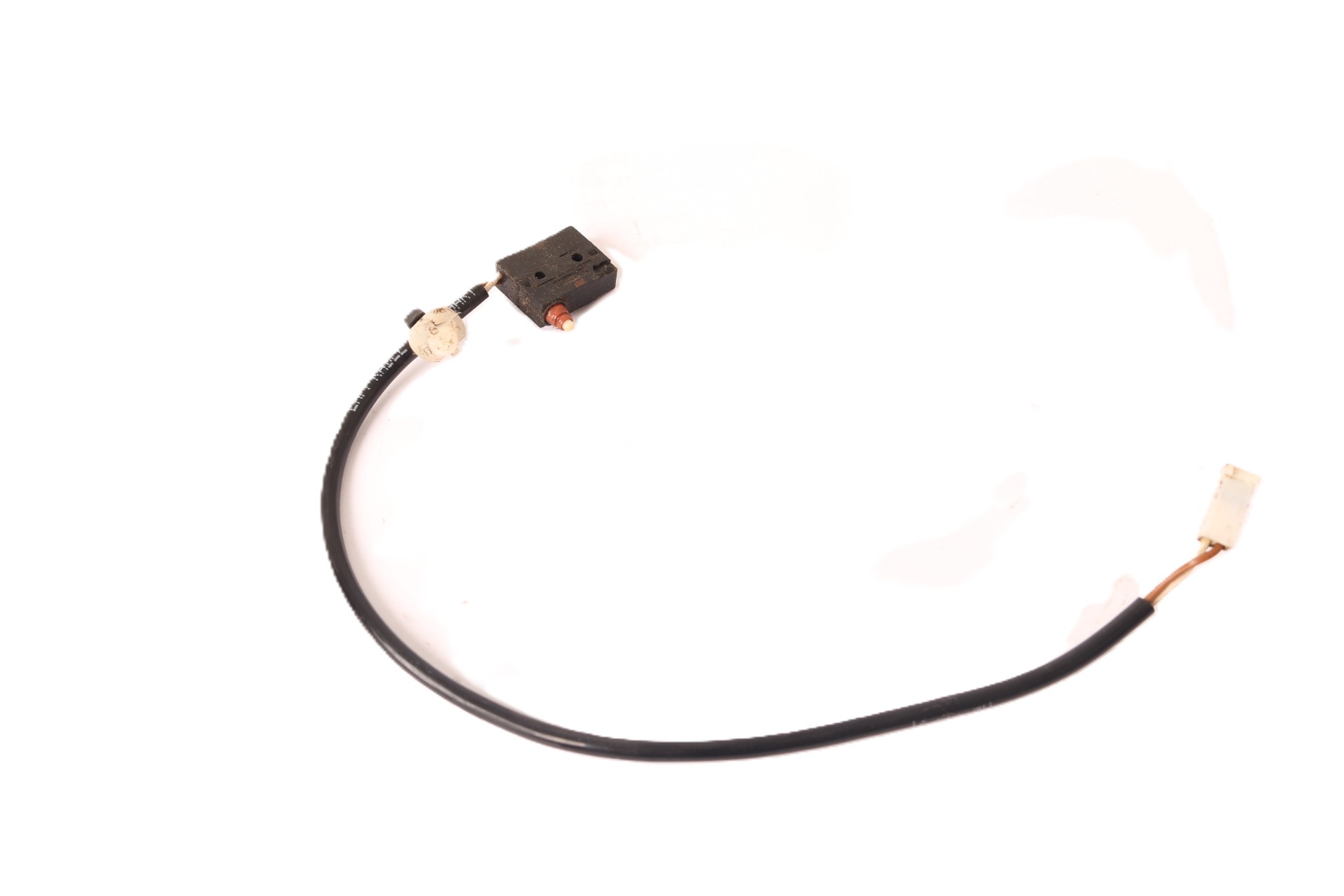

Genuine STOP-button microswitch for all Husqvarna Automower 2nd-generation (G2) models. The switch sits under the red STOP button and, when triggered, immediately interrupts operation for safety.

Compatible G2 models:
Automower 210C, 220AC, 230ACX, 260ACX, 265ACX, Solar Hybrid (incl. Black Metallic Edition).

Part numbers / references:

• MPN: 577592303

• Alternate writings: 577 59 23-03, 5775923-03

• (GTIN: not uniformly assigned / varies by batch)

Condition: used and function-tested; actuation point and contact reliability checked.

Typical failure pattern & diagnosis (field-proven)

• Symptom: mower often stops near the boundary wire and shows “Outside”.

• Root cause: intermittent cable break on the microswitch lead from repeated bending at the same spot. Each time the mower bumps an obstacle, the chassis shifts slightly against the top housing and the STOP-lead gets bent. After thousands of bends, the inner conductor cracks.

• Sequence:

  1. The mower drives up to the property edge; the front loop sensor may already be just outside the boundary.

  2. It bumps an obstacle → the cable kinks → STOP briefly triggers → mower stops.

  3. Housing tension relaxes, STOP returns to normal, mower tries to continue.

  4. Since the front loop sensor is still outside, the mower halts with “Outside”.

Technical data

• Component: STOP microswitch (safety interlock)

• Leads/connector: 2-wire lead with plug (revision-dependent)

• Location: under the red STOP button in the top cover

Scope of delivery

• 1× STOP microswitch 577592303

Highlights

• Genuine Husqvarna G2 spare part – no aftermarket clone

• Tested switching function and repeatability

• Cost-effective, sustainable repair vs. replacing assemblies
