Husqvarna sliding washer / skid plate – 585297001
This used & tested sliding plate (protective disc) sits below the cutting disc and helps protect the blades on Husqvarna Automower models.
- Original part number: 585297001 (5852970-01 / 585 29 70-01)
- Good fix for a bent/dented protective disc and uneven running
- Fit depends on model year/serial number (see compatibility)
- Used & tested part, cleaned and ready to install
Tech

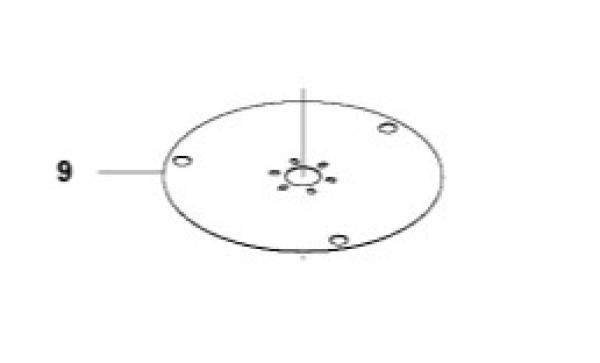

- Part: sliding washer / sliding plate / skid plate
- Diameter: Ø200 mm (may vary slightly by revision)
- Weight: approx. 80 g (shipping weight)
- Successor for later versions/years: 598794801
Installation

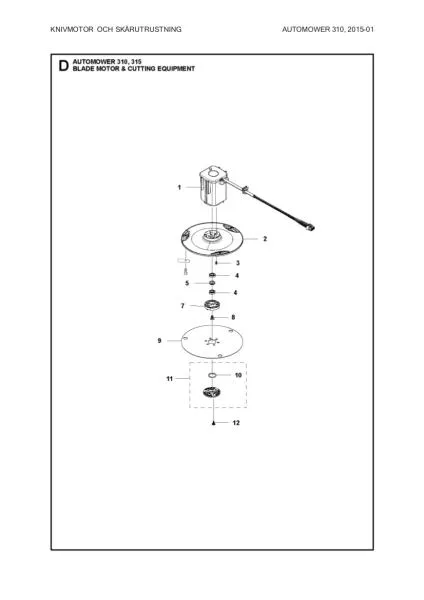

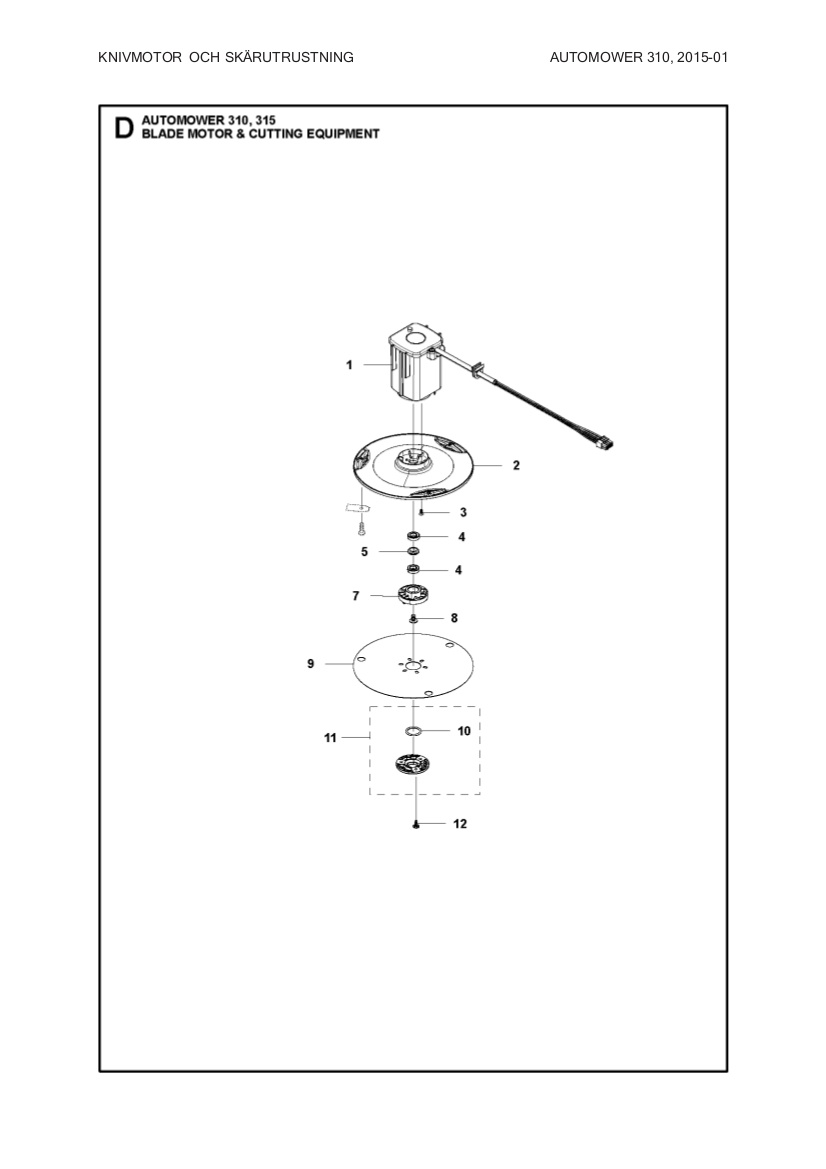

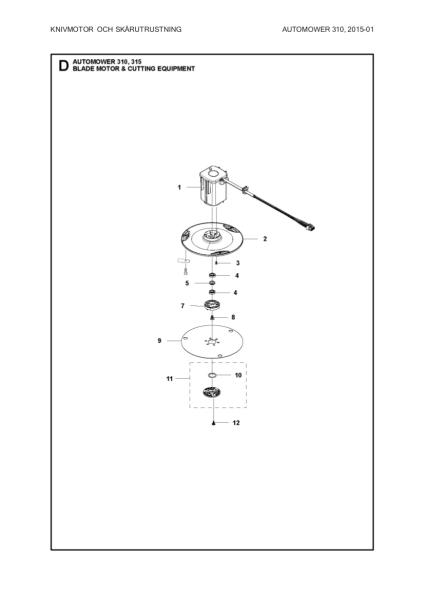

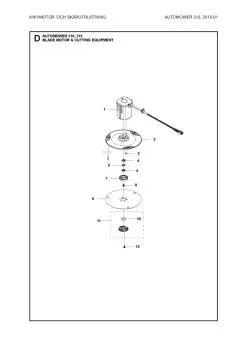

Mounted at the underside of the blade motor/cutting disc assembly.
Please check model year and serial number before ordering.
- 310/315: up to serial number 200602355
- 315X/435X AWD/535 AWD: model year 2019
- Later alternative: 598794801 (often from 2020 models)
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 310 – 2015–2019 / up to SN 200602355
- Husqvarna Automower 315 – 2015–2019 / up to SN 200602355
- Husqvarna Automower 315X – 2018–2019
- Husqvarna Automower 435X AWD – 2019
- Husqvarna Automower 535 AWD – 2019
| 585297001, 5852970-01, 585 29 70-01, AM-585297001, 7393089277108 | 585297, 5852969, 5852970, 5974499, 5987948, 58529700, 59744990, 59879480, 597449901, 597449902, 598794801, 598794802, 598794803, 59879480X, AM585297001, AM597449901, AM597449902, AM598794801, AM598794802, AM598794803, T2547, T2839 | Diameter notes vary by source/revision (200–202 mm); many 2020+ models use 598794801 instead. |
Important: Please verify model year, serial number and diameter variant before purchase.
• Original Husqvarna sliding washer / skid plate for the cutting system
• Helps when the protective disc is bent: smoother, quieter running
• Fit depends on model year/serial number (310/315 up to SN 200602355)
• MPN 585297001 / 5852970-01, used & tested
