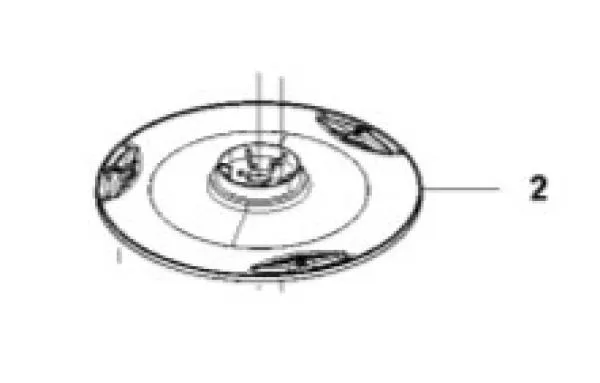

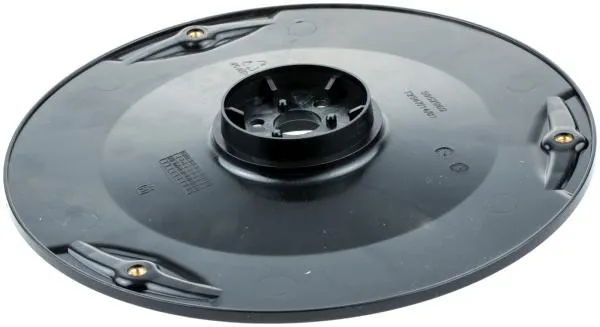

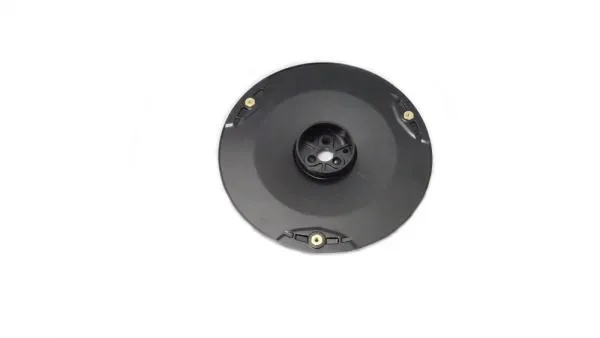

Husqvarna Cutting Disc 585296901
Knife disc/holder as Husqvarna Automower spare parts for Automower 310, 315 and 315X (versions up to ~2018). Used and tested.
- Genuine Husqvarna part: 585296901 (5852969-01)
- For units up to serial 1837050000 (310) / 1837XXXXX (315)
- Good choice if the thread inserts for the blades are damaged
- Shipping weight approx. 0.10 kg
Specs
- Function: mounting plate for Automower blades (blades are screwed in)

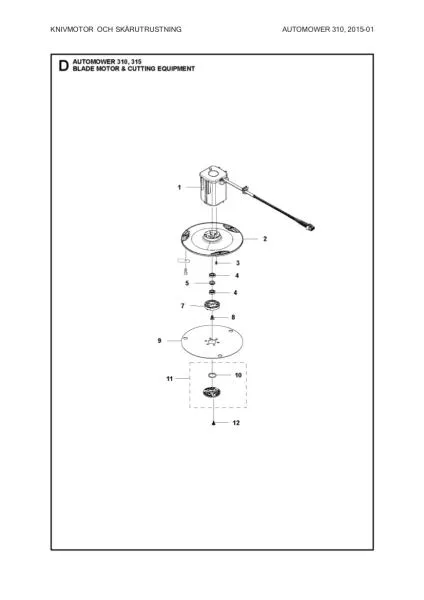

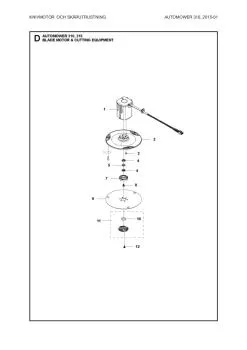

- Parts group: cutting motor & blade system
Installation
Replace from the underside at the cutting motor. Power off, secure the mower and disconnect the battery.
After replacement, check blade seating and smooth rotation.
- Check screws/threads and use the correct blade screws
- Match the correct disc version by model year/serial number (multiple versions exist)
Compatibility
| Model | Compatible part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Automower 310 – 2015-2018
- Automower 315 – 2015-2018
- Automower 315X – 2018
| - 585296901
- 5852969-01
- 585 29 69-01
| — | up to ~2018; 310 up to s/n 1837050000, 315 up to s/n 1837XXXXX |
Important: verify serial number/model year and the disc version before ordering.
• Genuine Husqvarna knife disc/holder for Automower 310/315/315X up to ~2018
• Useful when blade thread inserts are damaged or the disc runs uneven
• Fits up to s/n 1837050000 (310) and up to s/n 1837XXXXX (315)
• Used & tested: cleaned and checked threads and seating surfaces
• Part no. 585296901 (5852969-01)
