Husqvarna Bodenplatte/Ladeplatte Ladestation (mit Kabel) für Automower G2/G3 – 5900940-01

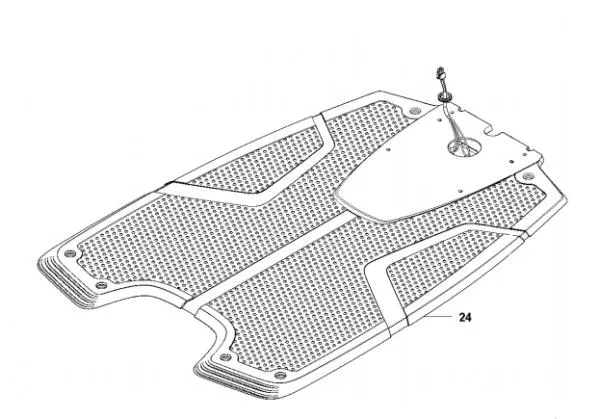

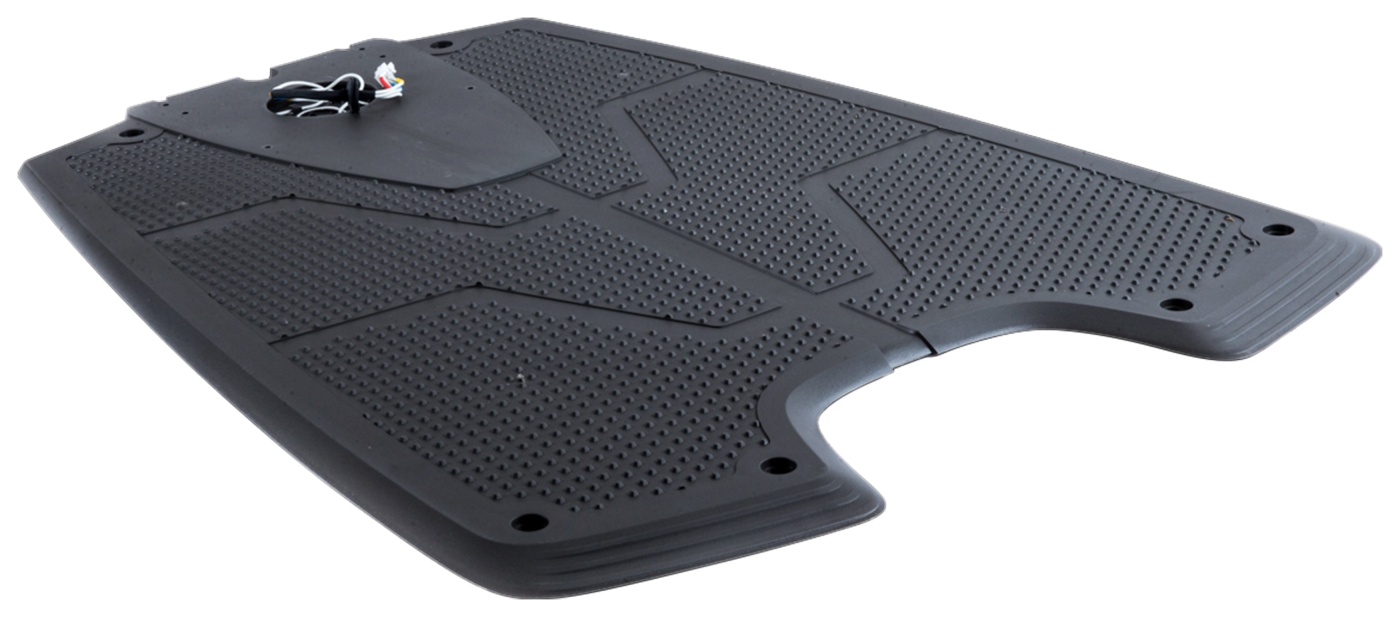

Husqvarna Charging Station Base Plate 5900940-01

This genuine base plate (charging plate) is the key part of the docking station—including cable and a 4-pin plug. Perfect if the mower can’t find the station or won’t dock properly.

• Genuine part for Husqvarna/Gardena docking stations (MPN 5900940-01)
• With cable and 4-pin plug (confirmed)
• Compatible with multiple predecessor part numbers (see table)
• Latest stable version from 08/2018: slightly narrower, function unchanged
• EAN: 7391883940334 (compatible GTIN: 7391883676486)

Tech

• Function: docking station base plate with integrated antennas (F/N signal) and charge contact routing
• MPN/manufacturer number: 5900940-01 / 590094001
• Version: for docking stations from year 2010/2011

Installation

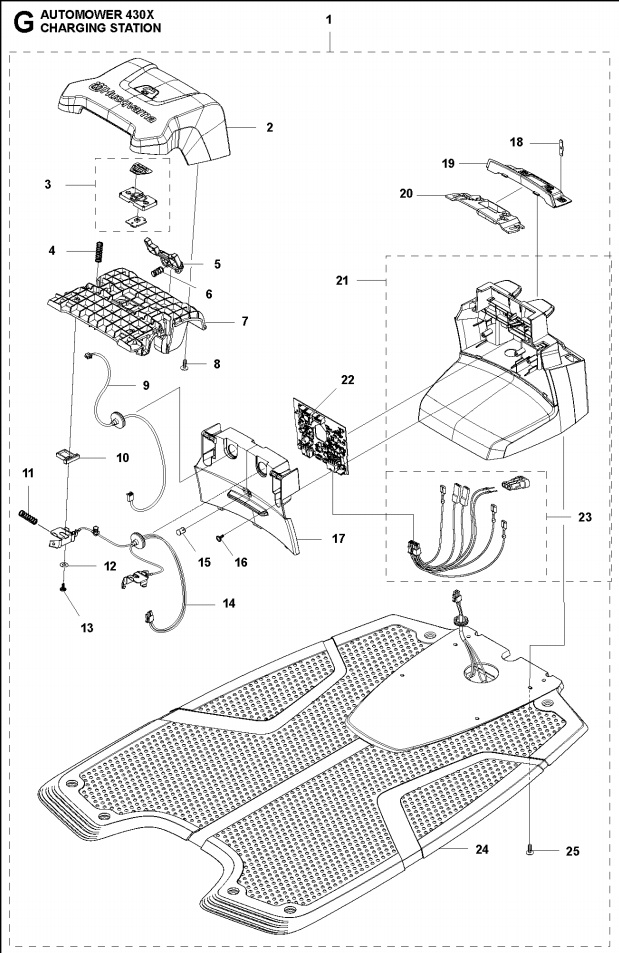

Replacement is done on the docking station (not on the mower). Open the charging tower, unplug the connector and remove the base plate from the underside.

• Compare the plate visually with your original part (very early stations up to approx. 2008/2009 differ).
• Make sure the connector is fully seated and route the cable correctly.
• After installation, check station LED/signal function.

Compatibility

Model	Model years	Matching part numbers/MPN	Replaces (proven)	Note/version
Automower 220AC	2007 2008 2009 2010 2011 2012 2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2. Docking station base plate version from 2010/2011; earlier mowers only if the station has already been converted/rebuilt.
Automower 230ACX	2007 2008 2009 2010 2011 2012 2013 2014	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2. Docking station base plate version from 2010/2011; earlier mowers only if the station has already been converted/rebuilt.
Automower 260ACX	2009 2010 2011	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2.
Automower 265ACX	2012 2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2.
Automower 320	2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 330X	2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 420	2016 2017 2018 2019 2020 2021 2022 2023	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 430X	2016 2017 2018 2019 2020 2021 2022 2023	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 430XH (USA)	2019 2020 2021 2022	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2H (USA).
Automower 440	2017 2018 2019 2020 2021 2022	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 450X	2016 2017 2018 2019 2020 2021 2022 2023	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2.
Automower 450XH (USA)	2019 2020 2021 2022	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2H (USA).
Automower 520	2018 2019 2020 2021 2022 2023	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2C.
Automower 550	2018 2019 2020 2021 2022 2023	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2C.
Automower 550 EPOS	2021 2022 2023 2024	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G4 / platform P2Z.
Automower 550H EPOS (USA)	2021 2022	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G4 / platform P2Z (USA).
Automower 550H USA	2019 2020 2022	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G3 / platform P2C (USA).
Automower G2	2004 2005 2006	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	Only with a converted/rebuilt newer docking station (from 2010/2011).
Automower Solar Hybrid	2008 2009 2010 2011 2012	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2.
Automower Solar Hybrid (Black Metallic Edition)	2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2.
Gardena R160 (G2)	2013 2014 2015	5900940-01 590094001 590 09 40-01 5900940 59009400 590094002	5752316-01 575231601 5752316-02 575231602 5752316-03 575231603 5752316-04 575231604	G2.

Important: Compatibility on early mowers often depends on the docking station version installed. If unsure, verify your original station/part before ordering.

• Genuine Husqvarna/Gardena docking station base plate (MPN 5900940-01).
• With cable and 4-pin plug; version for docking stations from 2010/2011.
• Compatible with multiple numbers: 590094001, 590094002 and 5752316-01 to -04 (see table).
• Latest stable version from 08/2018: slightly narrower, function unchanged.
• EAN: 7391883940334 (compatible GTIN: 7391883676486).
