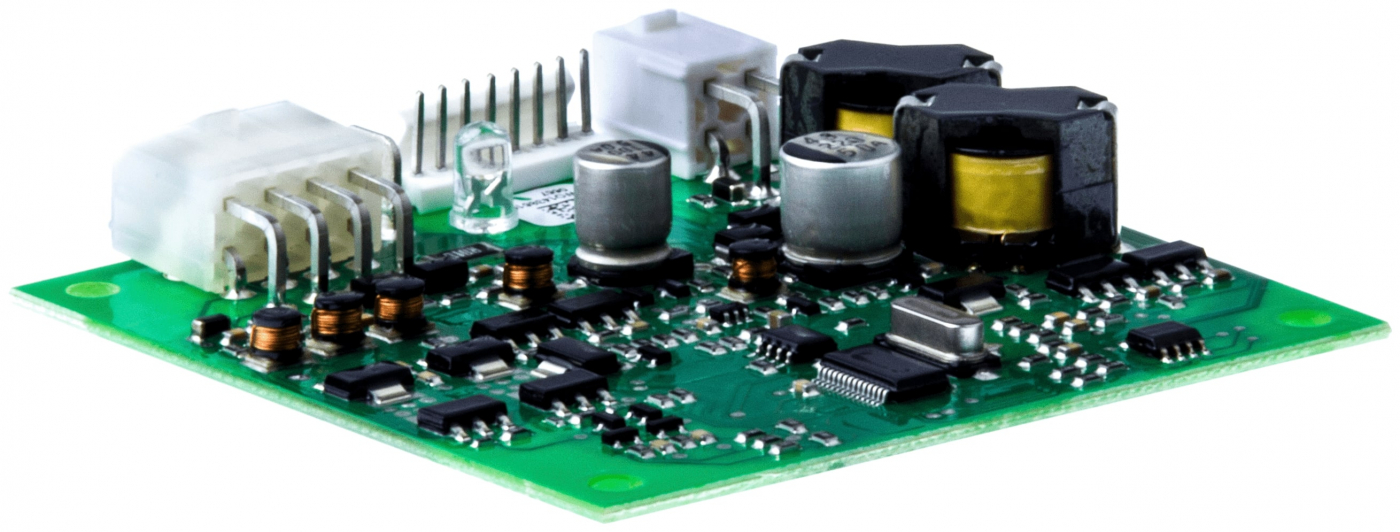

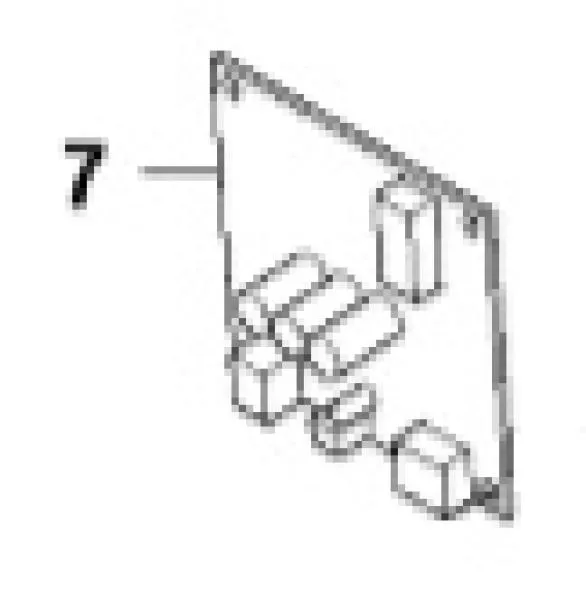

Charging station circuit board for Husqvarna Automower G2 – 5929096-01
Original control/loop PCB for the newer G2 charging station version from 2010. Helpful when the station shows unusual LED states or the mower reports “No loop signal”.
- Fits G2 charging station version from 2010 (base plate 5752316-01)
- Connectors: 4-pin (base plate) + 8-pin (power/loop cables)
- Typical causes: surge/lightning damage or a short circuit inside the station
- After replacement you must re-pair the station (change the PIN)
- Replaces proven previous part numbers (see table)
Technik
- MPN/part no.: 5929096-01 / 592909601
- Generation: G2 (newer charging station from 2010)
- Installation location: charging station
- Shipping weight: 0.08 kg
Einbau
Disconnect the transformer from mains power and remove loop/guide wires. Replace the board and make sure all plugs are fully seated.
Then place the mower in the station and change the PIN in the menu (you may re-enter the same PIN) to restore pairing.

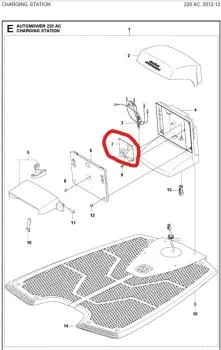

- Only suitable if your station uses the newer base plate 5752316-01 (from 2010)
- Check pins/connectors for secure contact and corrosion
- If the LED still blinks green: measure your loop and guide wires with a multimeter
Kompatibilität
| Modell | Baujahre | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
| Husqvarna Automower 220AC | ab 2010 | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| G2-Ladestation mit neuer Basisplatte 5752316-01 (4+8-pol). Nach Tausch koppeln (PIN ändern). |
| Husqvarna Automower 230 ACX | ab 2010 | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| G2-Ladestation mit neuer Basisplatte 5752316-01 (4+8-pol). |
| Husqvarna Automower Solar Hybrid | ab 2010 (Ladestation-Version) | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| Für G2-Ladestation ab 2010; Solar Hybrid (NiMH) laut Teilezuordnung. |
| Husqvarna Automower 260 ACX | ab 2010 (Ladestation-Version) | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| Nur passend zur Ladestation-Version ab 2010 (Basisplatte 5752316-01). |
| Husqvarna Automower 265 ACX | ab 2010 (Ladestation-Version) | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| Für 265 ACX (Li-Ion) mit G2-Ladestation ab 2010; Basisplatte 5752316-01 erforderlich. |
| Gardena R160 | ab 2010 (Ladestation-Version) | - 5929096-01
- 592909601
- 592 90 96-01
| - 5444541-05 / 544454105
- 5444541-04 / 544454104
- 5848220-02 / 584822002
- 5787885-01 / 578788501
- 5787884-01 / 578788401
- 5444541-02 / 544454102
| Beispiel-Kompatibilität für G2-Ladestation ab 2010; Stecker/Basisplatte prüfen. |
Important: Compatibility depends on the charging station version (from 2010, 4+8-pin). Please compare base plate/connectors before purchase.
• Original board for G2 charging station version from 2010 (base plate 5752316-01)
• 4-pin + 8-pin connectors (newer station version)
• Typical symptom: “No loop signal” while LED stays green
• Re-pair after install (change the PIN)
• Replaces proven parts incl. 5444541-05, 5444541-04, 5848220-02, 5787885-01, 5787884-01
