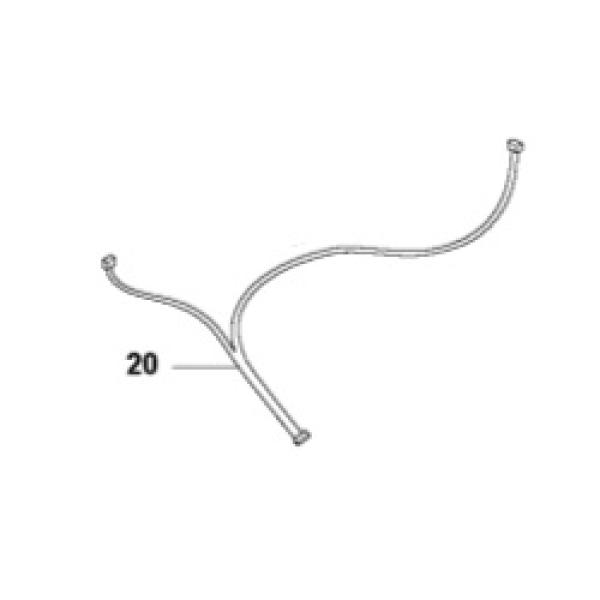

Wiring loom HMI/MMI P15 Husqvarna Automower 310/315 – 588 79 78-01
This wiring loom (Loom P15) connects the HMI/main board and the MMI/display board in the mower. Helpful when a cable set or wiring near the keypad is damaged. Used and tested.
- Original Husqvarna spare part: wiring / Loom P15 2016-
- MPN/manufacturer no.: 588 79 78-01 (also 5887978-01)
- For G3/P15 platform; check model year and version
- Shipping weight approx. 20 g
- Installation requires opening the mower: replace sealing strips
Technical
- Function: connection between main board (HMI), display board (MMI) and a sensor
- Generation/platform: G3 / P15
- Part number: 588797801
Installation
On Automower 310/315 the loom runs in the control unit/electrics area. Make sure all connectors click in and the routing is correct.
After opening the mower, restore water tightness.
- Replace sealing strips to prevent water damage
- Verify model year (from 2016) and P15 version before fitting
- Do not pinch cables; route the cable set without tension
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 310 – 2016–2021
- Husqvarna Automower 315 – 2016–2021
- Husqvarna Automower 315X – 2018–2020
- Gardena SILENO/SILENO+ (R100Li, R100LiC, R130Li, R130LiC, R160Li, R160LiC) – all/from 2016
- Gardena smart SILENO/SILENO+ – 2016–2017
| 588797801, 5887978-01, 588 79 78-01, 5887978, 58879780, 58879780X, AM588797801, HUS5887978, HUS588797801, E111235, 7391736207263 | — | G3/P15; from 2016; replace sealing strips |
Important: Please check model year, platform (P15) and connector variants before purchase.
• Original Husqvarna wiring loom P15 (HMI/MMI)
• Fits Automower 310/315 (G3/P15) plus 315X and Gardena SILENO/SILENO+
• Used and tested part; cleaned
• Opening required: renew sealing strips and check water tightness
• MPN 588 79 78-01 / part no. 588797801
