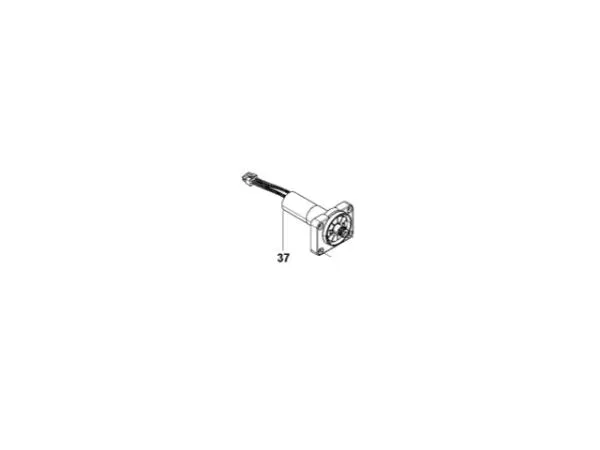

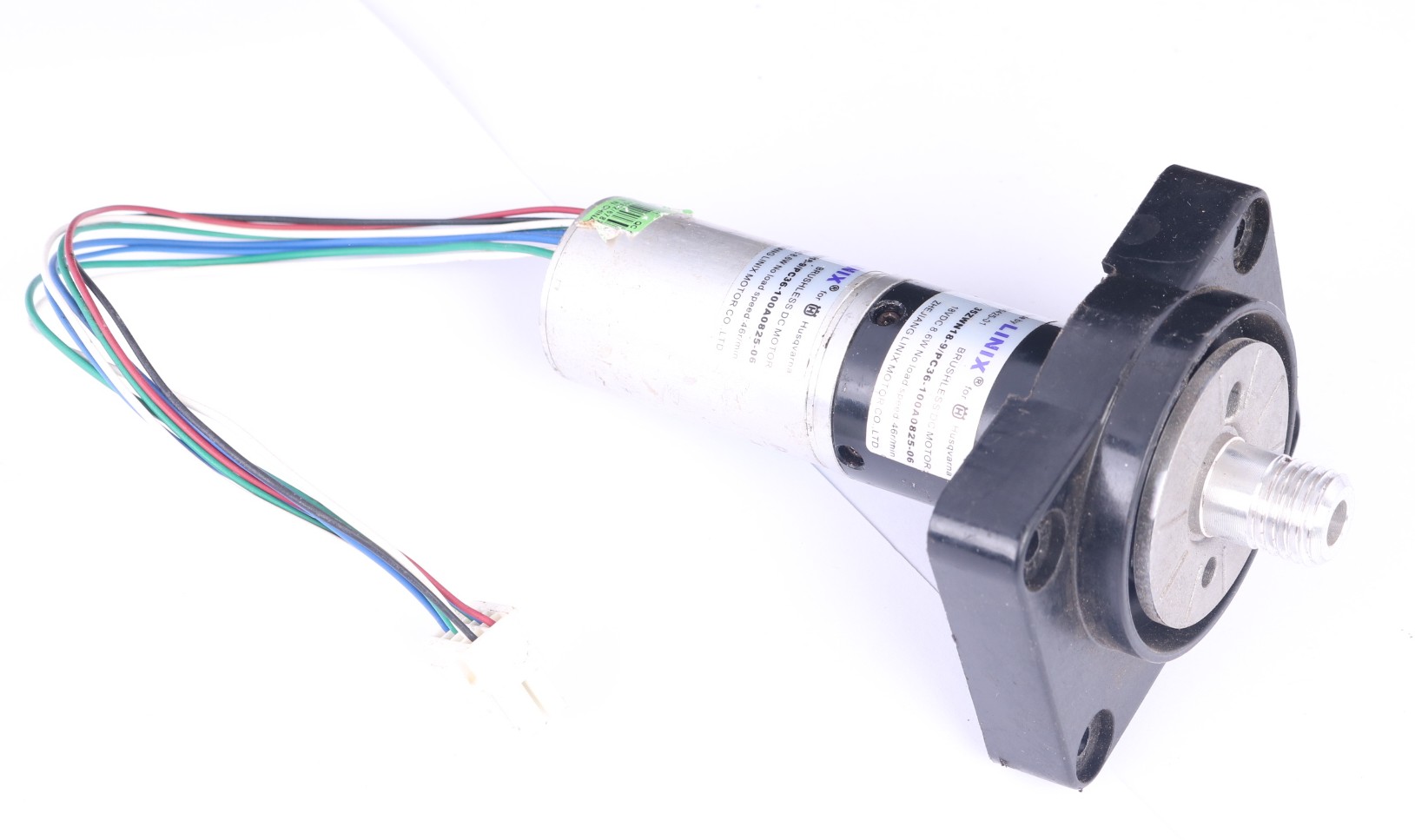

Wheel motor / drive motor (drive) – MPN 5795425-01
Used and tested wheel motor for the drive system of Husqvarna Automower and selected Gardena/McCulloch models. Helpful when the drive is weak, noisy or not moving.
- Used & tested (function test before shipping)
- Matching no.: 5795425-01 (current replacement: 5874494-04 / 587449404)
- Net weight: 706 g
- Wheel nut torque: 18 Nm
- Scope: 1x wheel motor (complete)
Tech
- Compatible part numbers: 5795425-01, 5874494-04, 587449402, 5816213-01
- Wheel nut torque: 18 Nm
- Weight: 706 g
Installation
Check model, production year and serial number before ordering. After opening the mower, renew seals/sealing strip to keep the mower watertight.
After replacement, inspect sealing surfaces and perform a short test run.
- Observe serial number limits (e.g. 2027xxxx / 1944xxxxx)
- Tighten the wheel nut to 18 Nm
- After a software update, older Automower 320 units may be shown as 420
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
- Husqvarna Automower 310 – 2015–2020, up to SN 2027xxxx
- Husqvarna Automower 315 – 2015–2020, up to SN 2027xxxx
- Husqvarna Automower 315X – 2018–2020, up to SN 2027xxxx
- Husqvarna Automower 320 – 2013–2014, up to SN 1445xxxx
- Gardena SILENO City 250/400/500 – 2018–2021, up to SN 1944xxxxx
- Gardena SILENO / smart SILENO – R100Li/R100LiC
- Gardena SILENO+ / smart SILENO+ – R130Li/R130LiC/R160Li/R160LiC, from 2016
- Gardena SILENO Life 750/1000/1250 – from 2019, up to SN 1944xxxxx
- McCulloch Rob R600/800/1000 – 2017–2019
- McCulloch Rob S400/500/600/800 – 2019/2021
| 5795425-01, 579542501, 579 54 25-01, 5874494-04, 587449404, 587449402, 5874494-02, 5816213-01, 5874494-03, 5849203-05, 5849203-02-G, 5849203-04K, 5849203-01C | 5874494-03, 5874494-02, 5816213-01, 5849203-05, 5849203-02-G, 5849203-04K, 5849203-01C | Legacy no. 5795425-01; current replacement 5874494-04. Verify serial numbers. |
Important: Please match model, year and serial number before purchase. This is a used and tested item.
• Used & tested wheel motor (drive)
• MPN 5795425-01; replacement 5874494-04 (587449404)
• Wheel nut torque: 18 Nm
• Weight: 706 g (0.706 kg)
• Check serial limits: 2027xxxx / 1944xxxxx
