Radmotor 230ACX, 260ACX, 265ACX (SW) (Dunker)
Radmotor 230ACX, 260ACX, 265ACX (SW) (Dunker)

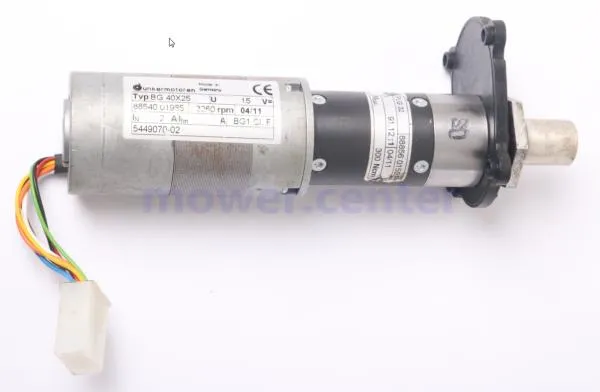

Husqvarna Wheel Motor 544907003 (Dunker) for Automower® 230ACX / 260ACX / 265ACX
Technical
- Wheel/drive motor with gearbox (Dunker, version: SW / black flange).
- Supplied with wheel motor flange and wheel mount.
- Electrical data: U 15 V, I 2 A.
Installation
- Installation by qualified personnel only. Disconnect power (disconnect battery) and prevent accidental start.
- Remove wheel/mounting parts, unplug connector(s), replace wheel motor and route wiring correctly.
- After installation, run a functional test (drive, reverse, error messages).
Compatibility
| Part number / MPN / EAN | Compatible models | Model years (per source) |
|---|---|---|
| 544907003 / AM-544907003 / EAN 7393080355836 | Husqvarna Automower® 230ACX | 2007–2014 |
| 544907003 / AM-544907003 / EAN 7393080355836 | Husqvarna Automower® 260ACX | 2009–2011 |
| 544907003 / AM-544907003 / EAN 7393080355836 | Husqvarna Automower® 265ACX | 2012–2015 |
| Replaces: 544 90 70-01; 544 90 70-02; 544 90 70-03; 540 01 99-XX; 88856; 88540; BG1; CL F; PLG32 | See models above | See models above |
• Wheel/drive motor with gearbox (Dunker), SW version / black flange
• Electrical data: 15 V, 2 A
• Fits Automower® 230ACX (2007–2014), 260ACX (2009–2011), 265ACX (2012–2015)
• Replaces/part history includes: 544 90 70-01, 544 90 70-02, 544 90 70-03
