Verdrahtungsleitung Ladestation G3 P1 rund
Verdrahtungsleitung Ladestation G3 P1 rund
NEW
SOLD OUT

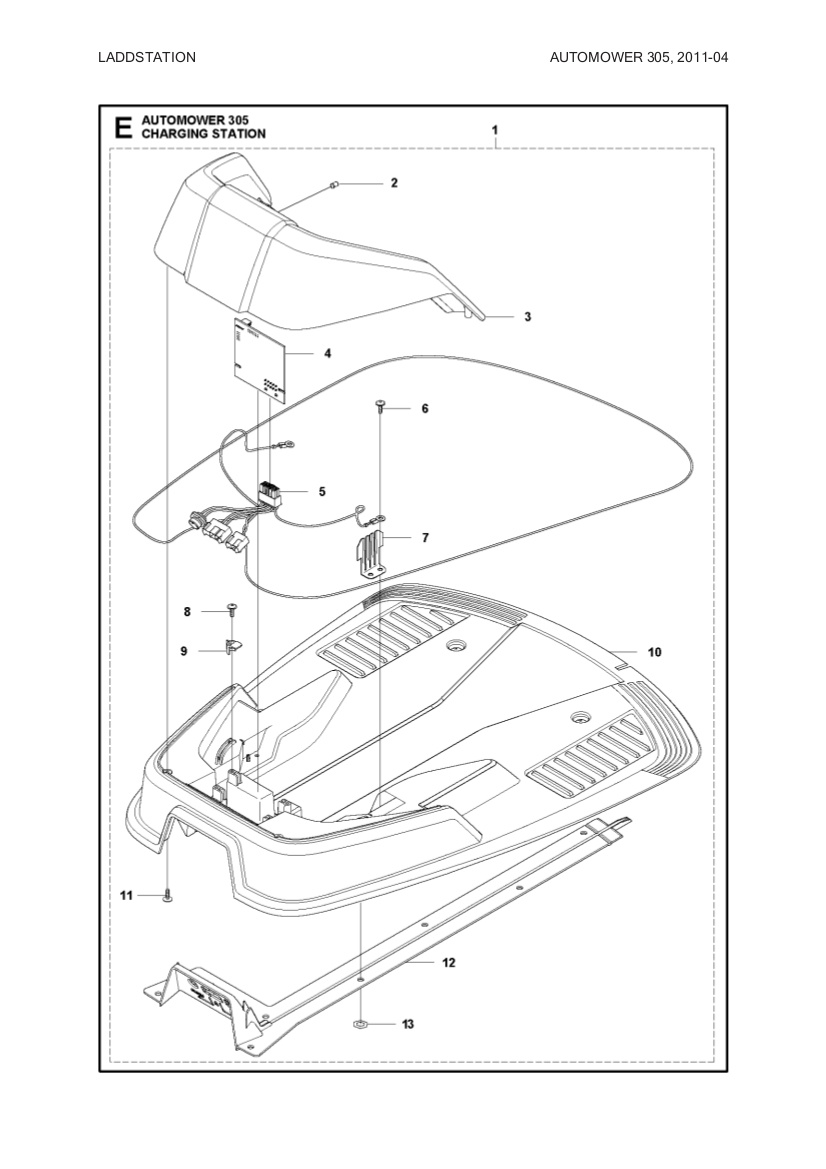

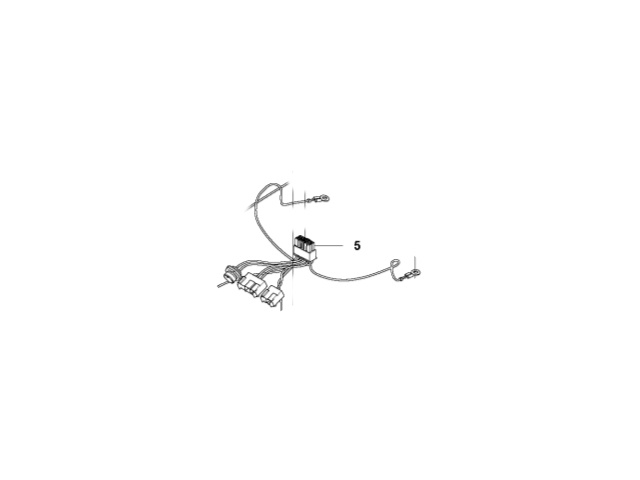

Loom / wiring harness charging station G3 P1 (MPN 5744765-01)
Wiring harness/loom for repairing the charging station for Husqvarna Automower 305 and compatible models. Helps with corrosion, broken wires or red flashing (antenna).
- Version with round transformer/power unit plug (G3 P1)
- Superseded by: 5744765-02 (replaces 5744765-01)
- With plugs and antenna for the charging station base plate
- EAN/GTIN: 7393080474254
Technical
- Platform: G3 P1
- Part number: 574476501 (MPN 5744765-01)
- Weight: 50 g
- Dimensions: 250 x 150 x 40 mm
Installation
Before removal, mark the antenna position or take a photo. Wrong alignment can reduce docking reliability.
Clean corroded contacts and make sure cables are not pinched.
- Check the transformer plug: round
- Align the antenna exactly as before
- Keep the base plate sealed and clean
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|---|---|---|
| 5744765-01, 574476501, 574 47 65-01, 5744765-02, 574476502, 574 47 65-02, 5744765, 57447650, 57447650X, AM-574476502 | Superseded by 5744765-02 / 574476502 | G3 P1, round transformer/power plug; align antenna correctly |
Important: Only fits charging stations with a round power-unit plug. If your plug differs, choose the matching loom version.
• Charging station wiring harness/loom G3 P1 (round transformer plug).
• MPN 5744765-01 / part no. 574476501; superseded by 5744765-02 / 574476502.
• With plugs and antenna for the charging station base plate.
• Compatible e.g. with Husqvarna Automower 305 plus Gardena R38Li/R40Li/R45Li/R50Li and Flymo 1200R.
