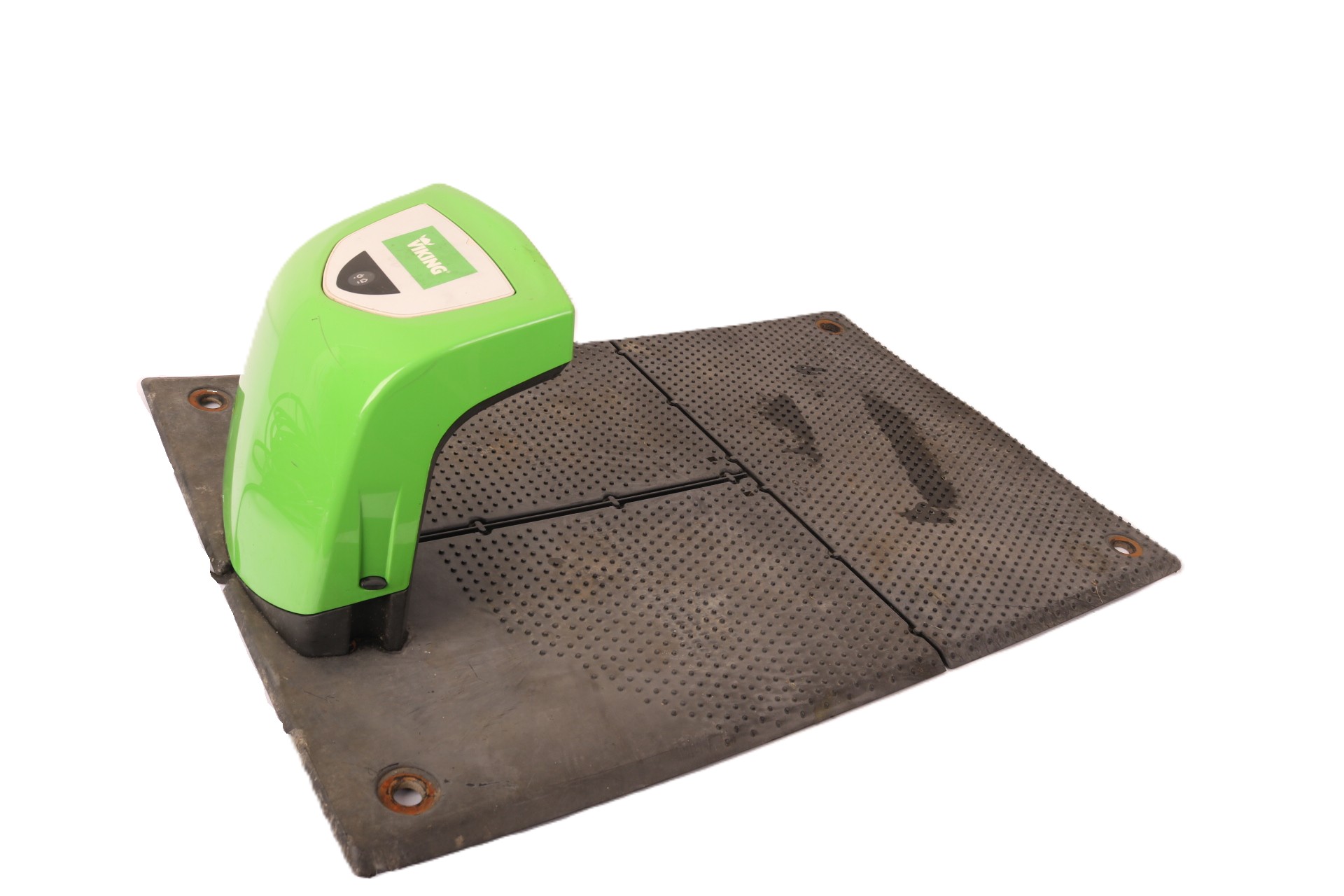

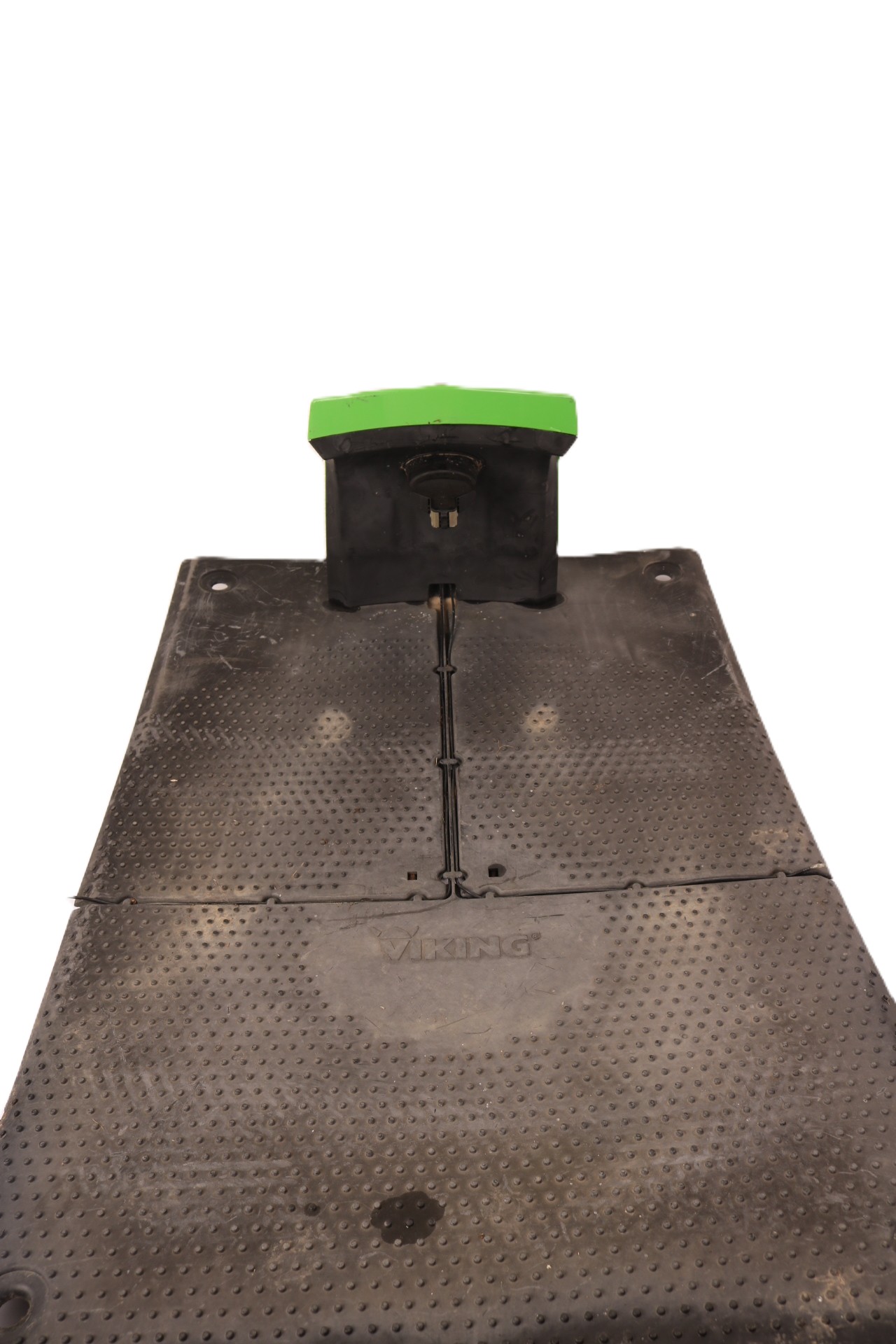

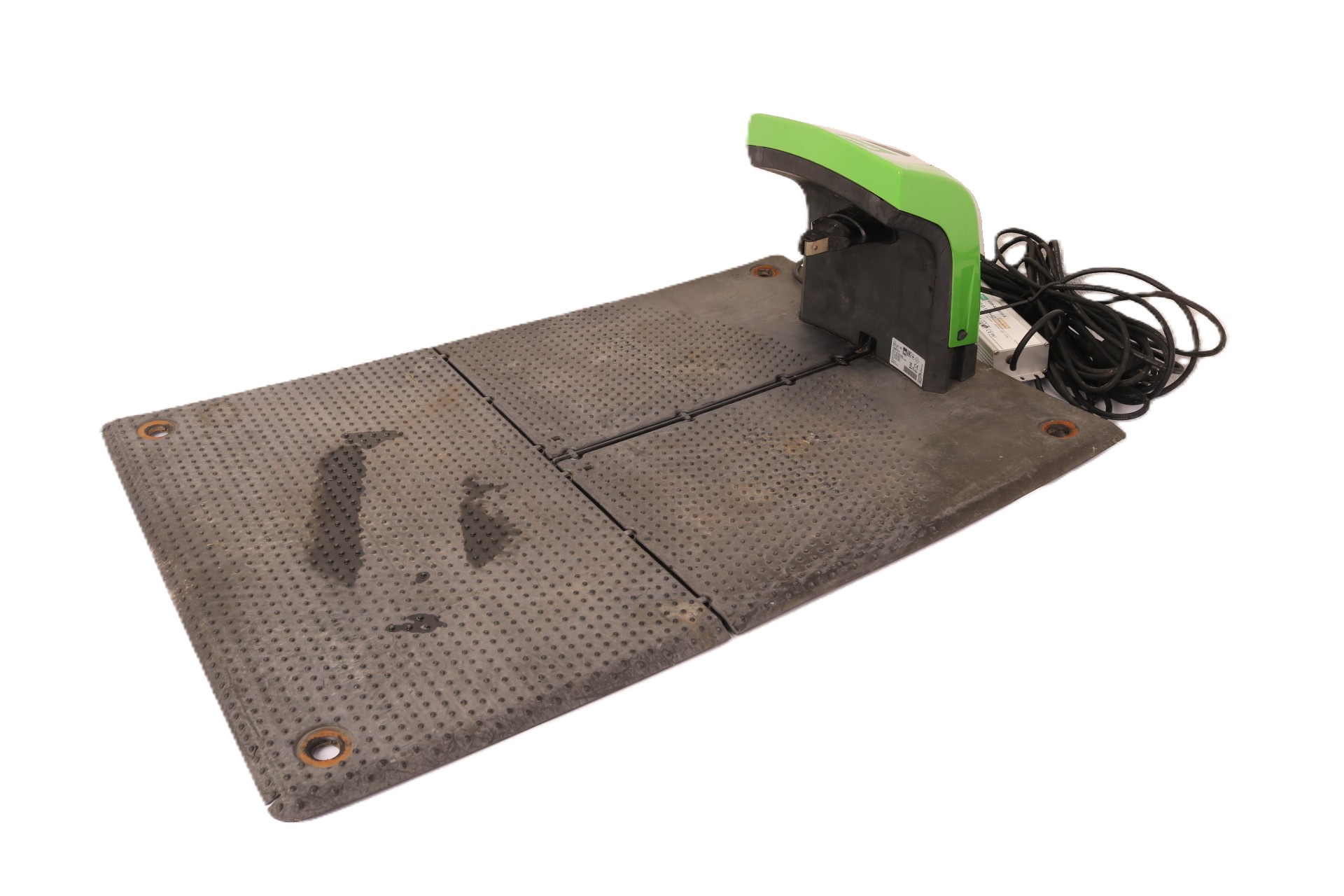

STIHL / Viking ADO 401 / ADO 601 – Charging station iMow RMI 4–6

Technical Data & Compatibility
The docking station type ADO 401 / ADO 601 is compatible with the following Viking and STIHL iMow robotic mowers:

• ADO 401 (27 V – OWA-60E power supply) – for the RMI 4–5 series:

  • Viking MI 422, MI 422 P, MI 422 PC

  • STIHL iMow RMI 422, RMI 422 P, RMI 422 PC

  • Viking MI 522 C

  • STIHL iMow RMI 522 C

• ADO 601 (42 V – HLG-120H / HLG-185H power supply) – for the RMI 6 series:

  • Viking MI 632, MI 632 P, MI 632 PC

  • STIHL iMow RMI 632, RMI 632 P, RMI 632 PC

From the nameplate

• Voltage / PSU versions: 27 V DC (2.3 A), 42 V DC (2.9–4.4 A)

• Protection class: IPX1

• Weight: approx. 3 kg

• Manufacturer: VIKING GmbH (now STIHL Tirol GmbH)

Condition
Our used stations show minor signs of wear, but are in perfect working order.

Scope of Delivery (with power supply)

• Docking station ADO 401 or ADO 601

• Matching transformer / PSU

• Low-voltage cable

Scope of Delivery (without power supply)

• Only docking station ADO 401 or ADO 601 (no PSU & low-voltage cable)

GTIN / MPN

• ADO 401: MPN 6909 430 9602

• ADO 601: MPN 6909 430 9609

Special Features Compared to Similar Devices

• Combines parking and charging in one compact unit

• Optimized charging profile for respective iMow series

• Durable, robust design
