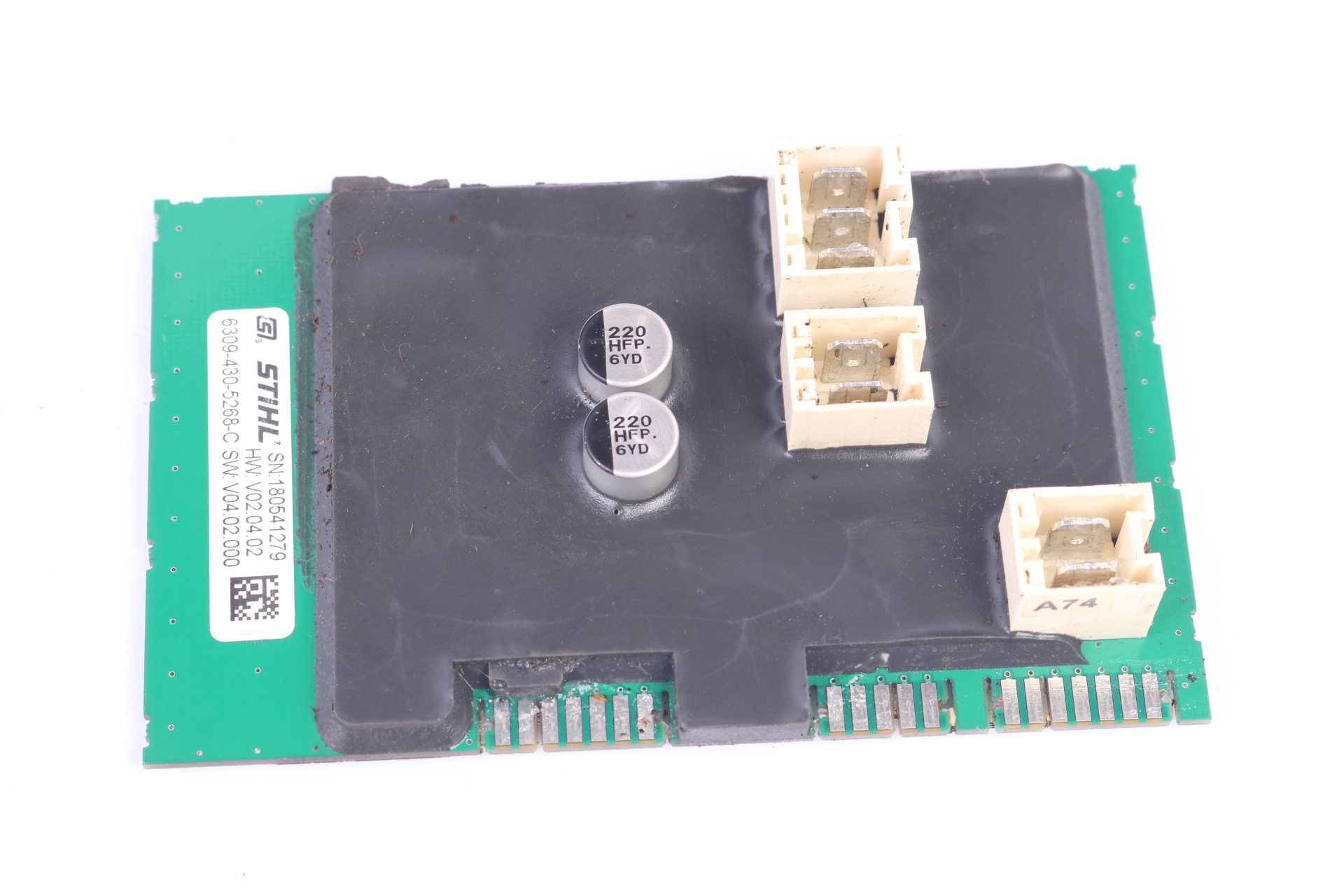

Right Drive Circuit Board 6309-430-5268

This used and tested right drive circuit board is the matching electronic part for many STIHL and Viking iMow 632 models when the right wheel drive fails or behaves intermittently.

Original spare part with MPN 6309-430-5268.
Used and tested, suitable for multiple MI and RMI 632 variants.

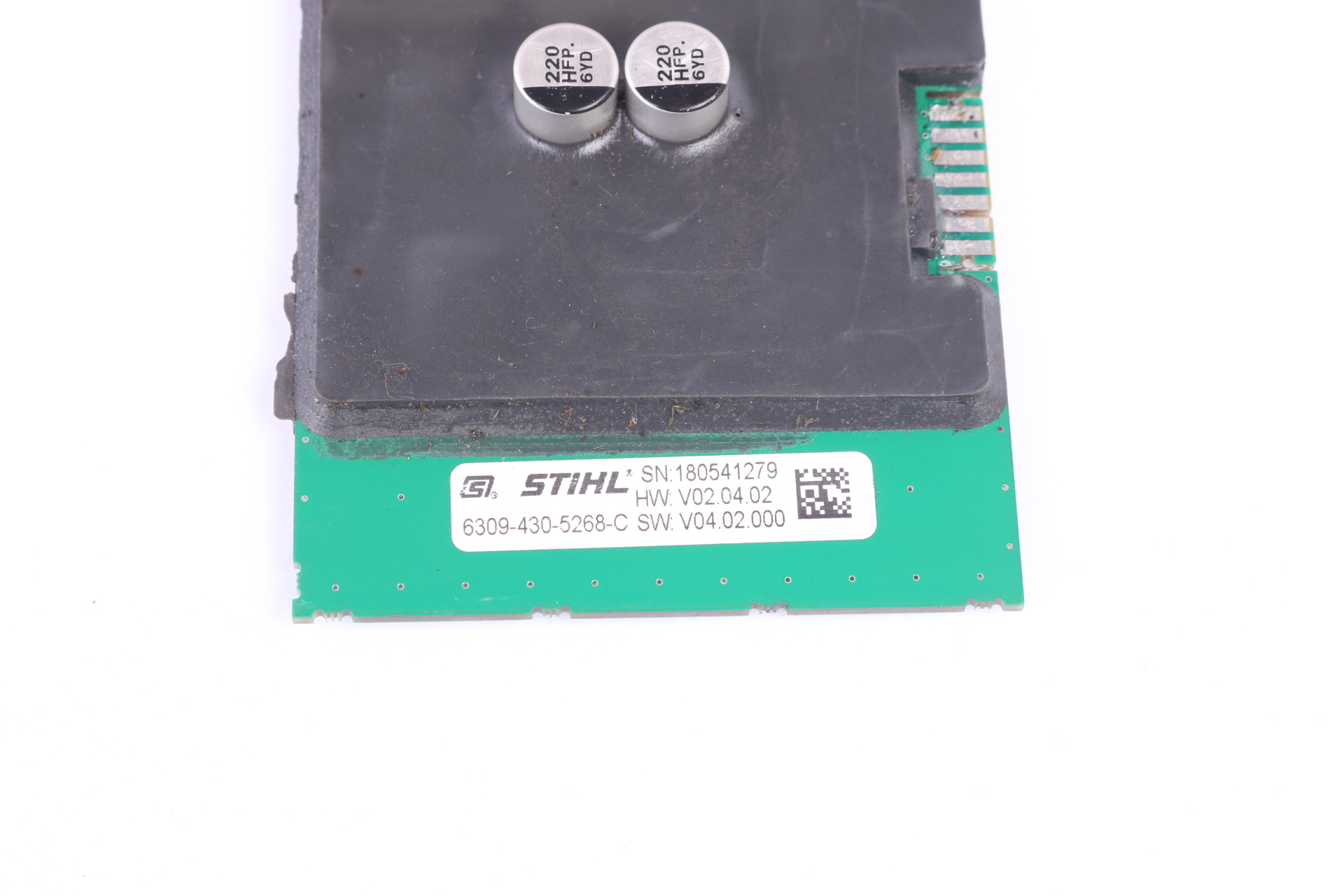

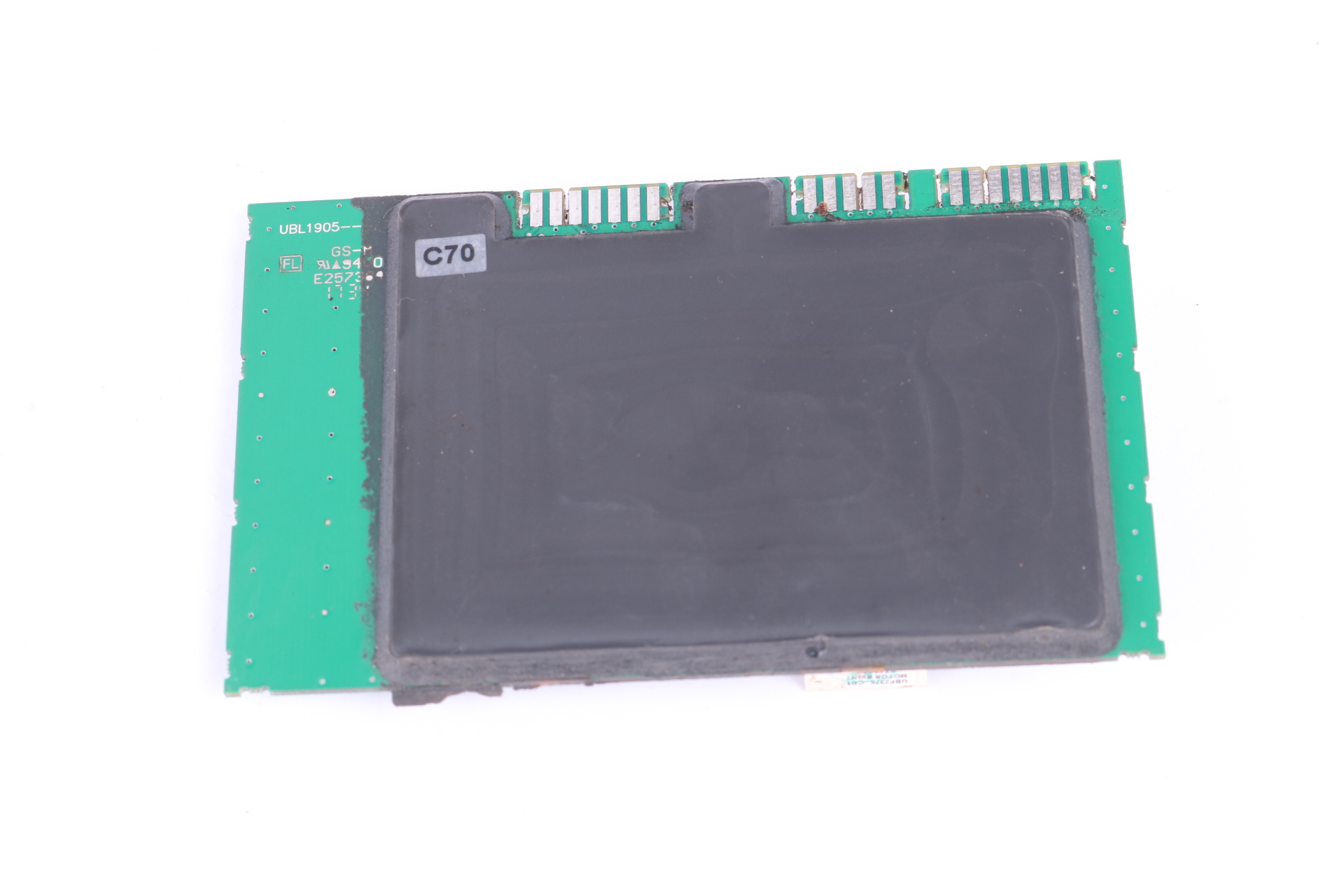

Version with software and resin potting according to the part designation.
Scope of delivery: 1 x right circuit board without additional mounting parts.
Please check right/left side, connector layout and sealing before installation.

Technical

Part group: Electronics & sensors.
Installation position: right drive in the electrical components section.
EAN/GTIN: 886661251063.
Tariff weight: 0.15 kg.

Installation

This board is installed on the right drive side and should only be replaced with the correct right-hand version.

For used and tested electronic parts, we recommend checking connectors, sealing and software status before final reassembly.

Disconnect the machine from power before replacement.
Transfer cables and plugs carefully and without tension.
Do not mix up right and left drive boards.
For older machines, compare part revision and machine status first.

Compatibility

Model	Matching part numbers/MPN	Replaces (documented)	Note/version
RMI 632.0 RMI 632.0 C RMI 632.0 P RMI 632.0 PC MI 632.0 MI 632.0 C MI 632.0 P MI 632.0 PC MI 632.1 MI 632.1 C MI 632.1 M MI 632.1 P MI 632.1 PC	63094305268, 6309-430-5268, 6309 430 5268, 1017511, SN63094305268, STI ++ 6309-430-5268	6309 430 5266, 6309 430 5221	right drive circuit board; older MI 632.0 P versions document 6309 430 5266 and 6309 430 5221; version with software/potting.

Important: Please verify the model, right-hand installation position, connectors and housing seal before purchase and installation.

• Original STIHL/Viking right drive circuit board with MPN 6309-430-5268.
• Used and tested, suitable for many MI/RMI 632 models.
• Version with software and resin potting according to the part designation.
• Scope of delivery: 1 x right drive board without additional mounting parts.
• Check side, connector layout and sealing before installation.
