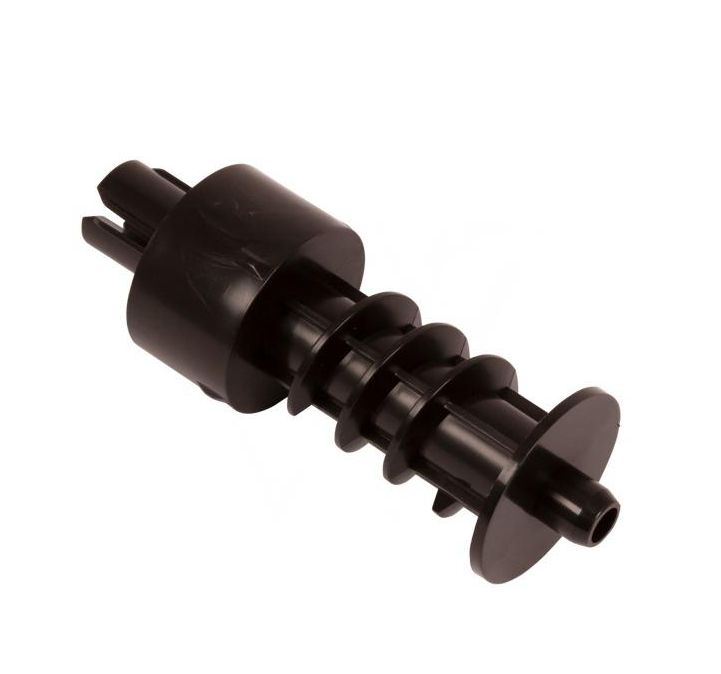

Height adjustment spindle screw 5744846-01
Original Husqvarna Automower spare part for the cutting height adjustment. Useful if the adjustment is stiff or has excessive play.
- MPN: 5744846-01 (manufacturer no. 574484601)
- EAN/GTIN: 7391883681039
- Net weight: 48 g
- Fits Automower 105/305/308 (G3/P1)
Tech
- Part: height adjustment spindle/screw
- Function: cutting height adjustment
- Generation/platform: G3 / P1
Installation
Power off the mower and secure it against restart before installation.
Remove the spindle/screw from the height adjustment and install the replacement in the same position.
- Clean the thread and check smooth movement
- Avoid cross-threading to prevent jamming
- Test cutting height after assembly
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 105 – 2016->
- Husqvarna Automower 305 – 2011-2015
- Husqvarna Automower 308 – 2013-2015
- McCulloch Rob R600/Rob R1000 – 2017->
- Flymo 1200R – 2013, 2016-2017
- Gardena R38Li (2015-2017), R40Li (2012->), R45Li (2013->), R50Li (2015->), R70Li (2013->), R75Li (2013-2018), R80Li (2015->)
| 5744846-01, 574484601, 5744846, 57448460, 57448460X, AM574484601, 7391883681039 | — | G3/P1 Schnitthöhenverstellung |
Important: Please check model year and platform (G3/P1). Fitment may vary with different versions.
• Original Husqvarna spare part (height adjustment)
• MPN 5744846-01 / manufacturer no. 574484601
• Fits Automower 105 (2016->), 305 (2011-2015), 308 (2013-2015)
• EAN/GTIN 7391883681039, net weight 48 g
