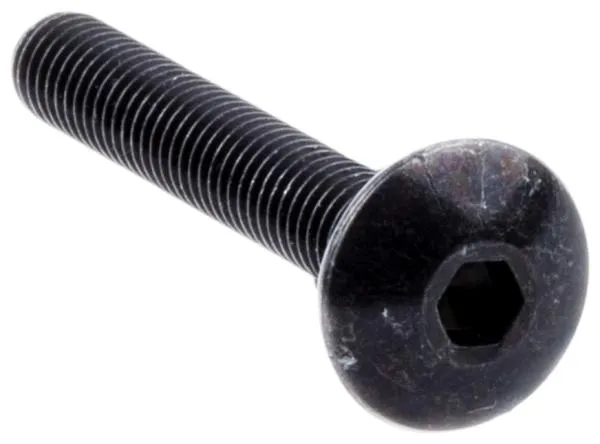

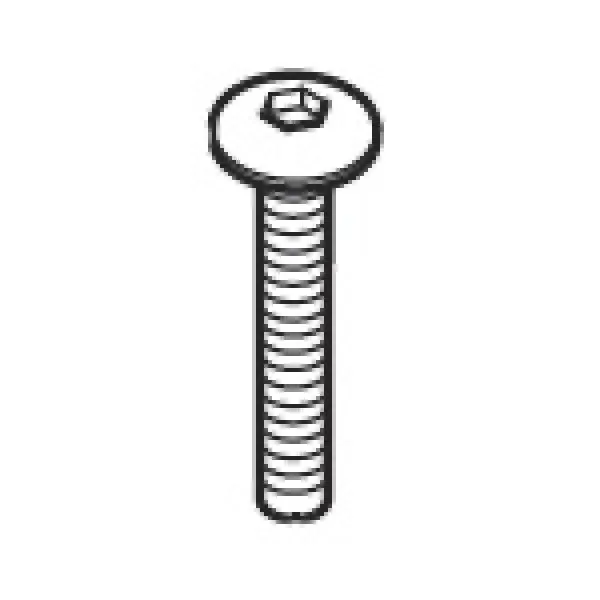

Screw M6x40SV (housing) – 535129302
Original housing screw for Husqvarna Automower® G2. Useful if a housing fastener is missing or damaged.
- Type: M6 x 40 mm (M6x40SV)
- Color: black (1 piece)

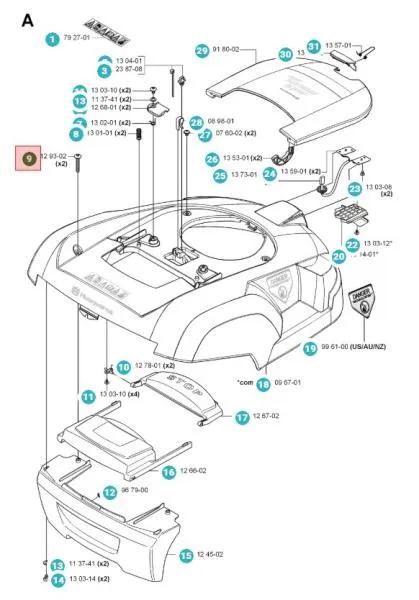

- Rear upper housing screw; 2 pcs needed on 210C/220AC/230ACX
- Number variants: 535129302 / 5351293-02 / 535 12 93-02
Specs
- Thread: M6
- Length: 40 mm
- Strength class: 4.6
- Generation/Platform: G2 / 1
Installation
Compare the original screw length (40 mm) and verify the part number before installation.
When working on the housing, keep sealing surfaces clean and undamaged.
- Check model and model year
- Match the number variants
- Do not overtighten
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/Version |
|---|
- Husqvarna Automower® 210C – 2007–2010
- Husqvarna Automower® 220AC – 2007–2015
- Husqvarna Automower® 230ACX – 2007–2014
- Husqvarna Automower® G2 – 2004–2006
- Gardena® R160 (G2) – 2013–2015
- Husqvarna Automower® Solar Hybrid – 2009–2010
| 535129302, 5351293-02, 535 12 93-02, AM-535129302 | 5351293, 53512930, 535129305, 53512930X, AM535129302, M640, 7391883407684 | Housing screw (G2), M6x40SV, black |
Important: Please verify model/generation (G2) and model year before ordering.
• Original Husqvarna spare part
• M6 x 40 mm screw (M6x40SV), black
• Rear upper housing screw; 2 pcs needed on 210C/220AC/230ACX
• Number variants: 5351293-02 / 535 12 93-02
• Compatible with Automower® G2 & Gardena® R160 (G2)
