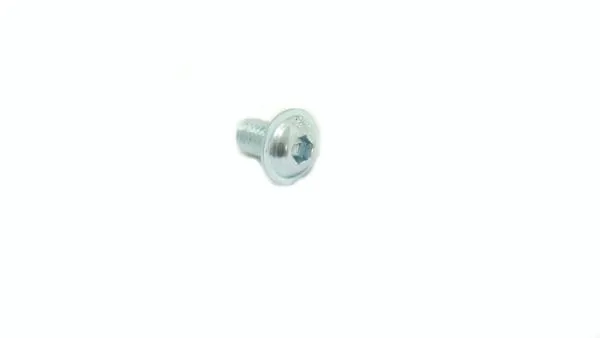

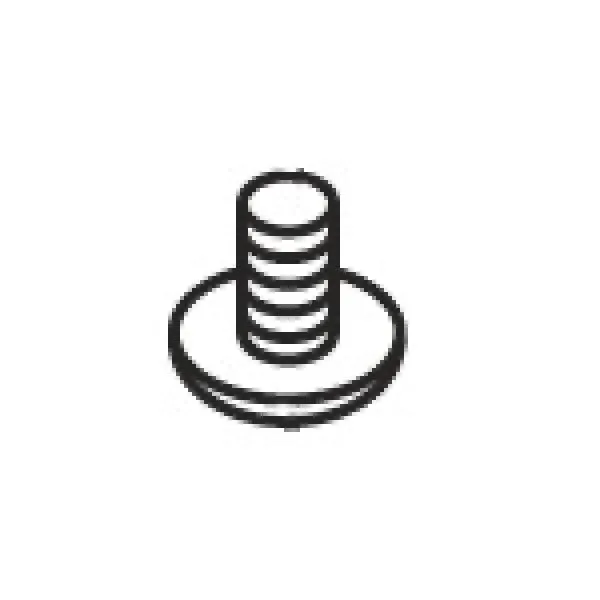

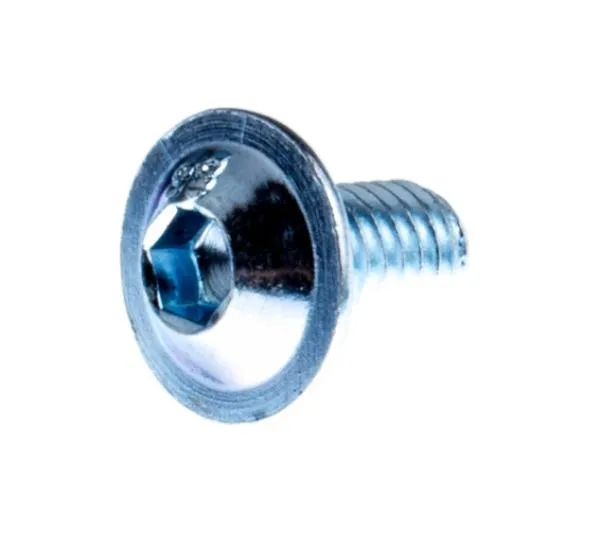

Screw M6x10 upper front housing for Husqvarna Automower 220AC/230ACX – 5350760-02
This screw (manufacturer no. 535076002) is a Husqvarna Automower spare part used to fasten the lift sensor/front cover to the chassis on Automower 220 and Automower 230 platforms.
- Type: M6x10 screw
- Scope of delivery: 1 screw (often required 2x per unit)
- Install position: upper front housing
- Use: lift sensor/front cover fastening
Tech
- MPN: 5350760-02 (variant: 535076002)
- Thread: M6; Length: 10 mm
Installation
Switch off the mower and remove the cover carefully before installation.
Make sure the screw engages cleanly and does not cross-thread.
- Verify the correct version for your model/cover
- For Automower 230ACX: compatible from 2008
- Align the lift sensor bracket properly
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/Version |
|---|
- Husqvarna Automower 220AC – —
- Husqvarna Automower 230ACX – from 2008
- Husqvarna Automower 260ACX – —
- Husqvarna Automower 265ACX – —
- Husqvarna Automower G2 – —
- Husqvarna Automower Solar Hybrid – —
- Husqvarna Automower 210C – —
- Gardena R160 – —
| 5350760-02, 535076002, 535 07 60-02, 535 07 60 02 | — | M6x10 screw for front cover/lift sensor; scope 1 pc; often 2x per unit |
Important: Please match model and version (M6x10) before ordering.
• M6x10 screw (MPN: 5350760-02 / 535076002)
• For securing the front cover/lift sensor bracket to the chassis
• Scope of delivery: 1 screw (often needed 2x per unit)
• Fits e.g. Automower 220AC, 230ACX, Solar Hybrid, Gardena R160
• Note: Automower 230ACX compatible from 2008
