Robomow Fahrantriebsmotor / Radmotor SMSB6206B

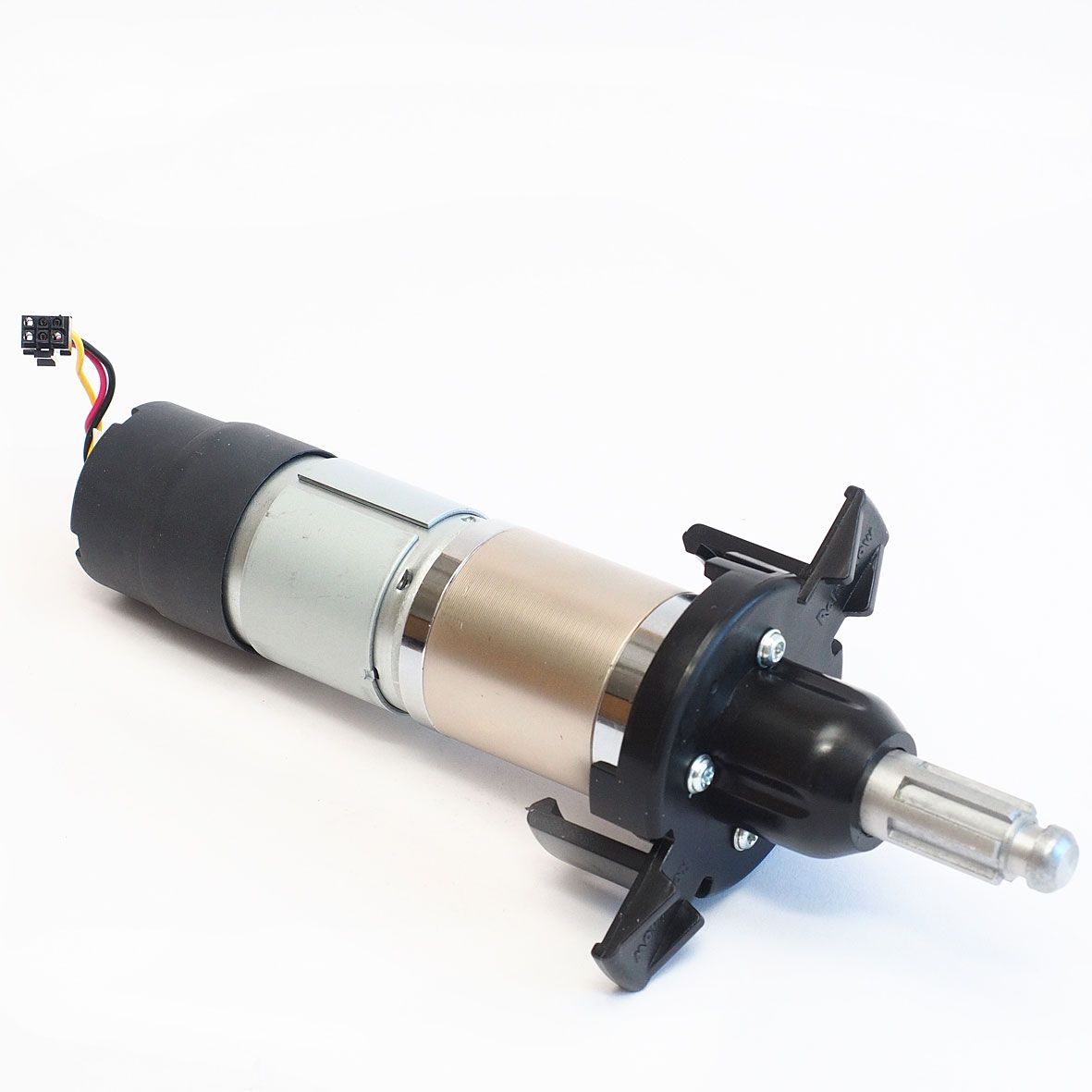

Robomow drive / wheel motor SMSB6206B

Tested used drive motor (wheel drive) for Robomow RS/MS/TS S-models. Useful for drive faults, jerky movement or gearbox noise.

• MPN/part number: SMSB6206B (also sold as MSB6206B, MSB6206C)
• Verified replacements: MSB6006A, MSB0126A, SPP6109A
• Can be installed on left or right side (plug-in system)
• Scope of delivery: 1x drive motor unit (motor + gearbox + axle)

Technik

• Motor type: brushed motor
• Weight: 1070 g
• Material: metal (incl. aluminium) and plastic

Einbau

Switch the robot off at the main switch before installation.

Unplug the connector, remove the unit from its holder and clip the new unit in place.

• Make sure the plug is fully locked
• Check clips/retainers and wheel cap for proper fit
• After installation, test drive and listen for abnormal noise

Kompatibilität

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Cub Cadet XR3 3000 – — Cub Cadet XR3 4000 – — Cub Cadet XR3 5000 – — CubCadet XR3 3000 – — CubCadet XR3 4000 – — CubCadet XR3 5000 – — Lawn Keeper 1800 – — Lawn Keeper 3000 – — Lawnkeeper 1800 – — Lawnkeeper 3000 – — RoboScooter 1800 – — RoboScooter 3000 – — Robomow MS1000 – — Robomow MS1500 – — Robomow MS1800 – — Robomow MS2500 – — Robomow RS612 – — Robomow RS612 US – — Robomow RS615 – — Robomow RS615 Pro – — Robomow RS615U – — Robomow RS615u – — Robomow RS622 – — Robomow RS622 US – — Robomow RS625 – — Robomow RS625 PRO (Black) – 2017 Robomow RS625 Pro – — Robomow RS625U – — Robomow RS625u – — Robomow RS630 – — Robomow RS630 US – — Robomow RS635 – — Robomow RS635 Pro S – — Robomow RS635 Pro SV – — Robomow RS365 Pro – — Robomow TS1000 – — Robomow TS1800 – — Wolf-Garten Robo Scooter 1000 – — Wolf-Garten Robo Scooter 1800 – — Wolf-Garten Robo Scooter 3000 – —	SMSB6206B, MSB6206B, MSB6206C, WG-SMSB6206B, 515SMSB6206B	SMSB6206A, MSB6206A, SPP6109A, MSB0126A, MSB6006A	Radantrieb (Bürstenmotor) mit Getriebe; links/rechts verwendbar; im Gerät oft 2x verbaut

Important: match the part number on the type plate or parts list. Depending on the model, the drive motor is often installed twice (price per piece).

• Tested used drive/wheel motor for Robomow RS/MS/TS S-models
• Fits left or right side thanks to the plug-in system
• Verified replacements: MSB6006A, MSB0126A, SPP6109A
• Weight: 1070 g (1.07 kg)
• Scope: 1x motor + gearbox + axle unit
