Antriebseinheit / Antriebsgetriebe HD/H3000 RC/MC/TC

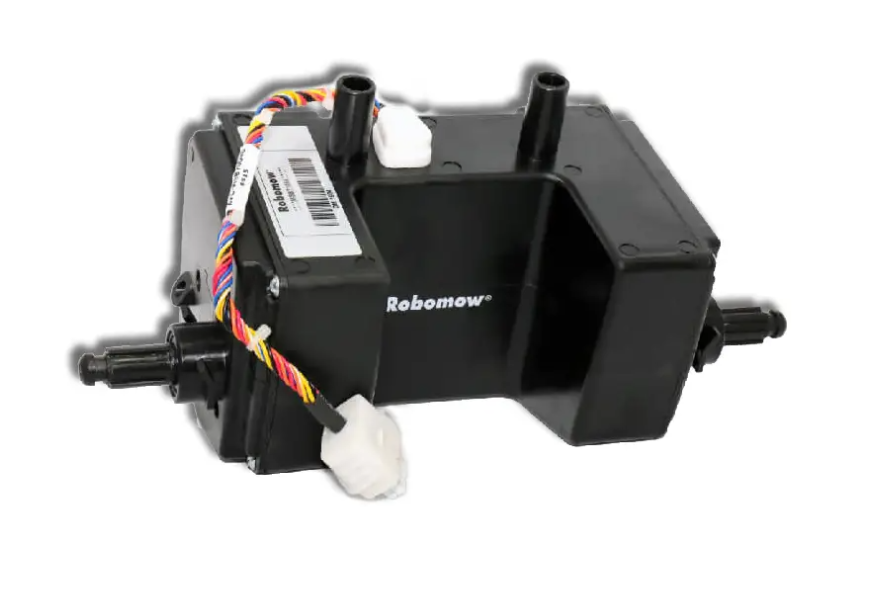

Robomow Drive Unit (Gearbox Assembly) SMSB7106A

Complete traction module with two wheel motors, gearboxes and axle as one unit. A common Robomow spare part for robotic lawn mowers.

• Used, tested and cleaned
• HD/H3000 (reinforced version), click-in module
• 8-pin connector, incl. speed sensors
• Approx. 31 x 13 x 15.5 cm; approx. 1.87 kg

Specs

• Type: drive unit with 2x wheel motor + 2x gearbox + axle
• Previous part numbers: SPP7012A / MSB7006A

Installation

Replace as a complete unit. Transfer the wheels to the new unit.

Make sure connectors are fully seated and secured.

• Remove the battery
• Release module, pull out and replace
• Move wheels to the new unit

Compatibility

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Robomow RC312 – 2014–2019 Robomow RC308 – 2014–2019 Robomow RC306 – 2014–2019 Robomow RC304 – 2014–2019 Robomow RC302 – 2014–2019 Robomow MC1200 – 2014–2019 Robomow MC1000 – 2014–2019 Robomow MC800 – 2014–2019 Robomow MC500 – 2014–2019 Robomow MC400 – 2014–2019 Robomow MC300 – 2014–2019 Robomow MC150 – 2014–2019 Robomow TC500 – 2014–2019 Robomow TC300 – 2014–2019 Robomow TC150 – 2014–2019 Wolf Loopo M2000 – 2014–2019 Wolf Loopo M1500 – 2014–2019 Wolf Loopo M1000 – 2014–2019 Wolf RoboScooter 600 – 2014–2019 Wolf RoboScooter 400 – 2014–2019 Wolf RoboScooter 300 – 2014–2019 CubCadet XR2 2000 – 2014–2019 CubCadet XR2 1500 – 2014–2019 CubCadet XR2 1000 – 2014–2019 Cub Cadet Lawnkeeper 600 – 2014–2019	SMSB7106A, SMSB 7106A, SPP7012A, SPP 7012A, MSB7006A, MSB 7006A	SPP7012A, MSB7006A	HD/H3000; 8-pin; replace complete assembly only

Important: Double-check model/platform and connector version before ordering.

• Complete module: 2x wheel motor, 2x gearbox, axle, sensors
• HD/H3000 reinforced version, 8-pin connector
• Replaces previous part numbers SPP7012A and MSB7006A
• Fits Robomow RC/MC/TC plus Wolf Loopo M and CubCadet XR2
• Used, tested and cleaned
