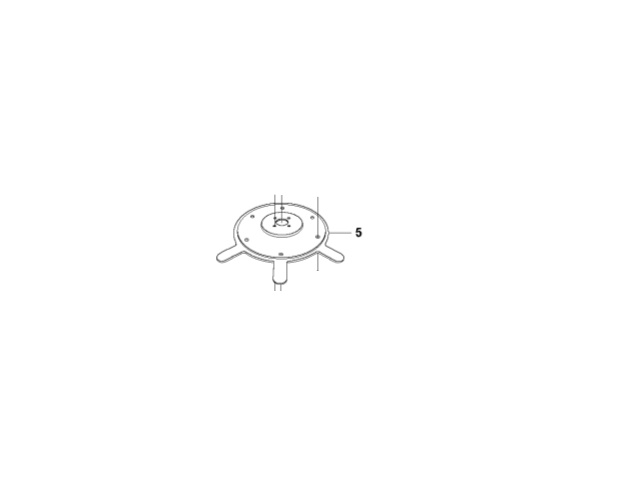

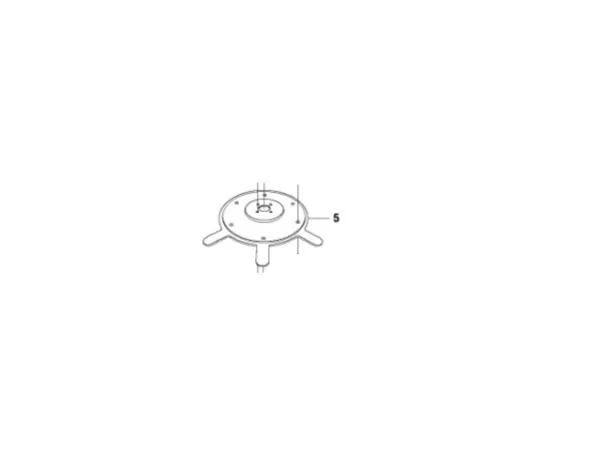

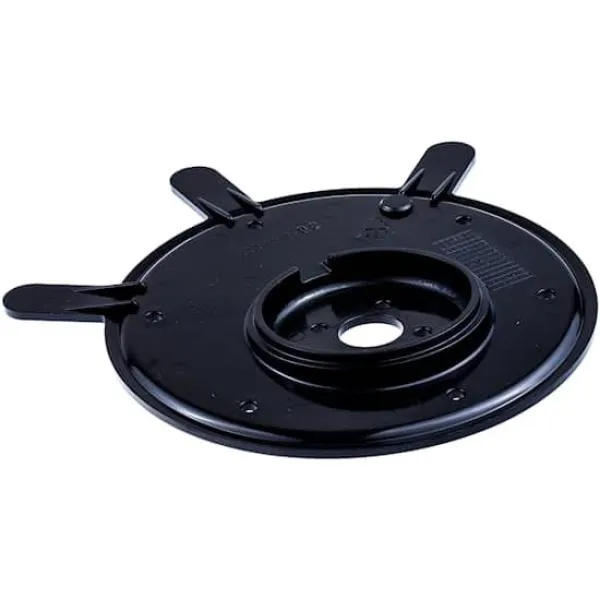

Mower Motor Plate (MPN 522771502)
This plate is a genuine Husqvarna spare part for the cutting motor area, helping the assembly sit correctly—ideal for maintenance or replacement work.
- Genuine part: 522 77 15-02 / 522771502
- Replaces: 522 77 15-01 (confirmed)
- Fits G2 platform models incl. Automower® 220AC & Solar Hybrid
- EAN: 7393080355799
Technical
- Name: Mower motor plate / bottom bracket mowing motor
- Parts group: Cutting motor & cutting system
- Generation/Platform: G2 / Platform 1
Installation
Installed in the cutting motor area (bottom side). Make sure all parts sit flat and nothing is pinched.
If you are unsure, verify model and model year using the compatibility list.
- Check model year / generation (G2)
- Note replaced part number 522 77 15-01
- After assembly, run a functional check (free movement)
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower® 210C – 2007–2010
- Husqvarna Automower® 220AC – 2007–2015
- Husqvarna Automower® 230ACX – 2007–2014
- Husqvarna Automower® G2 – 2003–2006
- Husqvarna Automower® Solar Hybrid – 2008–2012
- Husqvarna Automower® Solar Hybrid (Black Metalic Edition) – 2013–2015
- Gardena® Gardena® R160 (G2) – 2013–2015
| 522771502, 5227715-02, 522 77 15-02, AM-522771502, AM522771502, 5227715, 52277150, 522771501, 52277150X, 535122001, 535122002, 7391883407301, 7393080355799, AM535122001, AM535122002, M20409 | 522 77 15-01, 5227715-01 | G2, Platform 1; listed by mower24 as "from 2010" – please verify model year |
Wichtig: Please double-check part number/MPN (including hyphen/spacing variants) and your robot model year before ordering.
• Genuine Husqvarna part: 522 77 15-02 (MPN 522771502)
• Confirmed replacement for 522 77 15-01
• Fits selected G2 models (e.g., Automower® 220AC / Solar Hybrid)
• EAN/GTIN: 7393080355799
