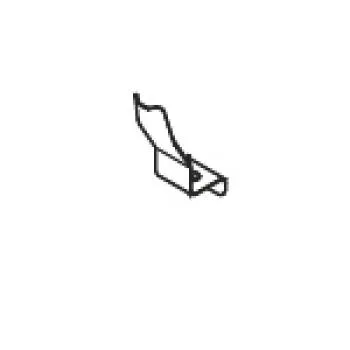

Locking spring (height adjustment) for Husqvarna Automower G2 – 5351224-02
Genuine locking spring that secures the height adjustment/cutting height latch on Husqvarna Automower G2 and compatible models. Useful if the adjustment no longer locks firmly.
- Original Husqvarna spare part (part no. 535122402)
- For G2 platform (incl. Automower 220AC/230ACX/Solar Hybrid)
- Number variants: 5351224-02 / 535 12 24-02
- Helps with common issues: cutting height slipping, height adjustment not locking
Specs
- MPN: 5351224-02
- EAN/GTIN: 7393089304729
- Generation: G2
- Platform: 1, 2 (depending on model)
Installation
The spring is located at the height adjustment mechanism in the chassis area. Check the latch and mating parts for wear when replacing it.
Tip: power down the mower before disassembly and keep the spring orientation exactly as installed.
- Test the latch function several times after installation
- Replace worn latch parts if needed
- Verify model year/platform (G2, platform 1 or 2)
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 220AC – 2007-2015
- Husqvarna Automower 230ACX – 2007-2014
- Husqvarna Automower 210C – 2007-2010
- Husqvarna Automower 260ACX – 2009-2011
- Husqvarna Automower 265ACX – 2012-2015
- Husqvarna Automower G2 – 2003-2006
- Husqvarna Automower Solar Hybrid – 2008-2012
- Husqvarna Automower Solar Hybrid (Black Metalic Edition) – 2013-2015
- Gardena R160 (G2) – 2013-2015
| 5351224-02, 535122402, 535 12 24-02, 535 12 24 02, 5351224 02, 5351224, 53512240, 535122401, 53512240X, AM535122401, AM535122402, 7393089304729, 7391883407332 | 5351224, 53512240, 535122401, 53512240X, AM535122401 | G2; Plattform 1/2 je Modelljahr; Hersteller-Nr. 535122402 |
Important: Please verify model and production year. If unsure, cross-check the parts diagram/position.
• Genuine Husqvarna locking spring for the height adjustment/cutting height latch.
• Fits Automower G2 incl. 220AC, 230ACX, Solar Hybrid (see compatibility).
• Part no. 535122402, MPN 5351224-02 (also written as 535 12 24-02).
• Replacement history: compatible with 535122401/53512240/5351224.
