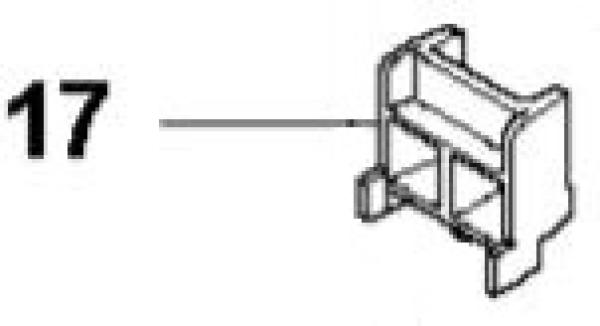

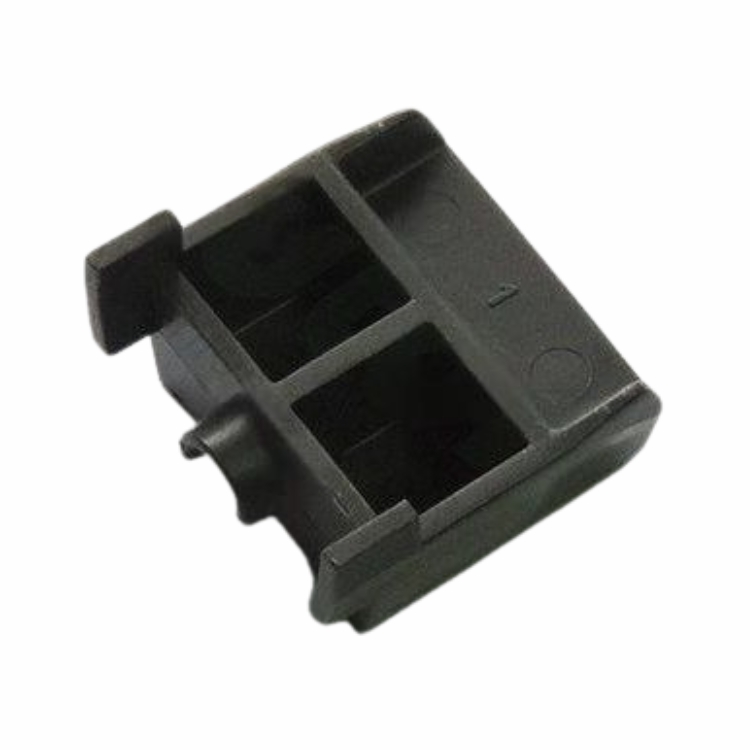

Lock / Stop Cover (Latch) 575409001
This spare part locks the stop button/top cover area on the upper chassis (G3 P1) and is used across several Husqvarna/Gardena G3 robots.
- Part number/MPN: 575409001 (variant: 5754090-01)
- Platform: G3 P1
- GTIN/EAN: 7391883664889
- Net weight: 5 g
- Common names: lock, latch, stop cover
Tech
- Function: mechanical latch in the stop-button / cover mechanism
- Replacement history: compatible with 5754090, 57540900, 57540900X, AM575409001
Installation
The latch is located in the upper chassis around the stop-button/top cover mechanism.
Ensure smooth movement and correct seating after replacement.
- Match model and model year from the table
- After install: the stop button must click/lock properly
- Confirm G3 P1 platform
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- McCulloch Rob R600/800/1000 – 2017–2019
- McCulloch ROB S400/500/600/800 – 2019–2021
- Husqvarna Automower® 105 – 2016–2023
- Husqvarna Automower® 305 – 2011–2015
- Husqvarna Automower® 308 – 2013–2015
- Gardena® R38Li, R40Li, R45Li, R50Li – 2012–2019
- Gardena® R70Li, R75Li, R80Li – 2013–2019
- Flymo 1200R – 2013–2018
- Flymo Easilife 200/350/500/800 – 2020–2021
| 575409001, 5754090-01, 5754090 01, 575 40 90-01, 00057-54.090.01, 7391883664889, 5754090, 57540900, 57540900X, AM575409001 | 5754090, 57540900, 57540900X, 7391883664889, AM575409001 | Lock/Stop Cover, Stop button latch; Plattform G3 P1 |

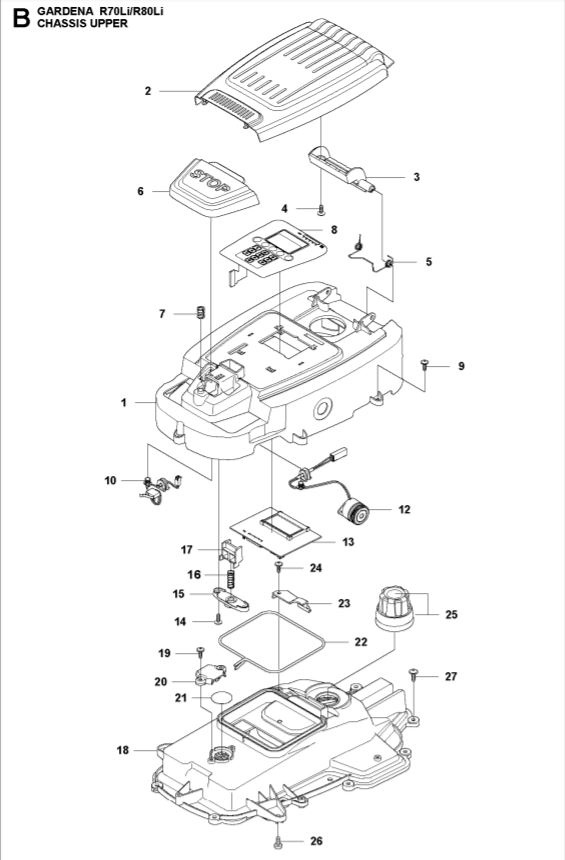

Important: if you are unsure, verify the part number on your mower or in the exploded view.
• Original lock/stop cover for stop-button/top cover latch (G3 P1)
• Part number/MPN: 575409001 (5754090-01)
• Fits e.g. Husqvarna Automower® 105/305/308
• GTIN/EAN: 7391883664889
• Net weight: 5 g
