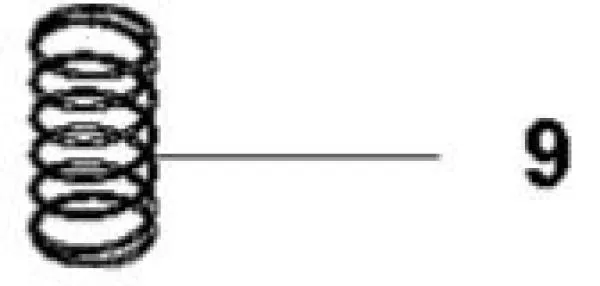

Lift sensor spring – MPN 574 48 51-01
This spring supports the lift sensor in the chassis (G3 P1) and is a common spare part for Husqvarna Automower and compatible Gardena, Flymo and McCulloch robot mowers.
- Part number variant: 574485101 (MPN 574 48 51-01)
- Note: replaced by 574 48 51-02
- For the lift sensor in G3 P1 chassis
- Useful for robot mower spare parts maintenance
Technical
- Component: spring (lift sensor)
- Platform: G3 / P1
- GTIN/EAN: 7391883721209
Installation

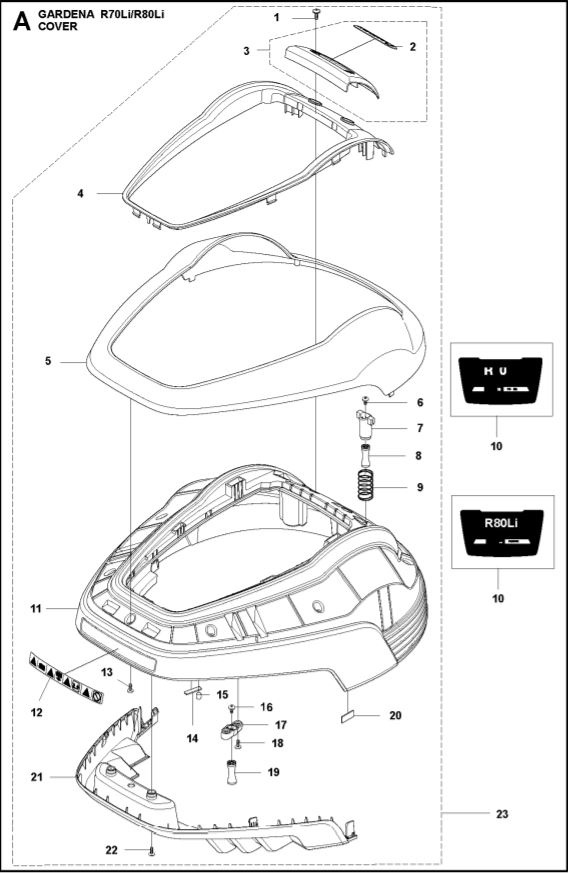

Install the spring on the lift sensor according to the exploded view. Ensure correct seating and free sensor movement.
- Switch off the mower and disconnect the battery before work
- Verify model year and platform (G3 P1)
- Replace worn rubber dampers or brackets at the same time if needed
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 105 - 2016-2023
- Husqvarna Automower 305 - 2011-2015
- Husqvarna Automower 308 - 2013-2015
- Gardena R38Li/R40Li/R45Li/R50Li - 2012-2019
- Gardena R70Li/R75Li/R80Li - 2013-2019
- Flymo 1200R - 2013-2018
- McCulloch Rob R600/Rob R1000 - 2017-
| 574 48 51-01, 574485101, 5744851-01, 574 48 51-02, 574485102, 5744851-02, 7391883721209 | — | G3 P1 lift sensor spring; 574 48 51-01 is replaced by 574 48 51-02 |
Important: Please verify model, model year and platform (G3 P1) before ordering.
• Lift sensor spring for G3 P1 chassis
• Part number 574485101 (MPN 574 48 51-01)
• Note: replaced by 574 48 51-02
• Compatible with Automower 105/305/308 and selected Gardena/Flymo/McCulloch models
