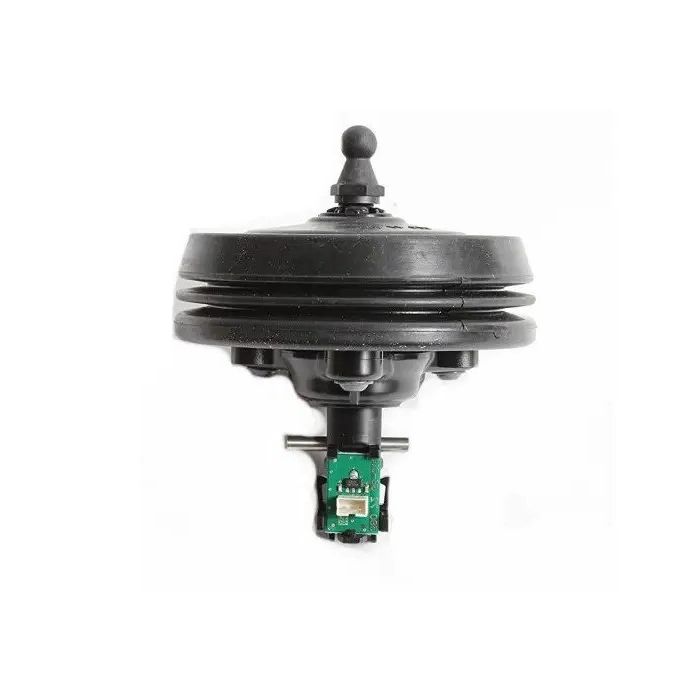

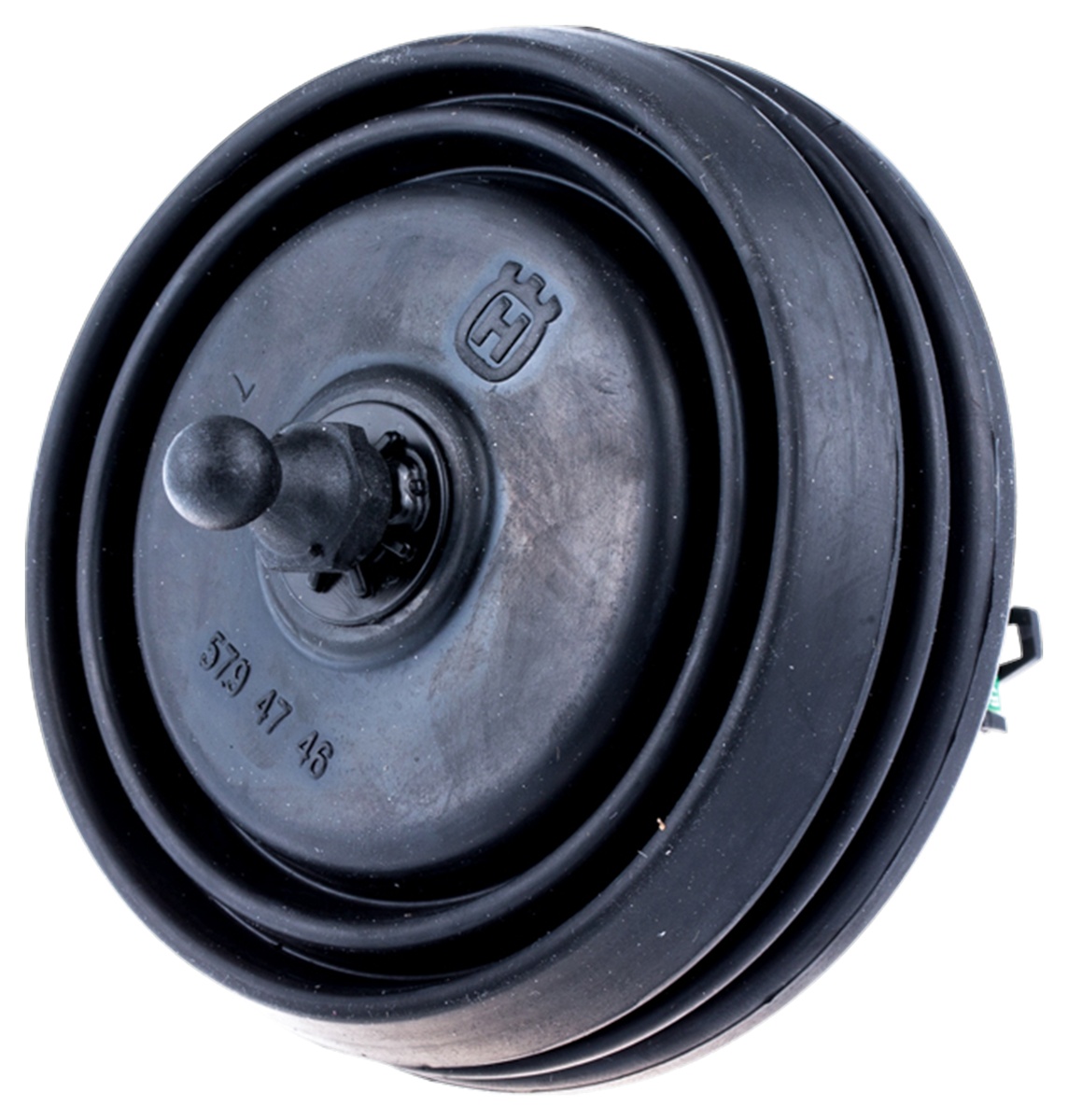

Lift sensor G3 / front joystick kit – MPN 581620902
Used and tested lift-sensor/joystick kit for the floating front cover – a practical Husqvarna Automower spare part for 310/315/320/330X/420/430X/450X and more.
- Helpful for symptoms like “collision sensor problem”, “collision active” or “lifted”
- Front cover holder; the lift-sensor PCB mounts here (may not be included depending on version)
- Successor: 5816209-03 / 581620903 (please verify part number)
- Shipping weight about 0.19 kg
Tech
- Function: centers the cover and triggers collision/lift logic
- Compatible brands: Husqvarna, Gardena
- Part group: Electronics & Sensors
Installation
Installation requires opening the mower. Replace seals/sealing strips to keep the mower watertight.
If the cover is not centered, check the joystick mechanism and rubber bellows for dirt, cracks or breakage.
- Match the MPN/part number on your mower
- Check model year/version
- Replace seals after opening
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower 310
- Husqvarna Automower 315 / 315X
- Husqvarna Automower 320 / 330X
- Husqvarna Automower 420 / 430X / 435X AWD / 440 / 450X
- Husqvarna Automower 520 / 535 AWD / 535X AWD / 540 / 550 / 550X / 550 EPOS
- Gardena SILENO / SILENO+
| 581620902, 5816209-02, 581620903, 5816209-03, 581620901, 5816209-01 | — | Successor: 5816209-03 (581620903); versions may differ by model year |
Important: Always verify the part number (with/without hyphen/spaces) on your mower or parts list before ordering.
• Used & tested front lift-sensor/joystick kit for the floating top cover
• Typical symptoms: “collision sensor problem”, “collision active” or “lifted”
• MPN 581620902 (variants: 5816209-02 / 581620902)
• Successor: 5816209-03 (581620903) – verify part number
• Shipping weight about 0.19 kg
