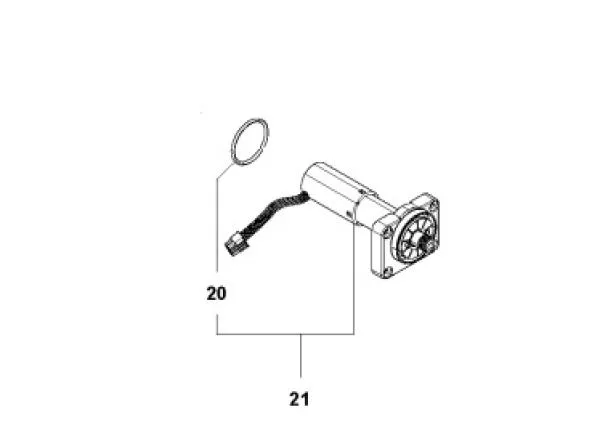

Husqvarna Wheel Motor / Motor Kit Drive Wheel P2 – MPN 5863561-01

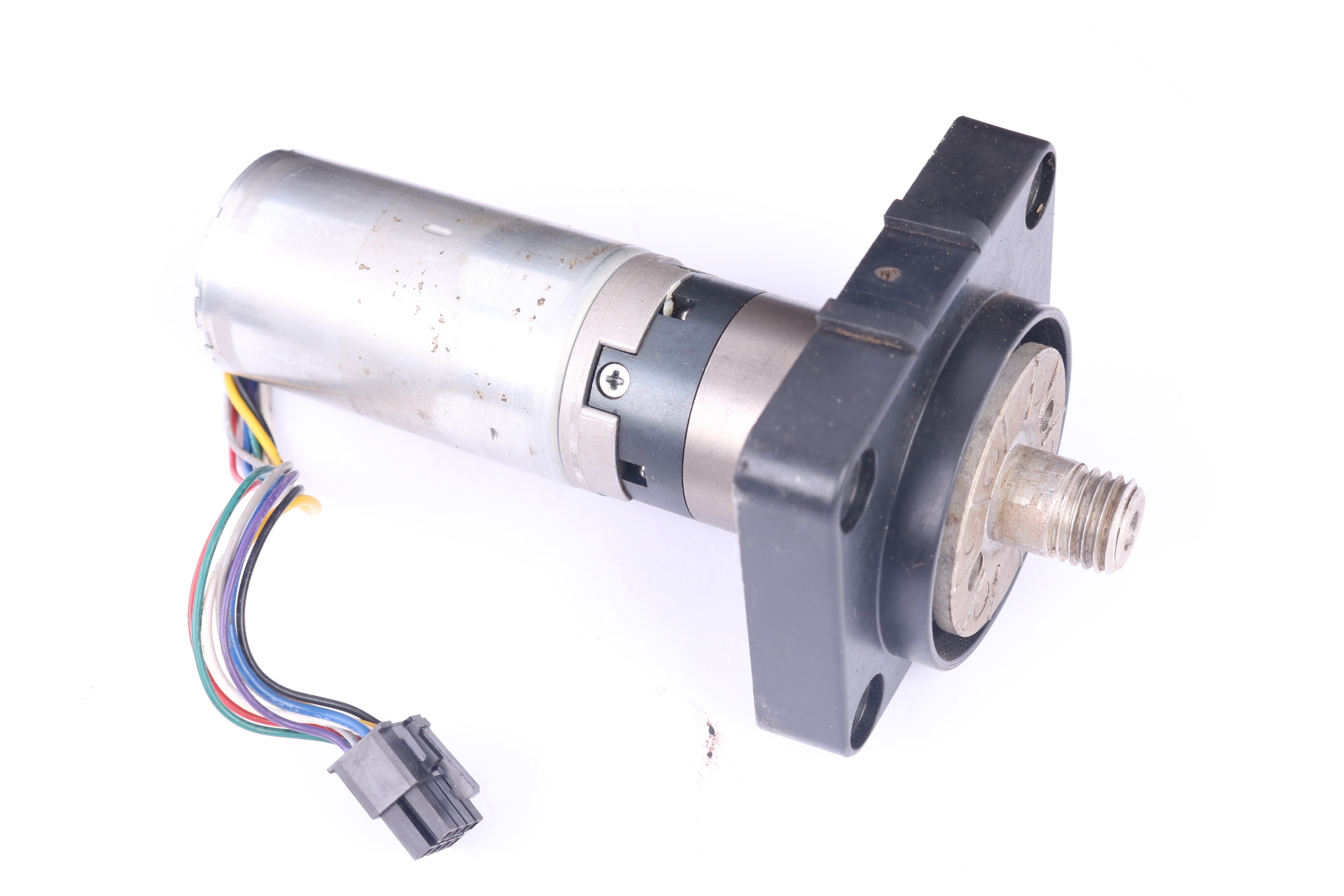

Used, tested wheel motor (drive motor) for Husqvarna Automower. A good fix if the drive becomes noisy or gets blocked.
- Fits selected Automower models (check model year/serial number)
- MPN/number variants: 5863561-01 / 586356101
- Successor according to part history: 5816213-07
- Platform/variant: P2 (Ultra Silent/Drive Wheel)
- Used & function-tested (scope of delivery as pictured)
Tech
- Part group: Drive & wheels
- Item weight: 1015 g
- EAN: 7333377455344
Installation
The mower must be opened for replacement. Check sealing and renew if required afterwards.
Notes:
- A software update may be required when converting from standard to Ultra Silent
- For upgrades standard → Ultra Silent, replace both wheel motors as a pair
- After opening, check/replace the chassis sealing strip
Compatibility
| Model |
Matching part numbers/MPN |
Replaced (verified) |
Note/version |
- Automower 320 – 2015 from serial 1445

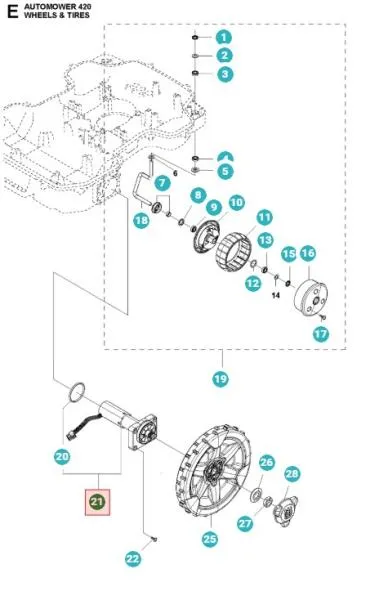

- Automower 420 – 2016–2021 up to serial 210785442
- Automower 440 – from 2016
- Automower 450
- Automower 520 – —
- Automower 550 – up to serial 2308XXXXX
|
- 5863561-01
- 586356101
- 586 35 61-01
- 5816213-07
- 581621307
|
- 586 35 61-01 → 5816213-07
|
P2; check model year/serial; SW update may be needed; replace motors in pairs for upgrades |
not for Automower®® 320 - Modelljahre 2013 und 2014
not for Automower®® 330X - Modelljahre 2013 und 2014
not for Automower®® 420 - ab Modelljahre 2021, 2022, ...
(NICHT für / NOT for !! 581 62 13-01, 587 44 94-02 !!)
• Used & function-tested (workshop checked).
• Wheel motor / drive motor – P2 platform (Drive Wheel).
• Item weight 1015 g, EAN 7333377455344.
• MPN/numbers: 5863561-01 / 586356101; successor 5816213-07.
• Check model year/serial (e.g., Automower 420 up to 210785442).
