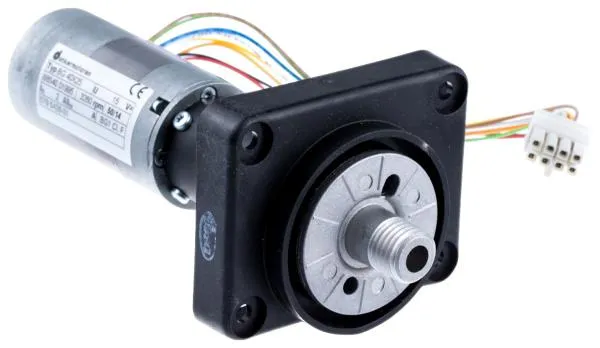

Husqvarna Wheel Motor / Drive Motor Automower® 330X (2013-2014) – MPN 5795426-01
Tested used wheel motor (DUNKER) for the drive of your Husqvarna Automower® 330X (2013-2014). A good fix for no drive, jerky movement or intermittent drive errors.
- Includes O-ring/seal for the motor (check sealing during installation)
- G3-P2 version – only for 330X model year 2013-2014 (not >2015)
- Part numbers: 5795426-01, 579 54 26-01, 579542601
- Shipping weight: 1.03 kg
Specs
- Motor type: DUNKER
- Function: wheel/rear wheel drive
- Wheel nut torque: 18 Nm
Installation
The mower must be opened to replace the motor. To keep the mower watertight, replace the sealing strip after opening.
Make sure the O-ring is seated correctly.
- Verify compatibility by model year and part number
- Renew seals to prevent water ingress
- Tighten wheel nut to 18 Nm
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower® 330X (2013-2014)
| - 5795426-01
- 579 54 26-01
- 579542601
| - 5839444-01
- 5839444-02
- 583944401
- 583944402
| G3-P2 (DUNKER), up to serial no. 1445xxxx; not for 330X >2015 / 440X |
Important: This is a used and tested part. Please compare model year/serial number and part numbers before purchase.
• Used and tested wheel/drive motor (DUNKER) for Husqvarna Automower® 330X (2013-2014)
• Includes O-ring/seal – check correct seating and watertightness
• MPN/part numbers: 5795426-01 / 579 54 26-01 / 579542601
• Replaces (verified): 5839444-01, 5839444-02 (also 583944401/583944402)
• G3-P2 version – not for 330X >2015 or 440X
