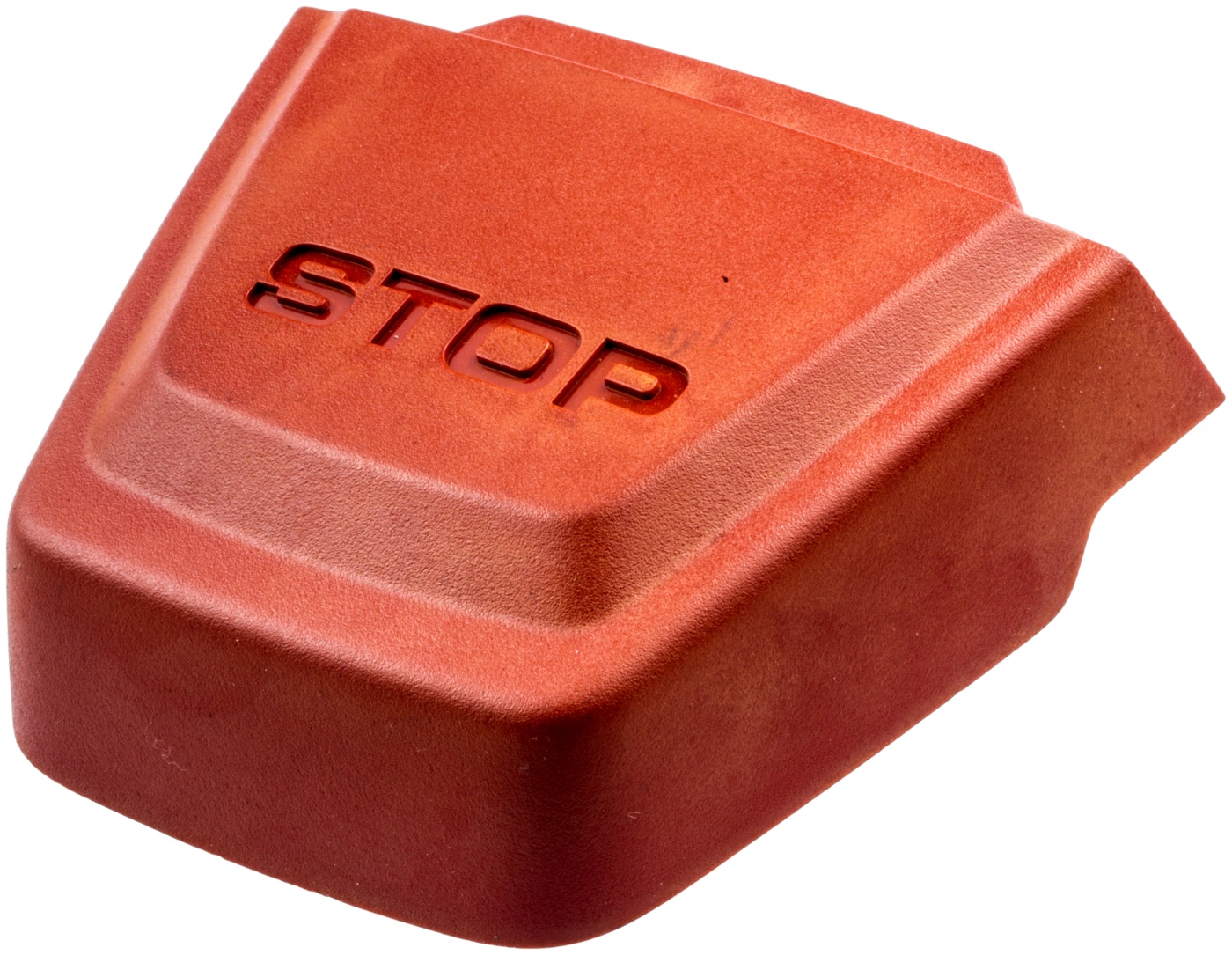

Husqvarna Stop Button – MPN 5744647-01
Genuine Husqvarna stop button for the display cover/control panel – ideal when the button sticks or the stop cover is worn.
- Fits Automower® 105, 305 (up to 2016) and 308
- Color: Red
- OEM numbers: 574464701 / 5744647-01
- Tip: Replace sealing strips when the housing is opened
Specs
- Generation/platform: G3 / P1
- GTIN/EAN: 7391883664803
- Weight: approx. 50 g
Installation
To replace the part, the top cover must be opened.
After installation, test the stop function and re-seal the cover properly.
- Maintain watertight sealing (renew sealing strips)
- 305 up to model year 2016: 3 wheels as identifier
- If unsure, verify platform (G3/P1) and model year
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/version |
|---|
- Husqvarna Automower® 105 – model year 2016–2023
- Husqvarna Automower® 305 – model year 2011–2015
- Husqvarna Automower® 308 – model year 2013–2015
| - 5744647-01
- 574464701
- 574 46 47-01
| - 5744647
- 57446470
- 57446470X
- AM574464701
- 7391883664803
| G3 / P1, red stop button; 305 up to 2016: 3 wheels |
Important: Check model, platform (G3/P1) and model year before ordering.
• Genuine Husqvarna red stop button
• MPN 5744647-01 / OEM 574464701
• Fits Automower® 105, 305 (up to 2016) and 308
• Generation/platform: G3 / P1
• Tip: renew sealing strips when opened
