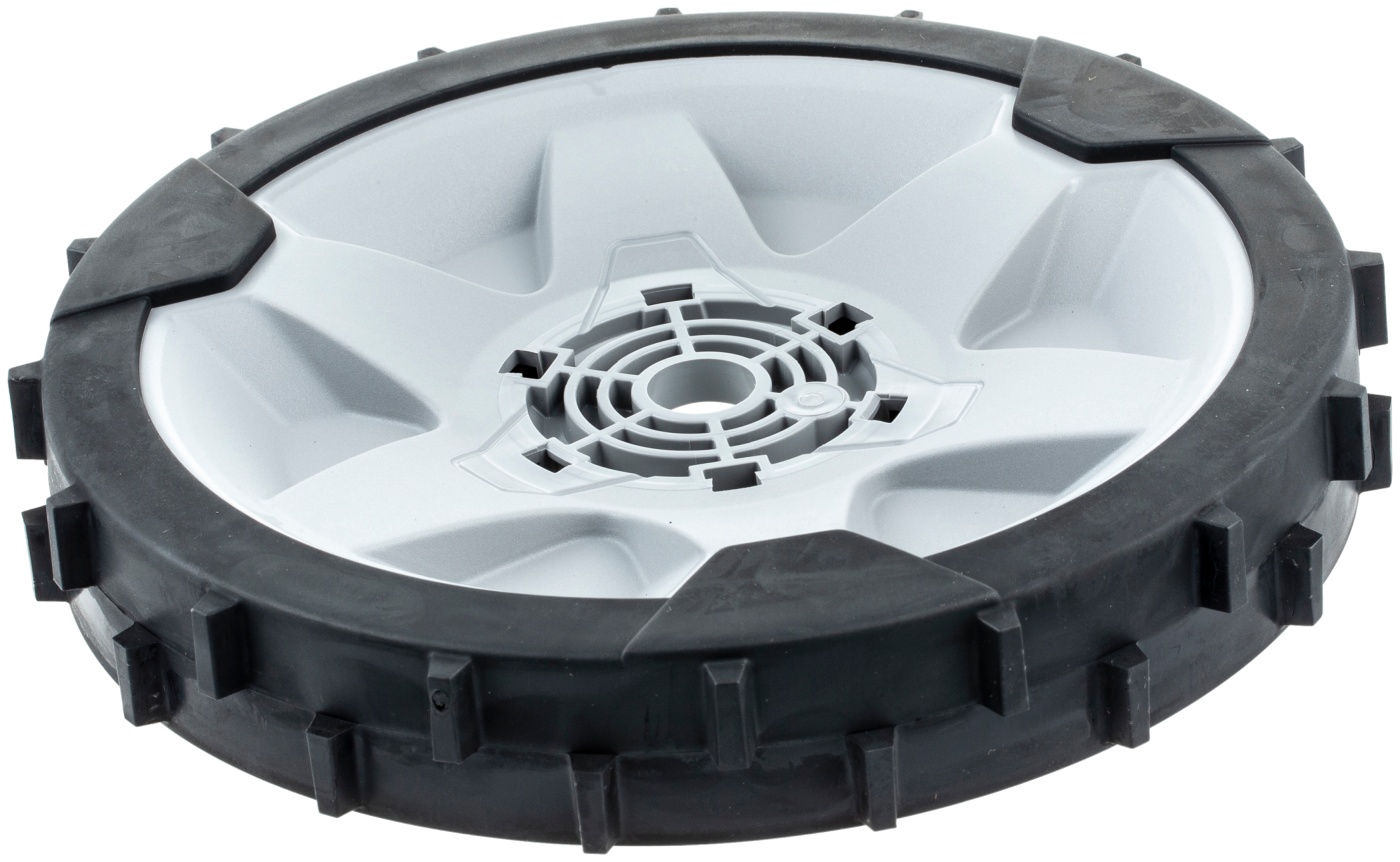

Husqvarna rear wheel Ø210 mm 585066101 (5850661-01)
Used and tested replacement wheel for Husqvarna Automower 305/310/315. Ideal when the rear wheel is worn or traction is poor.
- Scope of delivery: 1x rear wheel (without wheel cap)
- Dimensions: Ø210 mm, width 33 mm
- Material: plastic and rubber, colour grey/black
- Can be fitted left or right
- Number variant: 585066101 (superseded by 590217301)
Technical
- Diameter: 210 mm
- Wheel width: 33 mm
- Material: plastic, rubber
Installation
Loosen the wheel nut, remove the wheel and reinstall the rear wheel securely.
For a safe fit, check the nut and washer and replace if needed.
- Check model year (e.g., Automower 310 from 2015)
- Match number variants: 5850661-01 and 5902173-01
- Wheel cap may be required separately
- After installation, check clearance and secure seating
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Automower 305 – from 2020
- Automower 310 – from 2015
- Automower 310 Mark II – from 2022
- Automower 315 – from 2015
- Automower 315 Mark II – from 2022
- Automower 315X – from 2018
- Automower 315X Limited – 2020
- Automower 535 AWD – from 2019
- Automower 535 AWD EPOS – from 2025
| 585066101, 5850661-01, 585 06 61-01, 590217301, 5902173-01, 590217501, 5902175-01 | 590217301 replaces 5850661-01 and 5902175-01 | Ø210 mm, width 33 mm; supplied without wheel cap |
Important: This is a used and tested part. Please verify model/model year and number variants before purchase.
• Ø210 mm, width 33 mm
• Fits Automower 305/310/315 (see table)
• Check number variants: 5850661-01 / 5902173-01
• Scope: 1x rear wheel without wheel cap
• Used, tested and cleaned
