Husqvarna Kabelhalter Metall für Automower G2/220AC – MPN 535139601

Metal cable holder for Husqvarna Automower – MPN 535139601

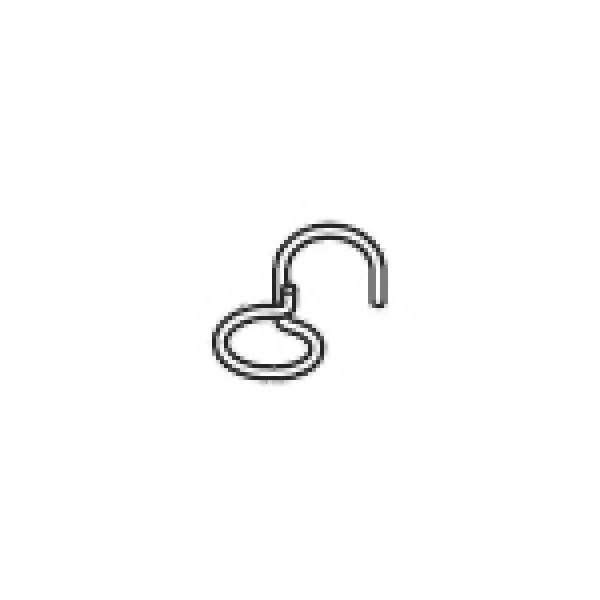

Genuine metal cable holder used as a cable guide at the cutting motor area. A good fix when cables are loose or rubbing on the chassis.

• Fits Automower G2, 210C, 220AC, 230ACX, 260ACX, 265ACX and Solar Hybrid (among others)
• Metal version for stable cable routing
• Compact size: 25 × 15 × 2 mm
• OEM/MPN: 535139601 (also listed as 535 13 96-01)

Technik

• Part type: Cable holder / cable guide
• Material: Metal
• EAN/GTIN: 7391883408179
• Weight: 1 g
• Dimensions: 25 × 15 × 2 mm

Einbau

Switch the mower off and disconnect power before opening the unit. Route the cable cleanly and inspect for any rubbing points.

If the cable is already damaged (pinched/broken), replace it before reassembly.

• Ensure correct seating on the chassis underside
• Do not pinch the cable; keep adequate slack
• After installation, check for free movement around the cutting system/blade disc

Kompatibilität

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Husqvarna Automower® G1 – 1998–2003 Husqvarna Automower® G2 – 2003–2006 Husqvarna Automower® 210C – 2007–2010 Husqvarna Automower® 220AC – 2007–2015 Husqvarna Automower® 230ACX – 2007–2014 Husqvarna Automower® 260ACX – 2009–2011 Husqvarna Automower® 265ACX – 2012–2015 Husqvarna Automower® Solar Hybrid – 2008–2012 Husqvarna Automower® Solar Hybrid (Black Metalic Edition) – 2013–2015 Gardena® R160 (G2) – 2013–2015	535139601, 535 13 96-01, 5351396-01, AM-535139601	5351396, 53513960, 53513960X, AM535139601	Cable guide at cutting motor, mounts on chassis underside

Important: Always match model and model year on the rating plate; small version differences may exist within the G2/200-series.

• Genuine Husqvarna metal cable holder/cable guide – MPN 535139601
• Used for cable routing at the cutting motor area (chassis underside)
• Fits Automower G2, 210C, 220AC, 230ACX, 260ACX, 265ACX, Solar Hybrid and Gardena R160 (G2)
• EAN/GTIN: 7391883408179; size 25×15×2 mm; weight 1 g
