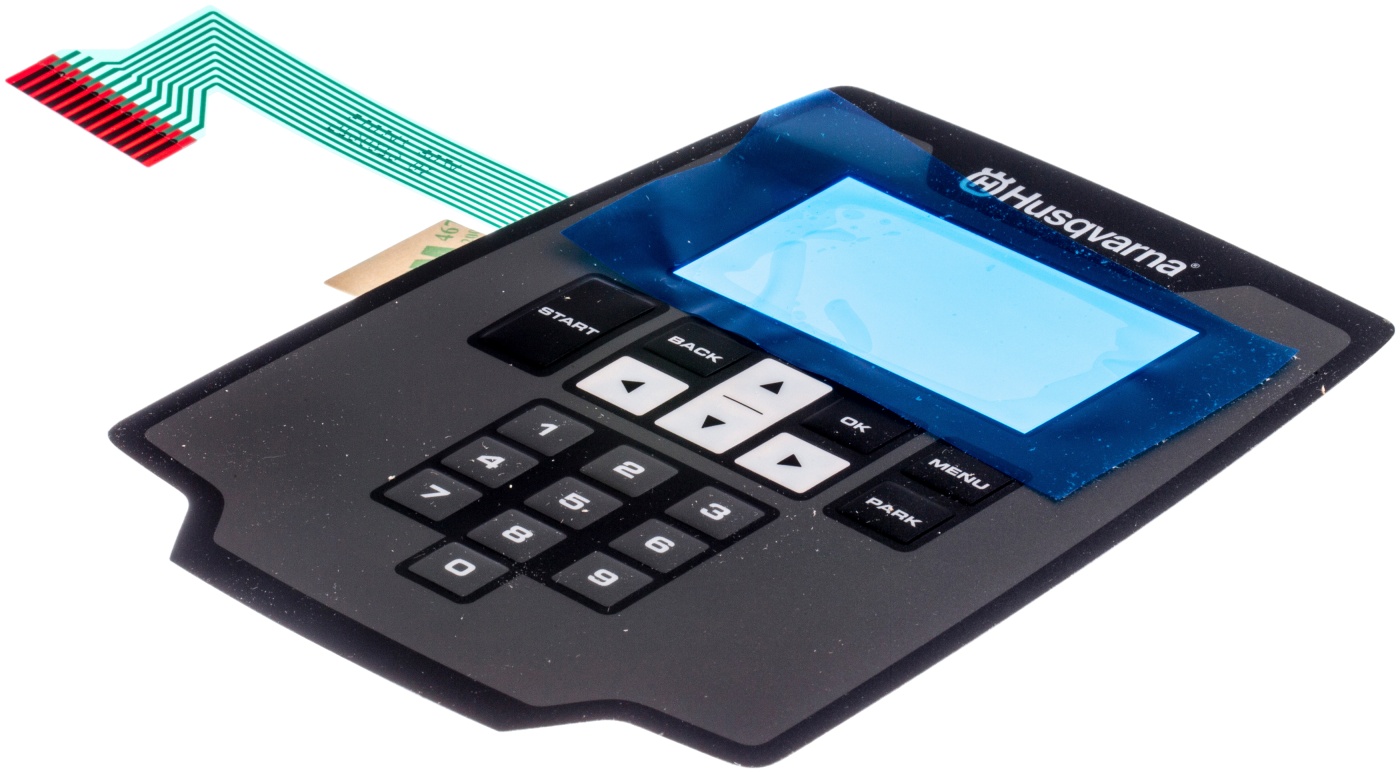

Husqvarna keyboard / keypad membrane – MPN 579627901
Genuine Husqvarna keyboard (keypad membrane) for operating your Automower. Great if buttons are unresponsive or the keypad is damaged. Used and tested.
- Fits Automower 320/420/440 (G3-P2)
- Part number/MPN: 579627901 (HAN)
- Replaces position number: 5796279-01 (verified)
- Pack size: 224 x 210 x 1 mm, weight approx. 45 g
- Used, cleaned and function-tested
Tech
- Type: keyboard / keypad
- Platform: G3-P2
- EAN: 7393080488251
Installation
The control panel must be opened for replacement. Work cleanly to keep the seal intact.
Workshop tip: If the Automower does not react to key presses, reseat the connector on the display unit first and check for oxidation.
- Check sealing strips and replace if needed
- Keep contact areas dry and grease-free
- After installation, test every button
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Automower 320 – 2013–2015
- Automower 420 – from 2016
- Automower 440 – from 2016
| - 579627901
- 5796279-01
- 579 62 79-01
| | G3-P2, control panel/display |
Important: Verify part number and generation on the mower. These are used and tested parts.
• Genuine Husqvarna keypad membrane – used & tested
• Fits Automower 320/420/440 (G3-P2)
• Replaces position number 5796279-01 (verified)
• Pack size 224×210×1 mm, weight approx. 45 g
