Husqvarna Höhenverstellmotor-Kit mit Halter für Schnitthöhenverstellung P2 (G3)

Husqvarna cutting height adjustment motor assembly complete (G3-P2) – MPN 5795651-01

Used and tested cutting-height adjustment motor assembly (motor kit with holder) for Automower® platform P2. Helps when the cutting height no longer adjusts properly or the motor stalls.

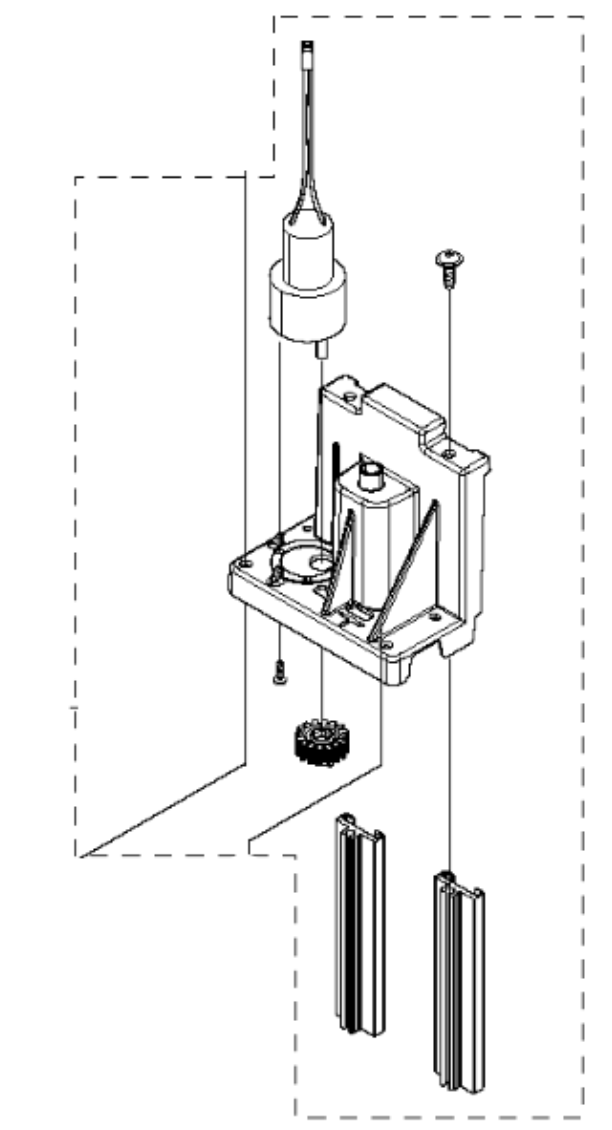

• Kit/Set: cutting height adjustment motor incl. holder
• Fits G3-P2 and selected G4-P2Z/USA variants (see table)
• Part/MPN variants: 579565101 / 5795651-01
• Known successor: 5010683-01 / 501068301
• Shipping weight approx. 370 g

Technical

• Manufacturer: Husqvarna
• EAN/GTIN: 7391736145657
• 2 terminals (2-pin)
• Motor dimensions (verified): length 79 mm; outer diameters 24 mm and 37 mm
• More dimensions (verified): mounting hole Ø2 mm; hole spacing 15.5 mm, 26.5 mm, 31 mm; drive width 9 mm

Installation

The mower must be opened for installation. Replace sealing strips to keep the chassis watertight after reassembly.

Notes:

• Renew seals/membrane after opening
• Check connector and cable routing before closing
• On some models, (re-)programming/initialization may be required after replacement

Compatibility

Model	Matching part numbers/MPN	Replaces (verified)	Note/version
Husqvarna Automower® 320 – 2013-2015 Husqvarna Automower® 330X – 2013-2015 Husqvarna Automower® 420 – 2016-2023 Husqvarna Automower® 430X – 2016-2023 Husqvarna Automower® 430XH (USA) – 2019-2022 Husqvarna Automower® 440 – 2017-2022 Husqvarna Automower® 450X – 2016-2023 Husqvarna Automower® 450XH (USA) – 2019-2022 Husqvarna Automower® 520 – 2018-2023 Husqvarna Automower® 520 EPOS – 2024-2025 Husqvarna Automower® 550 – 2018-2023 Husqvarna Automower® 550 EPOS – 2021-2024 Husqvarna Automower® 550H EPOS (USA) – 2021-2022 Husqvarna Automower® 550H USA – 2019-2020;2022	5795651-01, 579565101, 579 56 51-01, 579 56 51 01, 5010683-01, 501068301, 5100187-03, 510018703, 5795647-01, 579564701, 5803421-01, 580342101	5010683-01 / 501068301	G3-P2/P2C/P2H sowie G4-P2Z je nach Modell; Dichtungen beim Öffnen erneuern

Important: Verify model, platform and model year using the table. If unsure, compare part numbers/MPN.

• Cutting-height adjustment motor kit incl. holder (P2)
• Fits multiple Automower® G3/G4 models (see table)
• Part/MPN variants: 579565101 / 5795651-01
• Successor/compatible: 5010683-01 / 501068301
• Used & tested; renew seals after opening
