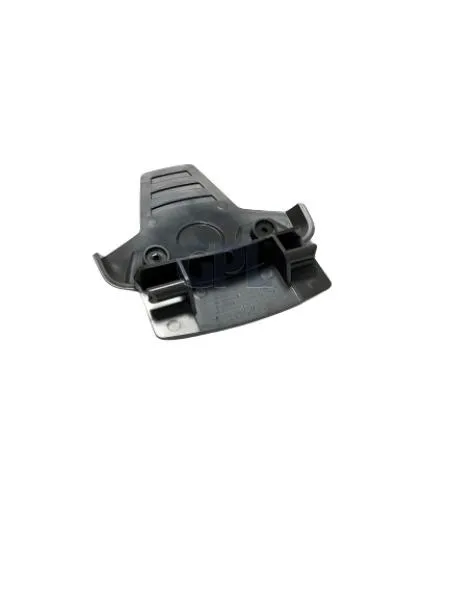

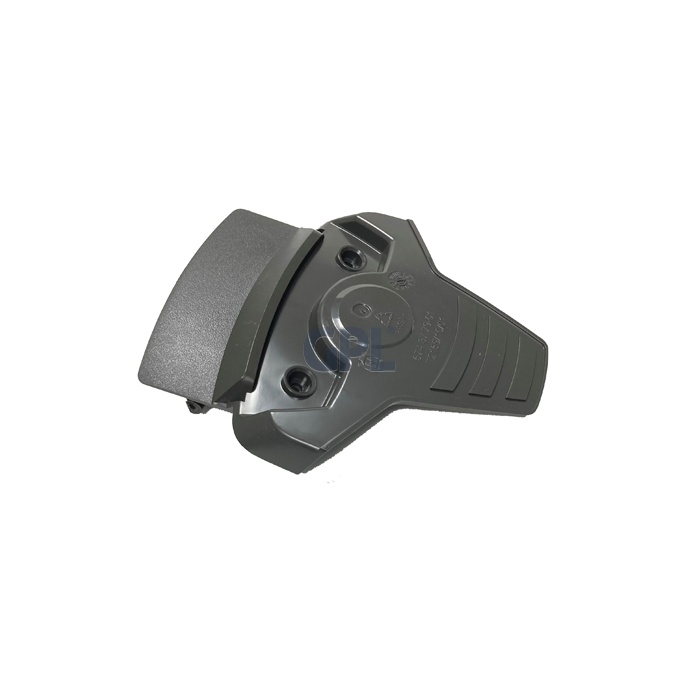

Husqvarna hinge for height adjustment lid – MPN 5743779-01
This hinge secures the height-adjustment/display flap so the stop button can open and close properly.
- Genuine Husqvarna spare part (Husqvarna Automower 105 spare parts / Automower 305 spare parts)
- For the height adjustment lid / display flap (stop button cover)
- Part number/MPN: 5743779-01 / 574377901
- G3 / P1 platform (model-year dependent)
- Scope of supply: 1× hinge
Tech
- Part type: hinge
- Generation/platform: G3 / P1
- Weight: approx. 50 g
Installation
The mower has to be opened for replacement. Keep sealing surfaces clean to maintain water tightness.
If the cover has been opened before or shows leaks, check the sealing strip and replace if necessary.
- Attach the flap to the hinge using the existing screws
- Check smooth movement: the flap must not bind
- Test the stop button function after assembly
- Clean sealing surfaces and close the housing properly
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/Version |
|---|
- Husqvarna Automower 105 – 2016–2023
- Husqvarna Automower 305 – 2011–2015
- Husqvarna Automower 308 – 2013–2015
| - 5743779-01
- 574377901
- 574 37 79-01
| - 5743779
- 57437790
- 57437790X
- AM574377901
| G3 / P1; for Automower 305 pre-2020 version (305 from 2020/4 wheels differs) |
Important: Always verify model year/version and compare part numbers before ordering.
• Genuine Husqvarna hinge for the height-adjustment/stop-button flap (MPN 5743779-01).
• Fits Automower 105 (2016–2023), 305 (2011–2015) and 308 (2013–2015).
• Replaces older numbers incl. 5743779 / 57437790 / 57437790X.
• G3 / P1 platform – verify model year/version before ordering.
• Weight approx. 50 g (0.05 kg).
