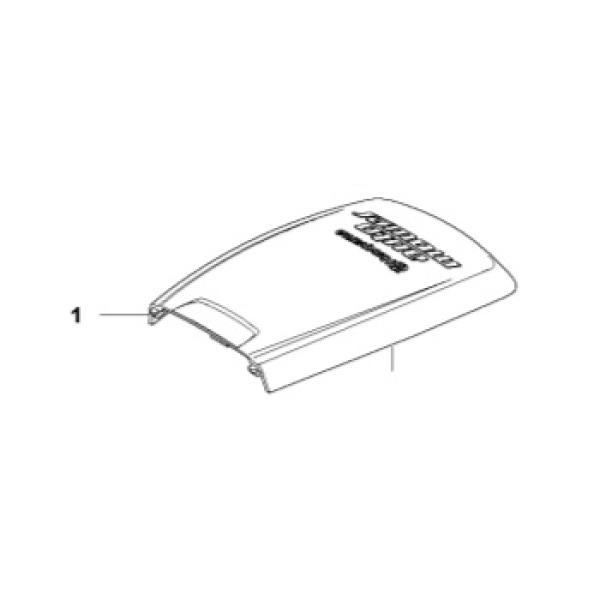

Grey flap / display cover – MPN 5887976-03
Genuine Husqvarna cover for the control unit (display/keypad). Fits Automower 105 plus Automower 305 (up to 2019) and Automower 308.
- Color: grey
- Protects display and keypad from dirt and moisture
- Reference numbers: 588797603 / 574378102 / 5887976-03
- Check model year compatibility (see table)
- For sealing: check/replace sealing strips when opening
Tech
- Part: control unit flap/cover
- Position: upper control area
- Function: covers and protects display/keypad
Installation
To replace, the upper section must be opened. Work cleanly to avoid moisture ingress.
Before closing, inspect the seal and clean the sealing surfaces.
- Replace sealing strips if worn
- Check hinge/spring movement
- After installation, test STOP button and controls
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/Version |
|---|
- Husqvarna Automower 105 – 2016–2020
- Husqvarna Automower 305 – 2011–2015 (up to 2019 per source)
- Husqvarna Automower 308 – 2013–2015
| - 574378102
- 588797603
- 5887976-03
| - 580792901
- 580792902
- 588797302
- 588797303
- 588797601
| 305 from model year 2020 differs (4 wheels) – please verify year/chassis. |
Important: Automower 305 from model year 2020 differs (4 wheels). Please match model year and part numbers.
• Genuine Husqvarna flap/cover for display & keypad
• Fits: Automower 105 plus 305 (up to 2019) and 308
• Refs: 588797603 / 574378102 / 5887976-03
• Check/replace sealing strips when opening
• Color: grey
