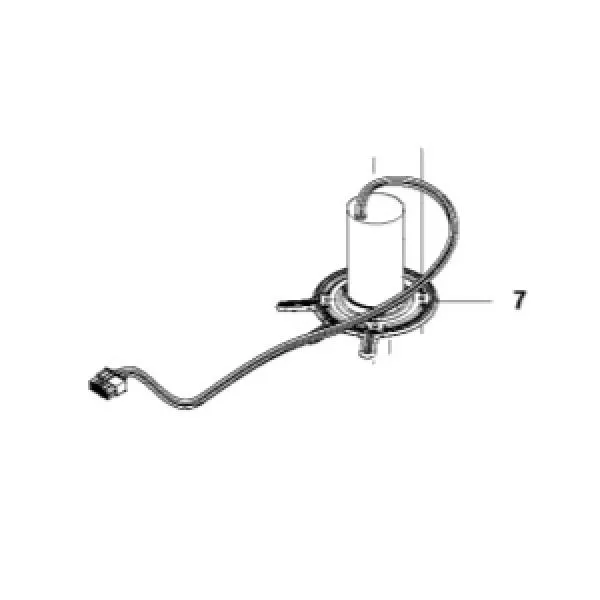

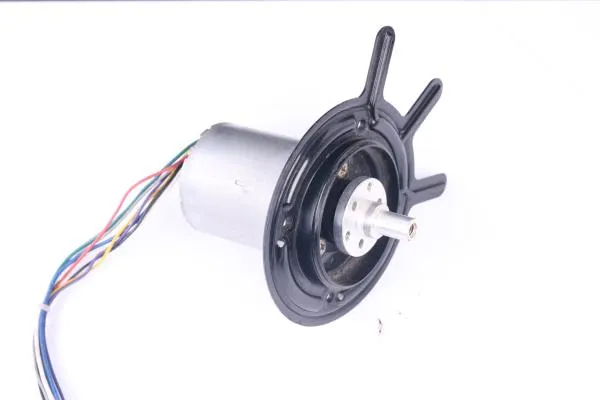

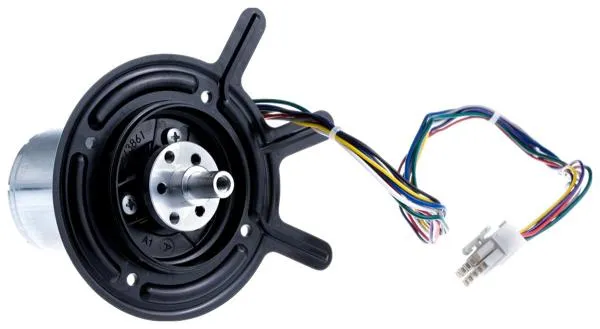

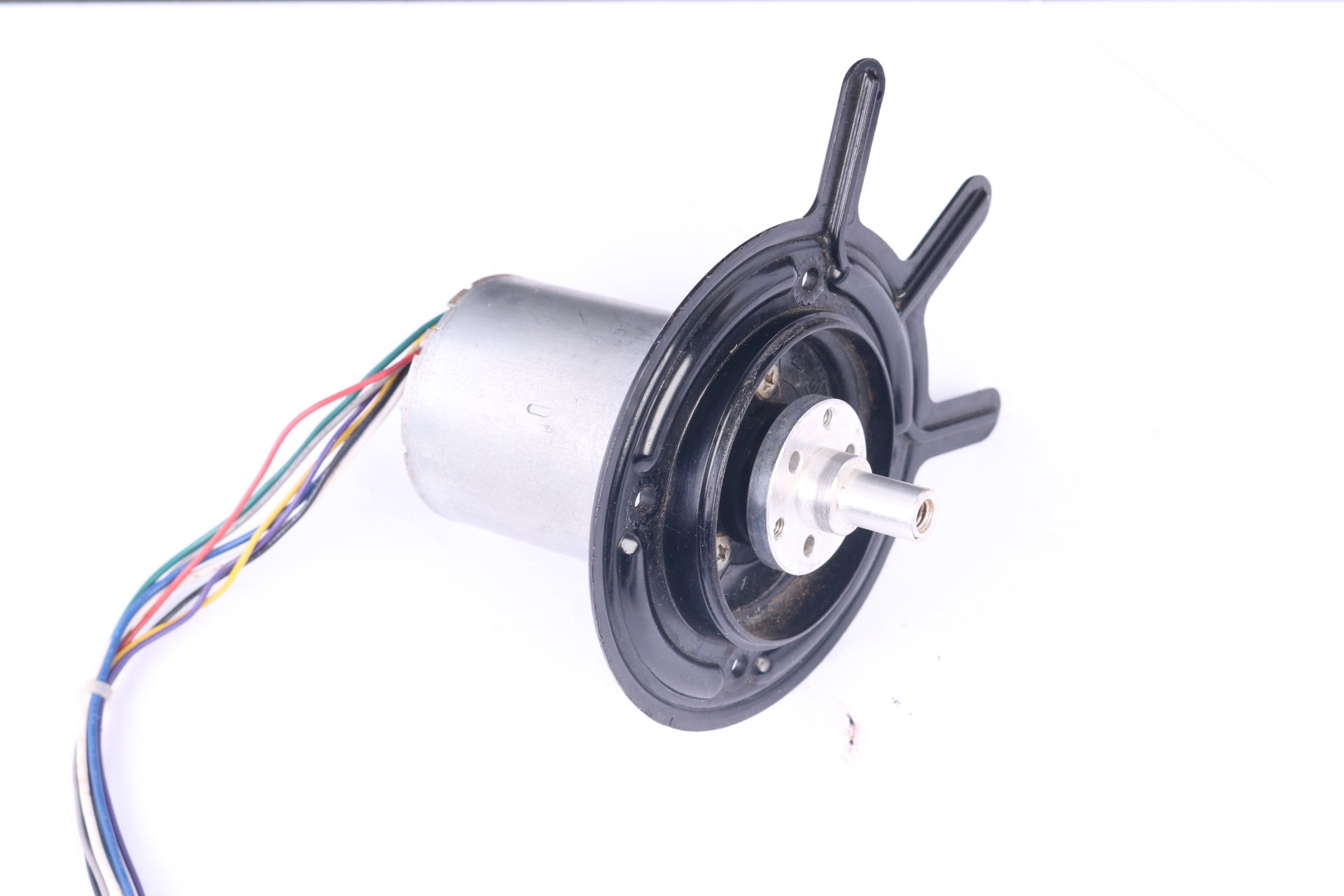

Husqvarna cutting motor / blade motor 587381401
Tested, used cutting motor for Husqvarna Automower 400/500 series. A good fix for “cutting system blocked” messages or a damaged motor mount.
- Genuine Husqvarna part numbers: 587381401 / 5873814-01
- Plug & play: no software update required
- Replaces (proven): 5802348-01
- Shipping weight approx. 0.88 kg
- Fits G3 P2 models from 2016 and selected EPOS versions
Tech
- Function: drives the cutting disc / blade system
- EAN: 7391736206716
Installation
The mower must be opened for replacement. Keep sealing surfaces clean.
Tip: renew sealing strip/membrane when opening the chassis.
- Check watertightness after installation
- Make sure the connector is fully seated
- Verify the cutting disc sits correctly
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
- Automower 420 – from 2016
- Automower 430X – from 2016
- Automower 440 – from 2017
- Automower 450X – from 2016
- Automower 520 – from 2018
- Automower 520 EPOS – 2024–2025
- Automower 550 – from 2018
- Automower 550 EPOS – 2021–2024
- Automower 430XH (USA) – 2019–2022
- Automower 450XH (USA) – 2019–2022
- Automower 550H EPOS (USA) – 2021–2022
- Automower 550H USA – 2019, 2020, 2022
| 587381401, 5873814-01, 587 38 14-01, 5873814, 58738140, 587381402, 58738140X, AM587381401, 322016, 7391736206716 | 5802348-01 | G3 P2 (2016–2023) and EPOS depending on model; renew sealing strip when opening |
Important: check generation/serial range and compare the numbers on your old part before ordering.
• Used & tested part
• Plug & play (no software update)
• Replaces (proven): 5802348-01
• Fits Automower 420/430X/440/450X/520/550 (incl. EPOS variants)
• EAN 7391736206716
