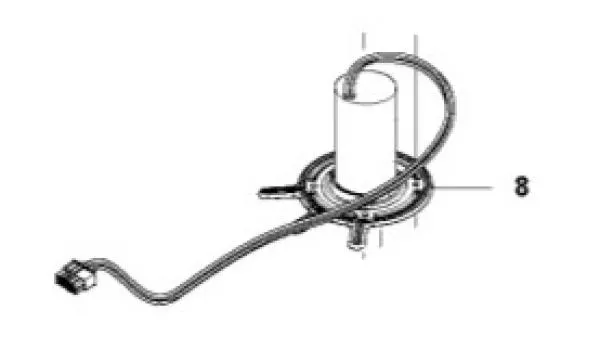

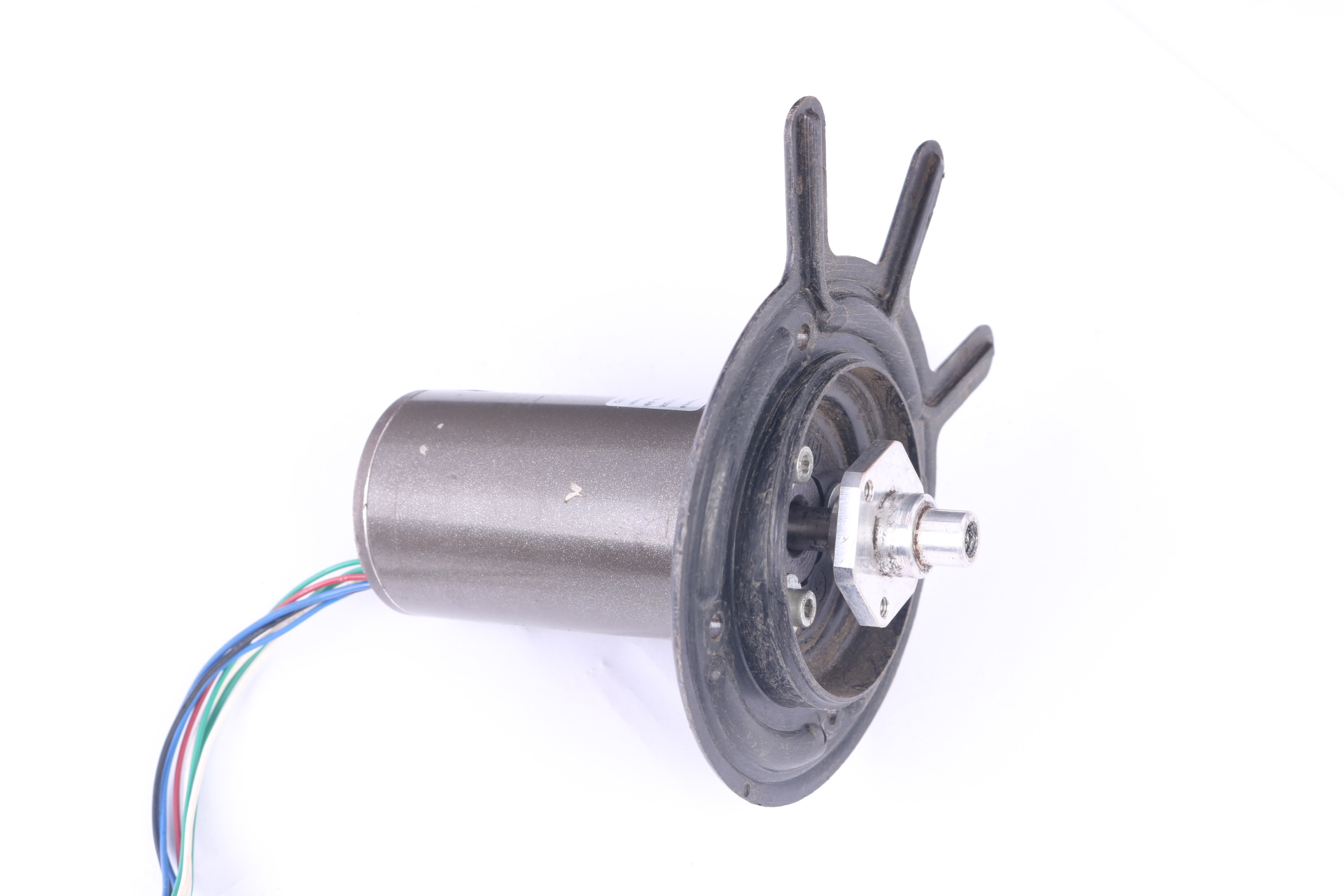

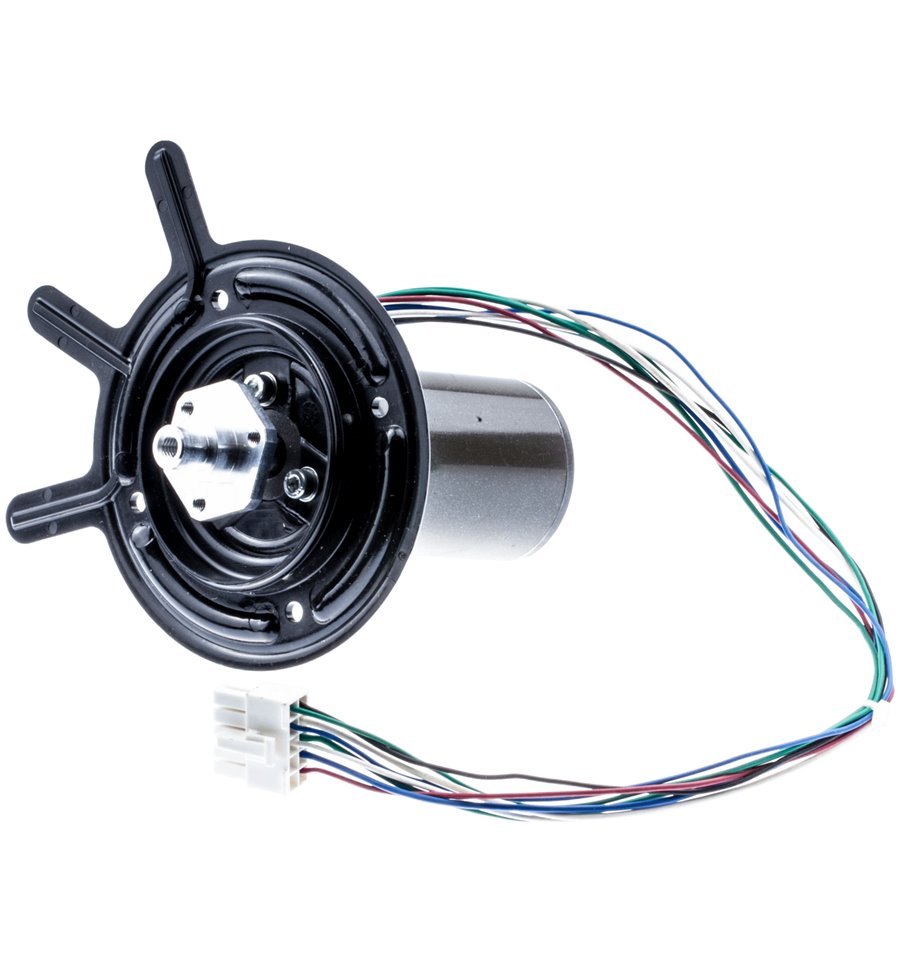

Husqvarna cutting motor assembly 5802348-01
Used, tested cutting/blade motor for Husqvarna Automower 320 & 330X. Helps with “cutting system imbalance” / unbalance errors.
- OEM complete unit incl. bracket (plate not available separately)
- Part no. 5802348-01 / 580234801 (superseded by 5853503-01)
- For platform P2, generation G3 (model years 2013–2015)
- Replace sealing tape/strips after opening the chassis
Tech
- Component: cutting motor (Type 3)
- Shipping weight: approx. 0.84 kg
- Manufacturer: Husqvarna
Installation
Plug-and-play replacement, but the robot must be opened.
To keep it watertight, renew the sealing.
- Always replace sealing tape/strips
- Do not remove the metal flange (glued & balanced unit)
- Run a test cycle after installation
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower 320 – 2013–2015
- Husqvarna Automower 330X – 2013–2015
| - 5802348-01 / 580234801
- 5802348-02 / 580234802
- 5853503-01 / 585350301
- 5853503-02 / 585350302
- 58535030X
- AM580234801 / AM585350301
| - 5853503-01 supersedes 5802348-01
| G3 / P2; complete unit; typical issue: cutting system imbalance |
Important: verify model year and platform (G3/P2); this item is used and tested.
• Complete cutting motor incl. bracket (Type 3)
• For Automower 320 & 330X (G3/P2, 2013–2015)
• Superseded by 5853503-01 (replaces 5802348-01)
• Renew sealing tape/strips after opening
• Used & tested
