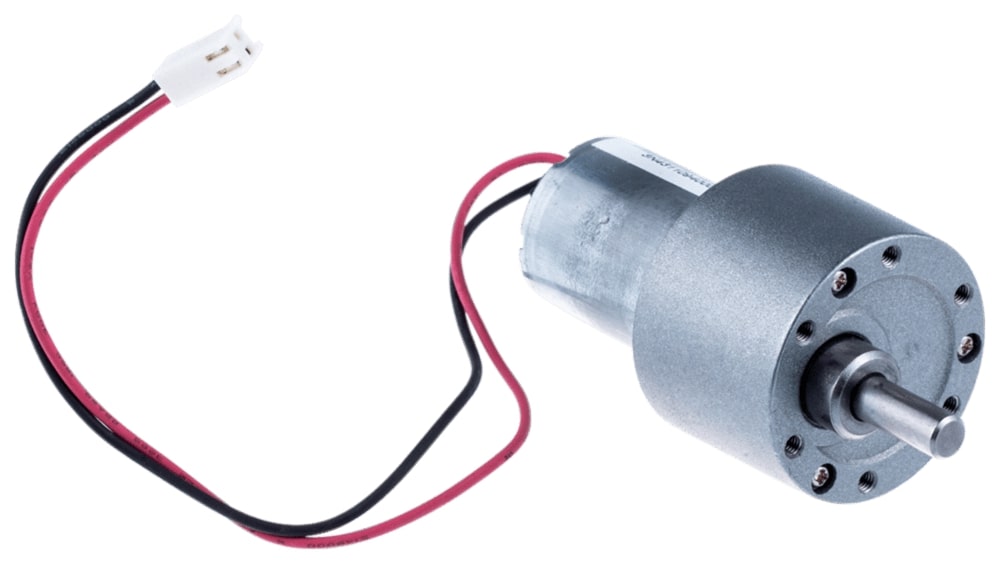

Husqvarna cutting height adjustment motor 5803421-01
Used, tested motor for cutting height adjustment for Husqvarna Automower spare parts. Compatible depending on model year, e.g. Automower 320, 420 and 550.
- MPN: 5803421-01 / 580342101
- Function tested, ready to install
- Common successor: 5010683-01 (501068301) as a kit with bracket
- Replace sealing strip after opening the chassis
Tech

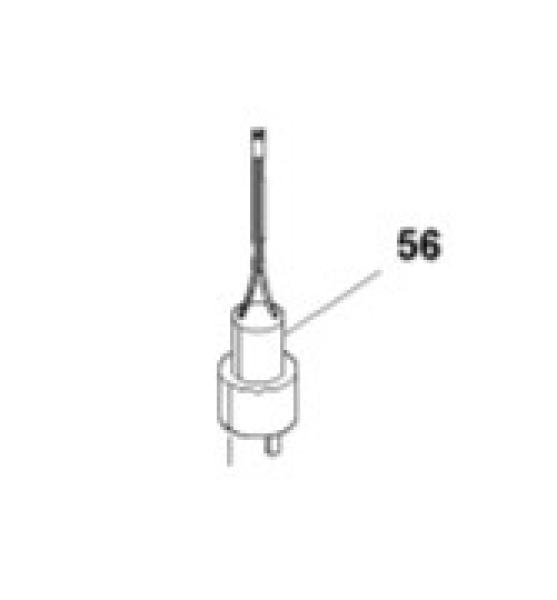

- Part: cutting height adjustment motor
- Generation/Platform: G3 / P2
- Condition: used, tested
Installation
The mower has to be opened for installation. Make sure the unit is sealed properly afterwards.

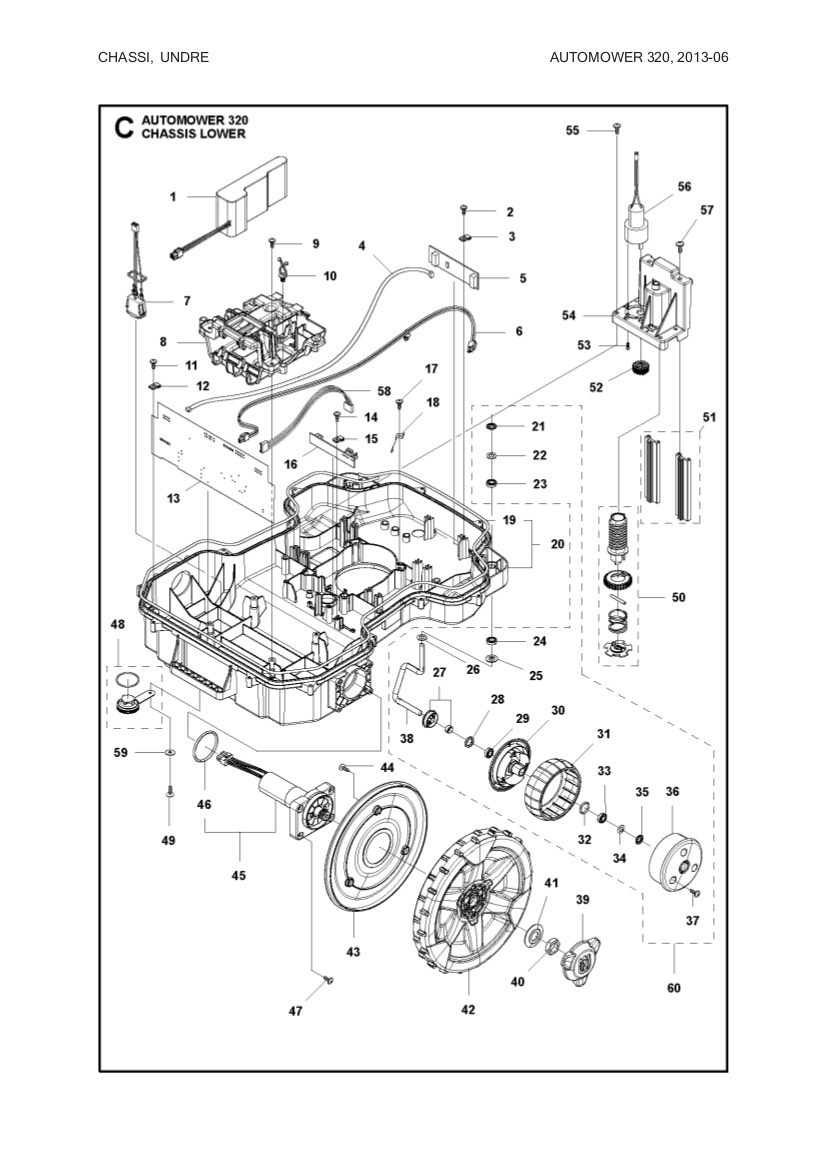

Please verify model and model year in the parts list before ordering.
- Check sealing strip and plugs
- Disconnect cables and plugs with power off
- Verify cutting height after installation
Compatibility
| Model | Compatible part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Automower 320 – 2013–2015
- Automower 330X – 2013–2015
- Automower 420 – 2016–2023
- Automower 430X – 2016–2023
- Automower 440 – 2017–2022
- Automower 450X – 2016–2023
- Automower 520 – 2018–2023
- Automower 550 – 2018–2023
| 5803421-01, 580342101, 580 34 21-01, 5010683-01, 501068301 | — | Legacy number 5803421-01 is discontinued; current replacement is usually 5010683-01/501068301 as a kit with bracket (motor/bracket not sold separately). Renew sealing strip after opening. |
Important: Please match the part number variants (with/without hyphens/spaces) and the model year.
• Used & tested cutting height adjustment motor
• MPN variants: 5803421-01, 580342101, 580 34 21-01
• Compatible depending on model year: Automower 320/330X and 420/430X/440/450X/520/550
• Note: successor often supplied as kit 5010683-01 (501068301) with bracket
• After opening the chassis, renew sealing strip and check water tightness
