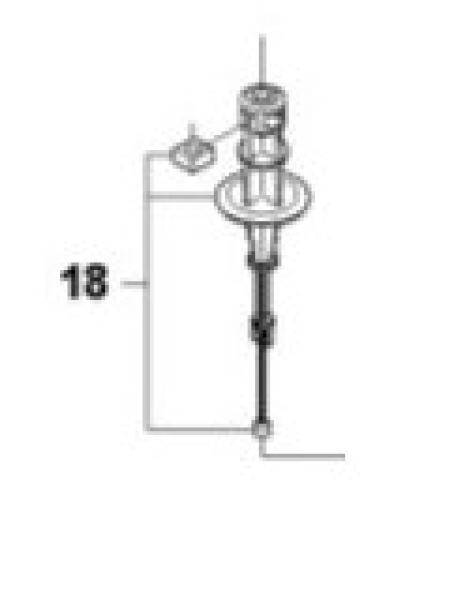

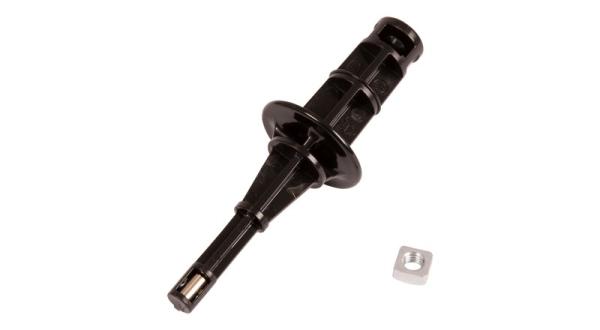

Husqvarna column (COLUMN) for collision sensor/joystick – MPN 579248801
Used and tested column (COLUMN) as part of the bumper/collision sensor system. Helpful for errors like “Collision sensor active”.
- Original Husqvarna part number: 579248801 (5792488-01)
- Replacement/upgrade: superseded by 501122602 (GPL 5011226-02)
- Confirm model year and number variants before ordering
- Scope of delivery: 1x column (COLUMN), used & tested
- Note: renew seals/sealing strips after opening the mower
Tech
- Parts group: Electronics & sensors
- Function: Mechanical element of the collision sensor (joystick/column)
- Weight: approx. 50 g
Installation
Installed in the collision/bumper sensor area under the cover. Work carefully when the mower is opened.
Verify part numbers, model year and version first.
- Water tightness: replace sealing strips/membranes after opening
- For “collision sensor active”, check body fit and joystick magnet first
- Run a collision sensor function test after installation
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Automower 220AC – 2012–2015
- Automower 230ACX – 2012–2015
- Automower 260ACX – 2011
- Automower 265ACX – 2012–2015
- Automower 320 – 2013–2015
- Automower 330X – 2013–2015
- Automower 420 – 2016–
- Automower 430X – 2016–
- Automower 440 – 2017–
- Automower 450X – 2016–
- Automower 520 – 2018–
- Automower 550 – 2018–
- SOLAR HYBRID – 2012–2014
- R160 – 2013–2015
| 579248801, 5792488-01, 579 24 88-01, 501122602, 5011226-02, 501 12 26-02 | 501122602 supersedes 579248801 | Collision sensor joystick column; also check body fit for bumper sensor faults |
Important: always confirm compatibility by model year and part numbers. This is used and tested stock.
• Used & tested: column (COLUMN) for bumper/collision sensor joystick
• MPN 579248801 (variants: 5792488-01 / 579 24 88-01)
• Superseded by 501122602 (GPL 5011226-02)
• Fits various Automower models (e.g., 220AC–550, Solar Hybrid)
• Note: renew seals/sealing strips after opening the mower
