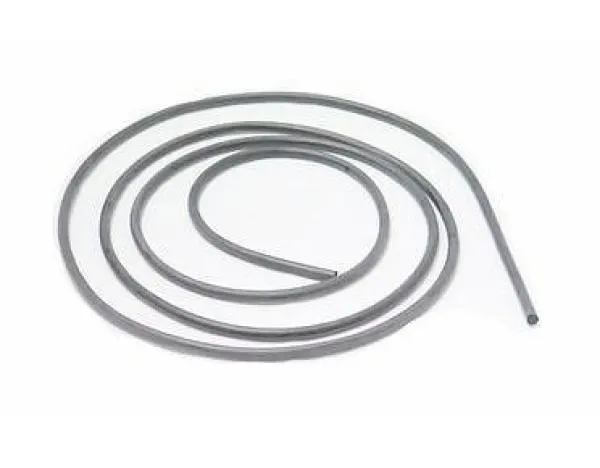

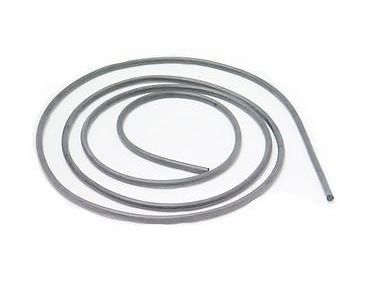

Husqvarna Dichtungsstreifen Chassis Ø5 mm – 5819032-01

Genuine Husqvarna sealing tape for the chassis/body joint (P2 platform). Perfect after opening the mower so the housing is sealed again. Used & tested.

Length approx. 182 cm, diameter approx. 5 mm
Helps protect the inside from dirt and moisture
For Automower 320–550 (G3/P2)
Compatible numbers: 581903201 / 5819032-01 / 5748747-05

Technik

Type: sealing strip
Diameter: 5 mm
Platform: P2
Generation: G3

Einbau

Remove the old seal completely and clean the sealing surfaces.

Press the new strip in evenly around the housing without stretching it.

Surfaces must be clean and grease-free
Do not stretch the strip, otherwise the joint may leak
After closing, check seating and tightness

Kompatibilität

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Automower 320 – 2013-2016 Automower 330X – 2013-2016 Automower 420 – ab 2016 Automower 430X – ab 2016 Automower 440 – ab 2017 Automower 450X – ab 2016 Automower 520 – ab 2018 Automower 550 – ab 2018	5819032-01,581903201,581 90 32-01,5748747-05,574874705,574 87 47-05	Ersetzt: 581 90 32-01	G3 / P2, Chassis-/Gehäuseabdichtung

Important: verify model year/platform and check for tightness after installation. Used & tested.

• Genuine Husqvarna sealing tape for the chassis/body joint
• Length approx. 182 cm, diameter approx. 5 mm
• Helps protect the inside from dirt and moisture
• For G3 / P2 platform (320, 330X, 420, 430X, 440, 450X, 520, 550)
• Used & tested; check for tightness after installation
