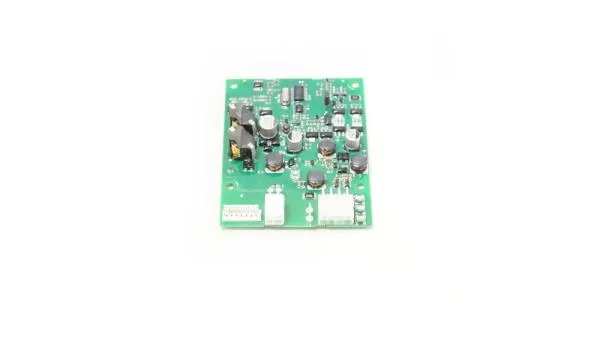

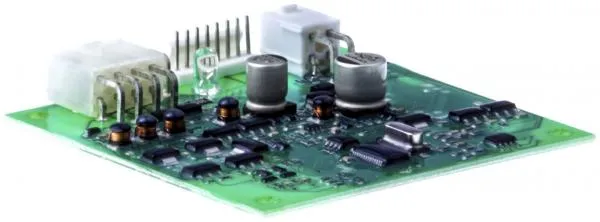

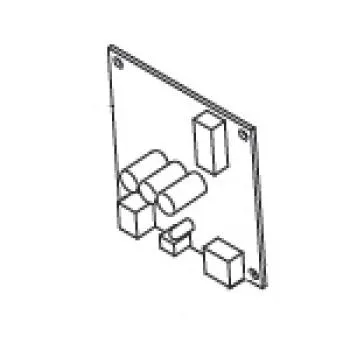

Charging station circuit board (G2) for Husqvarna Automower – 5787885-02
This control PCB is designed for older Husqvarna Automower® G2 charging stations. A good fix when the mower does not charge properly or the loop signal is missing.
- Genuine Husqvarna spare part: MPN 5787885-02 (also 578788502 / 578 78 85-02)
- Two white connector sockets: 4-pin and 8-pin
- For model years 2007–2009 (G2/old version)

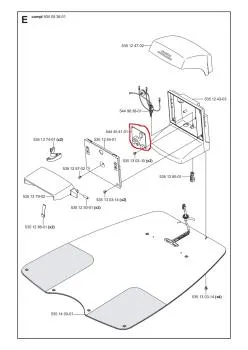

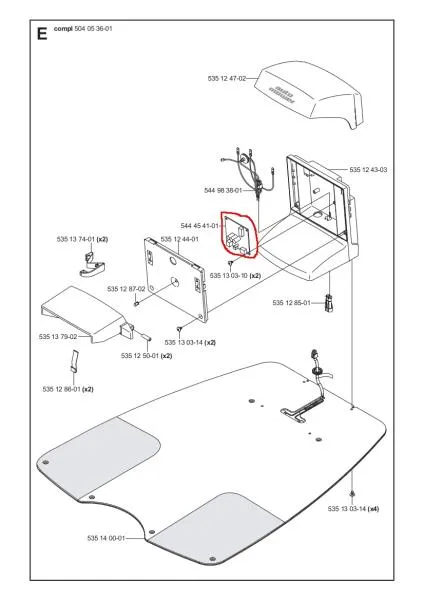

- Only for the old base plate: 535140002 or 535140001
- Replaces e.g. 5444541-01 / 5444541-02 / 5444541-03
Technical details
- Part: Charging station control PCB / circuit board (loop amplifier compatible)
- EAN/GTIN: 7391883745915
- Connection: 4-pin + 8-pin sockets
Installation
Please verify your charging plate/base plate version before installation. This board fits only the older base plate design.
If your station already uses the newer base plate version (from around 2010/2011), a retrofit kit is usually the better solution.
- Check the mower year on the mower's rating plate
- Compare the 4-pin/8-pin connector layout
- After assembly, ensure proper seating and sealing of the station
Compatibility
| Modell | Baujahre | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
| Husqvarna Automower® 220AC | | - 5787885-02
- 578788502
- 578 78 85-02
- AM-578788502
| - 5444541-01
- 5444541-02
- 5444541-03
- 5444542-01
- 5787885-01
- 5787885-03
| Old base plate only: 535140002/535140001. |
| Husqvarna Automower® 230ACX | | - 5787885-02
- 578788502
- 578 78 85-02
- AM-578788502
| - 5444541-01
- 5444541-02
- 5444541-03
- 5444542-01
- 5787885-01
- 5787885-03
| G2/old charging station, 4-pin & 8-pin sockets. |
| Husqvarna Automower® 260ACX | | - 5787885-02
- 578788502
- 578 78 85-02
- AM-578788502
| - 5444541-01
- 5444541-02
- 5444541-03
- 5444542-01
- 5787885-01
- 5787885-03
| Old version only; verify base plate. |
| Husqvarna Automower® Solar Hybrid | | - 5787885-02
- 578788502
- 578 78 85-02
- AM-578788502
| - 5444541-01
- 5444541-02
- 5444541-03
- 5444542-01
- 5787885-01
- 5787885-03
| G2/old charging station; check base plate version. |
Important: Always match the base plate (535140002/535140001) and connector version before ordering.
• Genuine Husqvarna charging station PCB (G2) – MPN 5787885-02
• Two connector sockets: 4-pin & 8-pin
• For 2007–2009 (old generation charging station)
• Old base plate only: 535140002 / 535140001
• EAN/GTIN: 7391883745915
