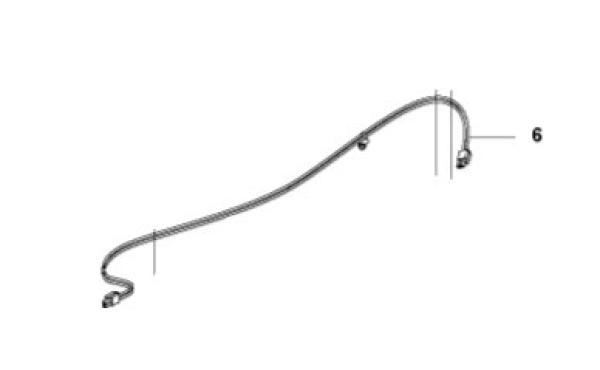

Husqvarna Ladekabel / Kabelbaum Charging Link AWG16 L=700mm (5803707-01)

Husqvarna charging link wiring harness AWG16 L=700mm (5803707-01)

Used and tested charging link wiring harness for the Automower charging circuit. Connects the charging contacts in the movable cover to the main PCB.

• Genuine Husqvarna wiring/charging cable, tested
• Spec: Charging Link AWG16, length 700 mm
• Part no. set: 5803707-01 (580370701)
• Update: 5341566-02 replaces 5803707-01/02 and 5311445-03
• Tip: “charging system problem” can be caused by cable/pins/contacts

Technical

• Function: charging contacts ↔ main board connection
• Cable: AWG16, L=700 mm
• GTIN/EAN: 7333377072770

Installation

Installation is inside the robot and requires opening the housing.

Seal check: after opening, replace/inspect sealing strips or membranes.

• Clean sealing surfaces and renew seals if needed
• Check plugs/pins for heat damage and tight fit
• For “charging system problem”, often replace both sides: internal charging cable and charging contact harness

Compatibility

Model	Matching part numbers/MPN	Replaces (proven)	Notes/version
Husqvarna Automower 320 (2013–2015) Husqvarna Automower 330X (2013–2015) Husqvarna Automower 420 (2016–2023) Husqvarna Automower 430X (2016–2023) Husqvarna Automower 440 (2017–2022) Husqvarna Automower 450X (2016–2023) Husqvarna Automower 520 (2018–2023) Husqvarna Automower 520 EPOS (2024–2025) Husqvarna Automower 520H (—) Husqvarna Automower 550 (2018–2023) Husqvarna Automower 550 EPOS (2021–2024) Husqvarna Automower 550H (—) Husqvarna Automower 550H EPOS (USA) (2021–2022) Husqvarna Automower 430XH (—) Husqvarna Automower 450XH (—)	5803707-01, 580370701, 5803707-02, 580370702, 580370703, 5311445-03, 531144503, 5341566-02, 534156601, 534156602, AM-534156602, 7333377072770	5341566-02 ersetzt 5803707-01/02 und 5311445-03 (belegt)	Charging Link AWG16, L=700mm; bei „Problem Ladesystem“ oft mit Ladekontakte-Kabelsatz/Steckern prüfen

Important: match model/model year and the part-number variants before ordering. Item is used and tested.

• Used & tested internal charging link cable
• AWG16, length 700 mm
• Fits 5803707-01 (580370701)
• Update: 5341566-02 replaces 5803707-01/02, 5311445-03
• For Automower 320/330X/420/430X/440/450X/520/550 incl. EPOS/H variants
