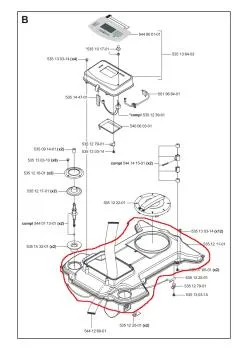

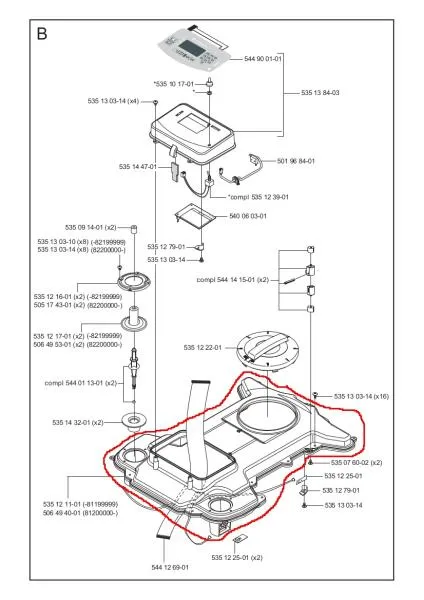

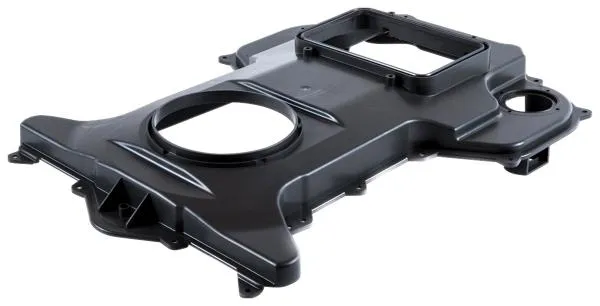

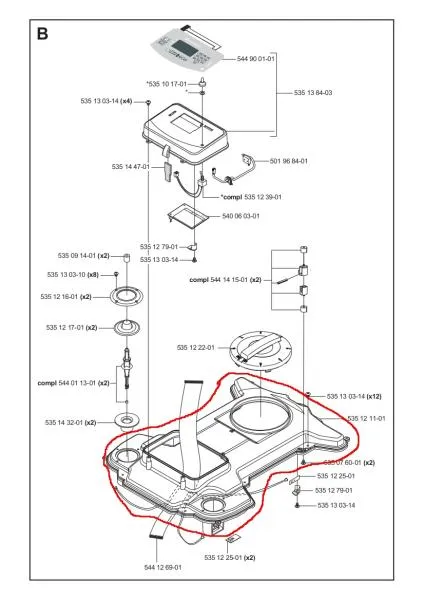

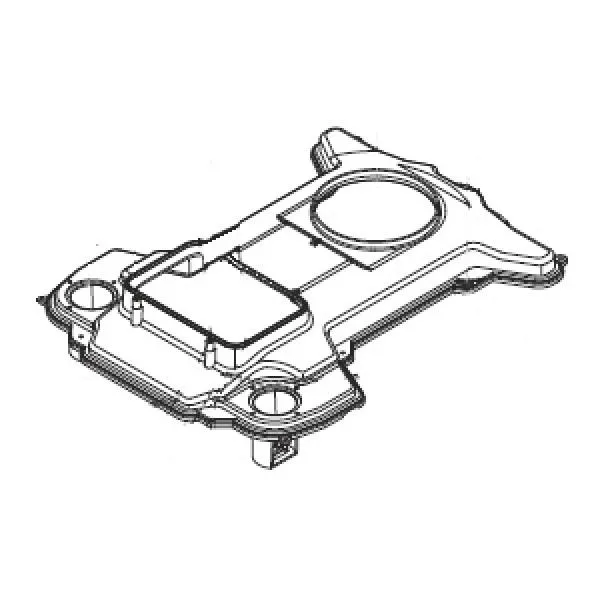

Upper body / Upper chassis (Frame Set Upper) – 5064940-01
Genuine Husqvarna upper body (upper chassis cover) for Automower G2 and Automower Solar Hybrid. A good choice if the top housing is cracked, warped or heavily worn.
- Genuine spare part: 506494001 (MPN 5064940-01)
- Colour: Grey
- Version for grease sealing (typically 2004–2009)
- Proven replacements: 5351211-01 / 535121101
- EAN/GTIN: 7391883205426
Technical
- Weight: 623 g
- Dimensions: 560 × 415 × 130 mm (L × W × H)
- Parts group: Chassis & housing parts
Installation
The upper part is screwed onto the chassis. Before ordering, verify your sealing type (grease vs. rubber) and model year.
On older lower housings (approx. 2004–2007) a few screw holes may remain unused.
- Check model year / G2 generation
- Compare grease vs. rubber sealing (from ~2010 often rubber)
- Clean sealing surfaces before fitting
Compatibility
| Model | Matching part numbers / MPN | Replaces (proven) | Note / version |
|---|
- Automower G2 – 2003–2006
- Automower 210C – 2007–2010
- Automower 220AC – 2007–2009
- Automower 230ACX – 2007–2009
- Automower 260ACX – 2009
- Automower Solar Hybrid – 2008–2010
| 5064940-01, 506494001, 506 49 40-01, 5064940, 50649400, 50649400X, 7391883205426, AM506494001, :A506494001 | 5351211-01, 535 12 11-01, 535121101 | G2 version for grease sealing (2004–2009); from ~2010 often rubber sealing |
Important: Without model year/sealing verification, fitment issues may occur.
• Genuine Husqvarna upper housing (G2)
• MPN 5064940-01 / part no. 506494001
• Colour: grey
• Replaces: 5351211-01 / 535121101
• Approx. 623 g; 560 × 415 × 130 mm
