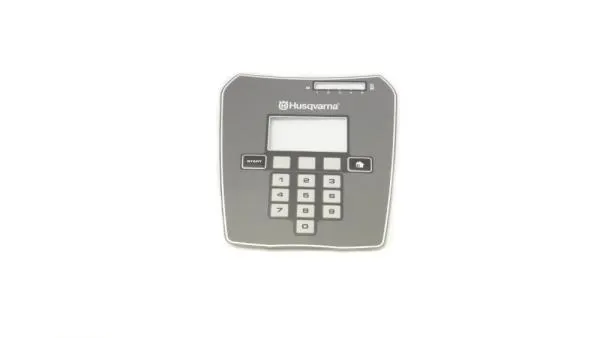

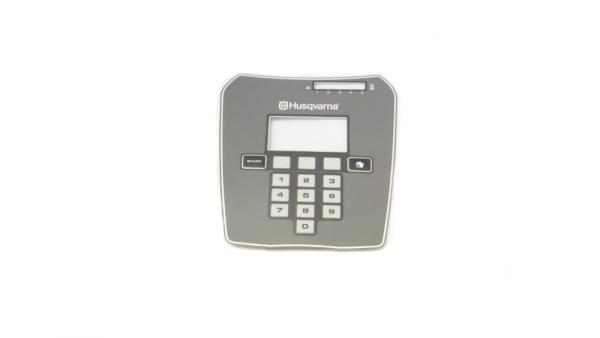

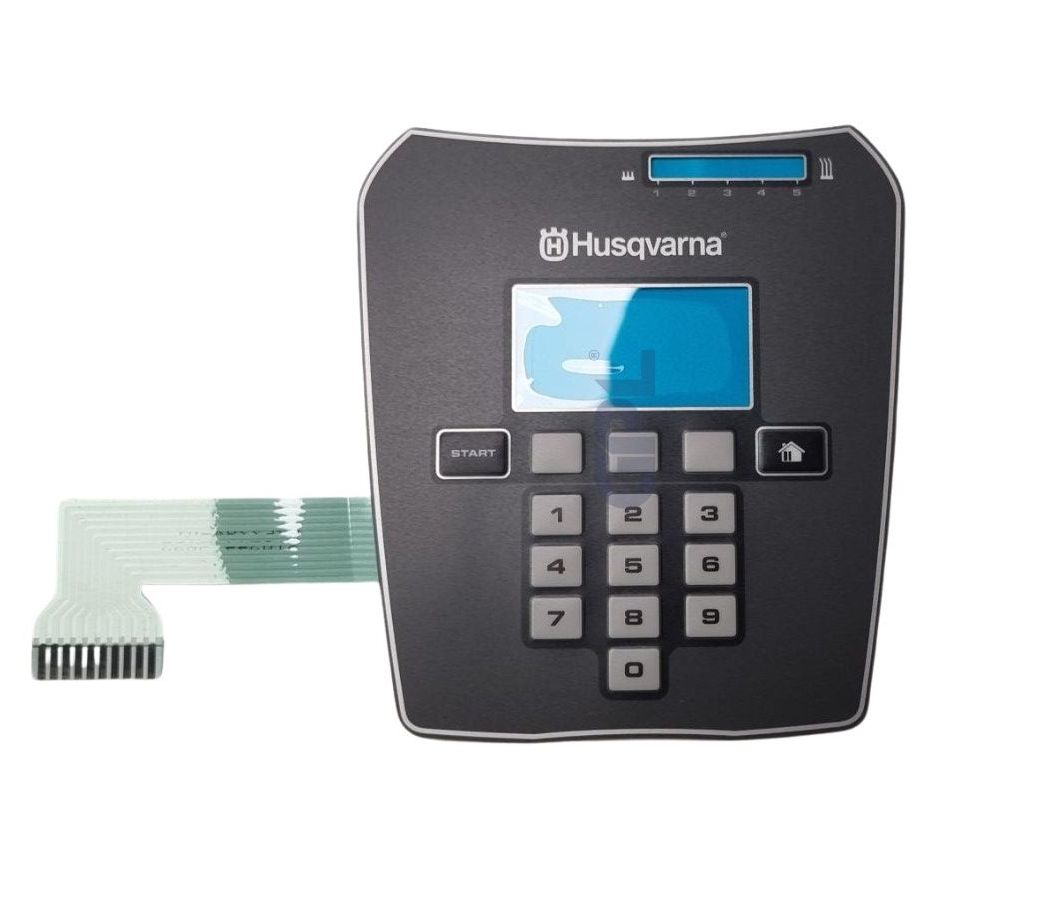

Husqvarna Automower keypad membrane (keyboard) G3 P1 5757794-01
Original keypad membrane (keyboard) for Husqvarna Automower 105/305/308 (G3 P1). Ideal if buttons do not respond or the keypad foil is damaged.
- Genuine Husqvarna spare part (MPN 5757794-01)
- Fits Automower 105 (from 2016), 305 (up to 2015), 308
- Dimensions: 208×136×2 mm, weight: 30 g
- Replacement possible without a software update (model dependent)
Technik
- Manufacturer no.: 575779401
- EAN/GTIN: 7391883658390
- Size: 208 mm × 136 mm × 2 mm
Einbau
Switch off the mower and open the cover/control panel according to the service manual.
Remove the old foil, clean the surface and align the new keypad membrane without tension.
- Clean sealing surfaces to prevent moisture ingress
- Apply on dry, grease-free surfaces only
- Test all buttons in the menu after installation
Kompatibilität
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Automower 105 – 2016–2023
- Automower 305 – 2011–2015
- Automower 308 – 2013–2015
| - 5757794-01
- 575779401
- 575 77 94-01
- 575 77 94 01
| — | G3 P1 |
Important: Check model year and platform (G3 P1); different upper housings may use a different keypad membrane.
• Genuine Husqvarna keypad membrane (keyboard)
• Fits Automower 105/305/308 (G3 P1)
• MPN 5757794-01 / 575779401
• Dimensions 208×136×2 mm
• Weight approx. 30 g
