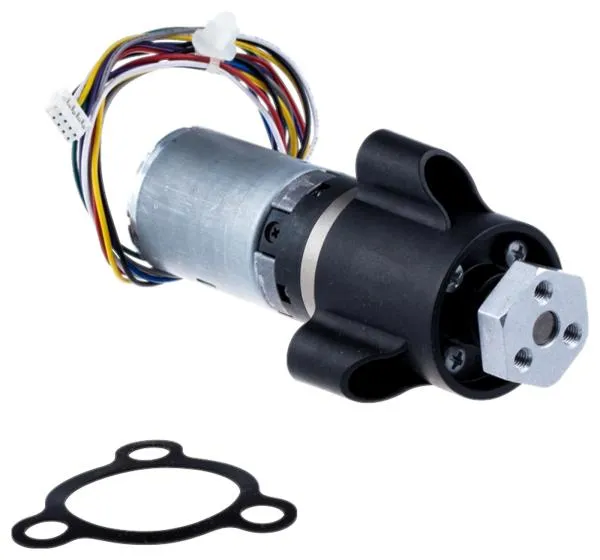

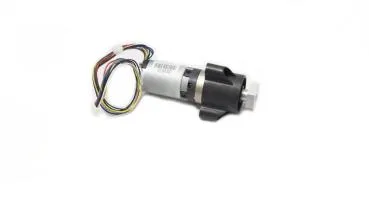

Husqvarna Automower Antriebsmotor (Radmotor) 585 02 46-04

Husqvarna Automower drive motor (wheel motor) 585 02 46-04

Used and tested drive motor for robotic mowers – a good fix when the mower jerks while driving, stops, or one wheel no longer drives smoothly.

• Fits Husqvarna Automower 105/305/308 and selected Gardena, Flymo and McCulloch models (see table)
• MPN/part number: 585 02 46-04 (variants: 5850246-04 / 585024604)
• Part group: Drive & wheels (wheel motor/drive motor)
• Used, inspected and function-tested

Technical

• Platform/generation: G3 / P1
• Motor type (source): Linix
• Weight: 512 g

Installation

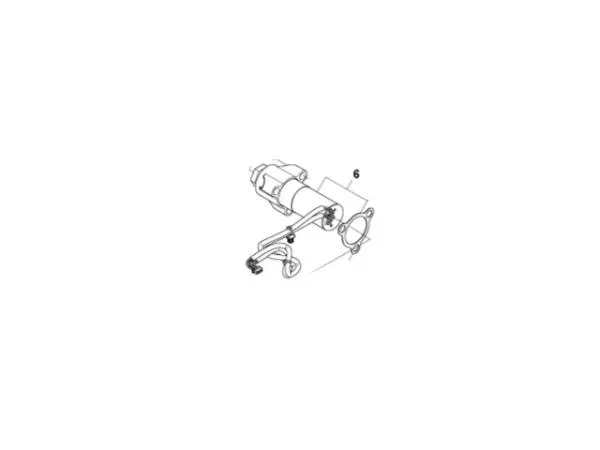

Before installing, check connectors, sealing surfaces and the cable entry. Seals/flange may be listed separately depending on the version.

After replacement, run a short test drive and verify smooth wheel drive.

• Match model year using the table
• Check sealing around the motor flange
• Route the cable as original, avoid pinching

Compatibility

Modell	Passende Artikelnummern/MPN	Ersetzt (belegt)	Hinweis/Version
Husqvarna Automower 105 – 2016→ Husqvarna Automower 305 – 2011–2015 Husqvarna Automower 308 – 2013–2015 Flymo 1200R – 2013; 2016–2017 Gardena R38Li – 2015–2017 Gardena R40Li – 2012→ Gardena R45Li – 2013→ Gardena R50Li – 2015→ Gardena R70Li – 2013→ Gardena R80Li – 2015→ McCulloch Rob R600 / Rob R1000 – 2017→	585 02 46-04, 585024604, 5850246-04, 585 02 46-03, 585024603, 585 02 46-02, 585024602, 585 02 46-01, 585024601	5778399-05, 577839905, 577 83 99-05, 5778399-04, 577839904, 577 83 99-04, 5778399-02, 577839902, 577 83 99-02, 5778399-01, 577839901, 577 83 99-01, 576151501, 576151502, 576151503, 57615160X, 5778399, 57783990, 577839901, 577839902, 577839903, 577839904, 577839905, 577839906, 577839907, 577839908, 57783990X, 585024601, 585024602, 585024603, 58502460X, 7392930282636, 7393089122330, AM577839901, AM577839902, AM577839903, AM577839904, AM577839905, AM577839906, AM577839907, AM577839908	G3/P1; Radmotor/Antriebsmotor; Dichtung/Flansch je nach Version

Important: Please compare part number and model year, especially across G3/P1 variants and motor flange/seal versions.

• MPN/part number: 585 02 46-04 (5850246-04 / 585024604)
• Part group: Drive & wheels (G3/P1)
• Fits e.g. Automower 105/305/308 and selected Gardena R models
• Used, inspected and function-tested
