Cutting height / height adjustment PCB 5797285-01

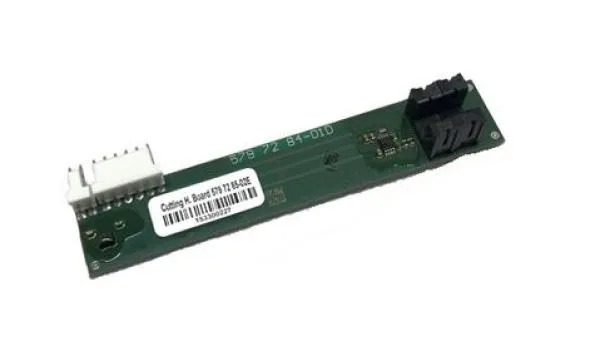

Used, tested PCBA (Cutting Height Board Type 1) for cutting-height/height adjustment on Husqvarna Automower® G3/P2.
- Genuine Husqvarna spare part (MPN 5797285-01)
- Type 1: cutting height / height adjustment circuit board
- Superseded by 5797285-02 (579728502)
- GTIN/EAN: 7393080494115
- Used, cleaned and function-tested
Technical
- Parts group: Electronics & sensors
- Platform/Generation: P2 / G3
- Weight: 145 g
- Pack size: 110 x 110 x 50 mm
Installation

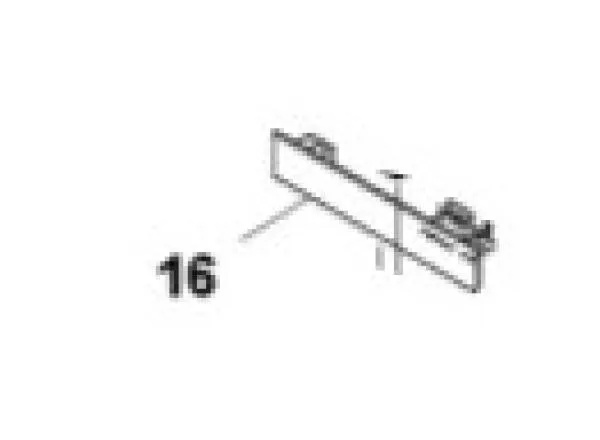

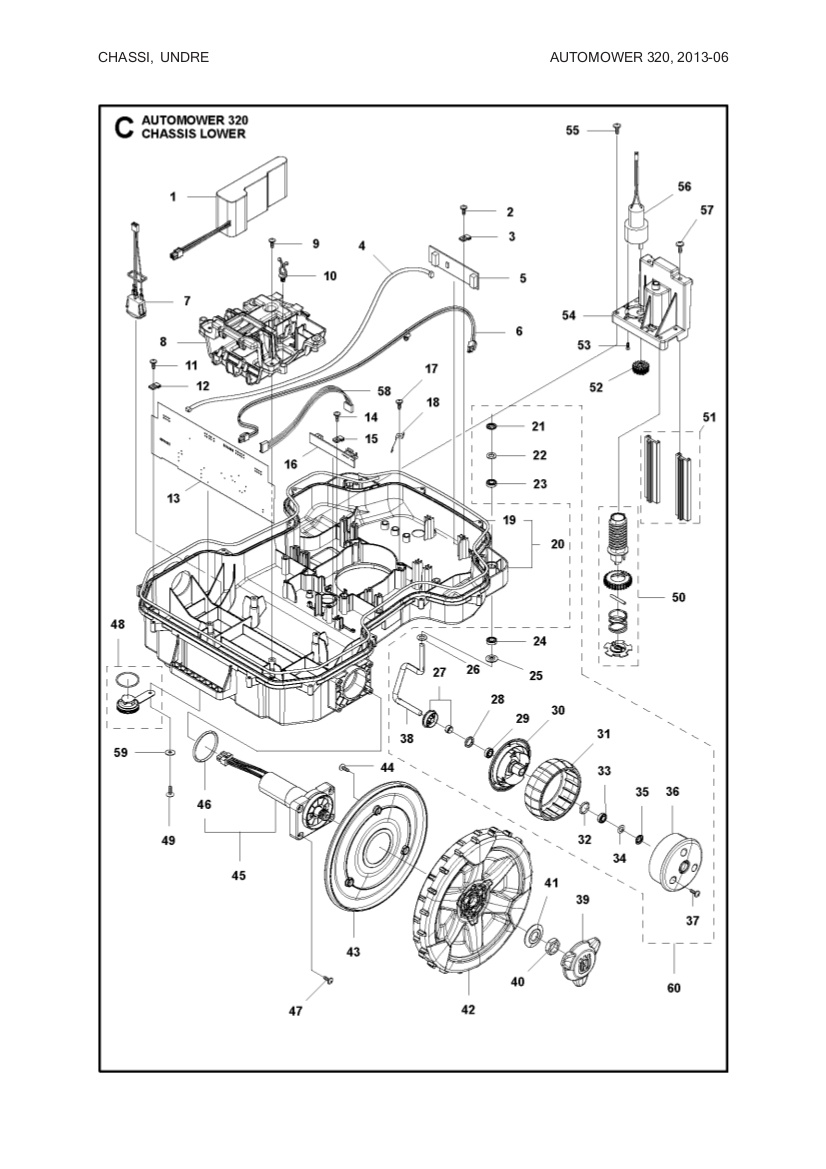

The PCB is located in the height-adjustment area in the lower chassis. Use ESD protection and keep connectors clean.
If your Automower shows wrong cutting height or the height adjustment behaves erratically, this PCBA is a common culprit.
- Check connectors/pinout before installation
- Compare revision (Type 1) with your old board
- Match model/year with the table
- Run a height-adjustment function test after installation
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower® 320 – 2013–2015
- Husqvarna Automower® 330X – 2013–2015
- Husqvarna Automower® 420 – 2016–2023
- Husqvarna Automower® 430X – 2016–2023
- Husqvarna Automower® 430XH USA – 2019–2022
- Husqvarna Automower® 440 – 2017–2022
- Husqvarna Automower® 450X – 2016–2023
- Husqvarna Automower® 450XH USA – 2019–2022
- Husqvarna Automower® 520 – 2018–2023
- Husqvarna Automower® 520 EPOS – 2024–2025
- Husqvarna Automower® 520H EPOS – 2024–2025
- Husqvarna Automower® 550 – 2018–2023
- Husqvarna Automower® 550 EPOS – 2021–2024
- Husqvarna Automower® 550H EPOS USA – 2021–2022
- Husqvarna Automower® 550H USA – 2019–2020, 2022
| 5797285-01, 579728501, 579 72 85-01 | 5797285-02, 579728502, 579 72 85-02 | PCBA Cutting Height Board Type 1 / Height Adjustment; GTIN 7393080494115 |
Important: Always compare the part number on your old board (5797285-01 / 579728501). Depending on revision, 5797285-02 may be the suitable replacement.
• Genuine Husqvarna PCBA for cutting-height/height adjustment (Type 1)
• Fits many Automower® G3/P2 models (e.g., 320, 330X, 420, 430X, 440, 450X, 520, 550)
• Superseded by 5797285-02 (579728502)
• Used, tested and function-checked
• GTIN/EAN 7393080494115; weight 145 g
